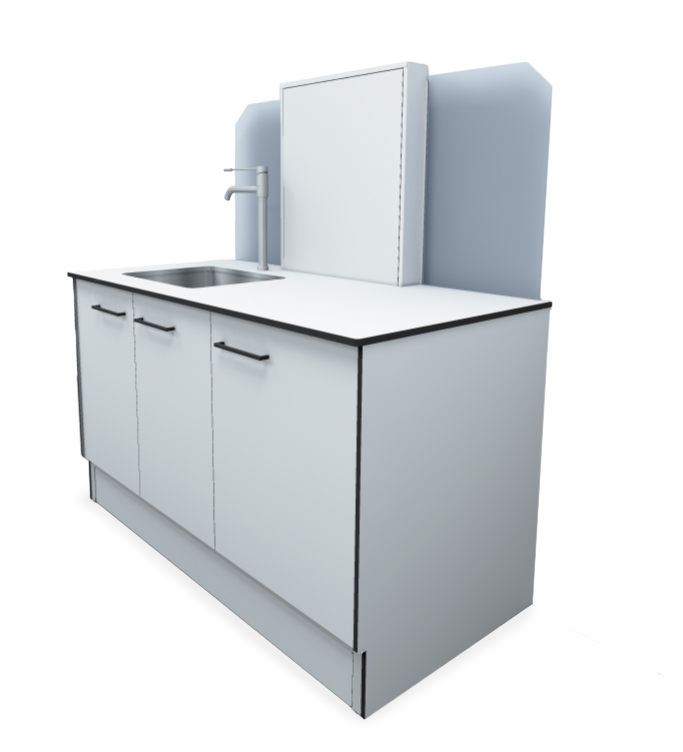

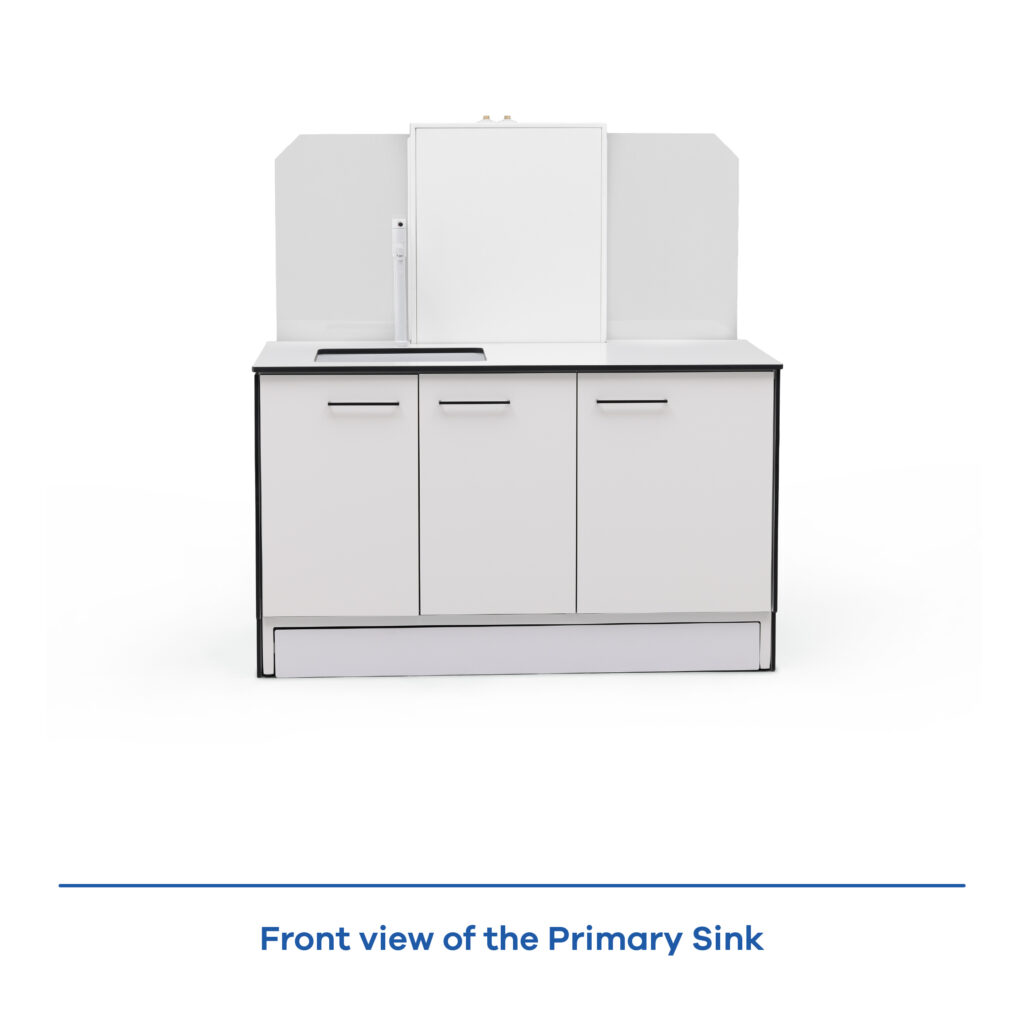

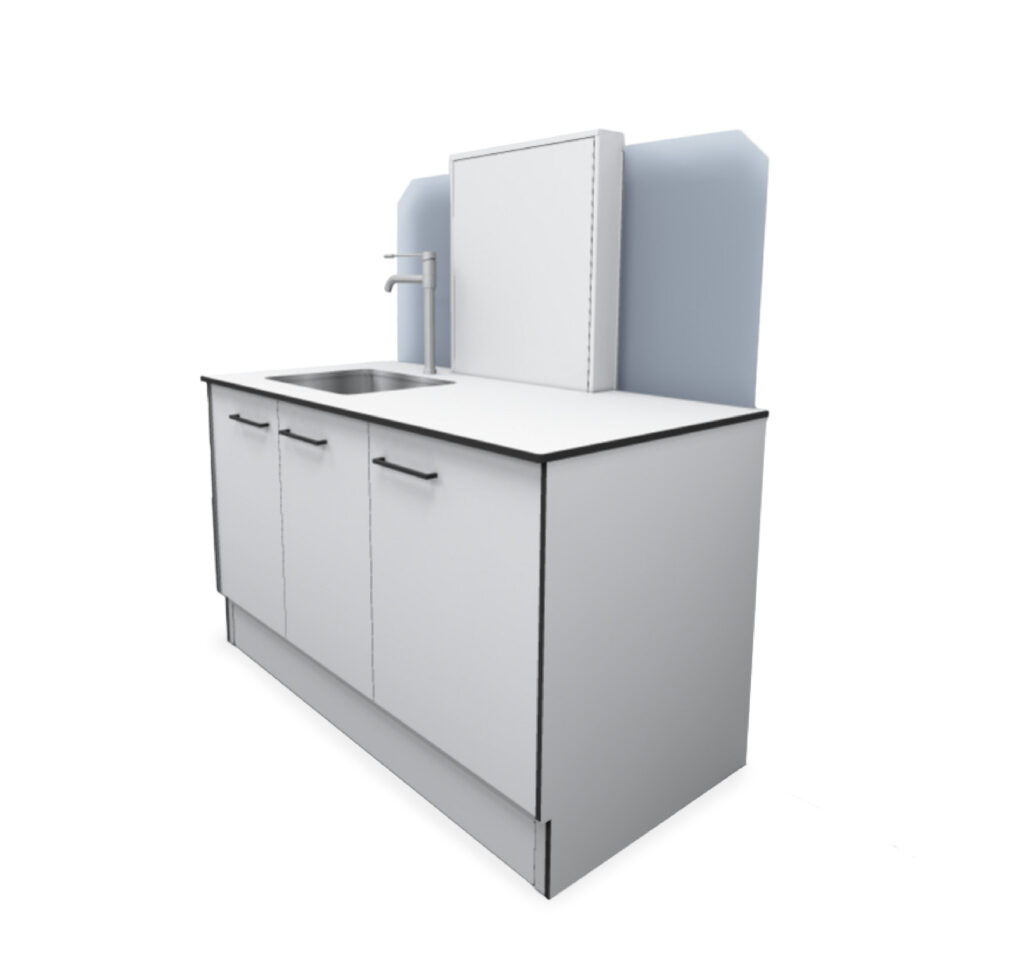

SINK

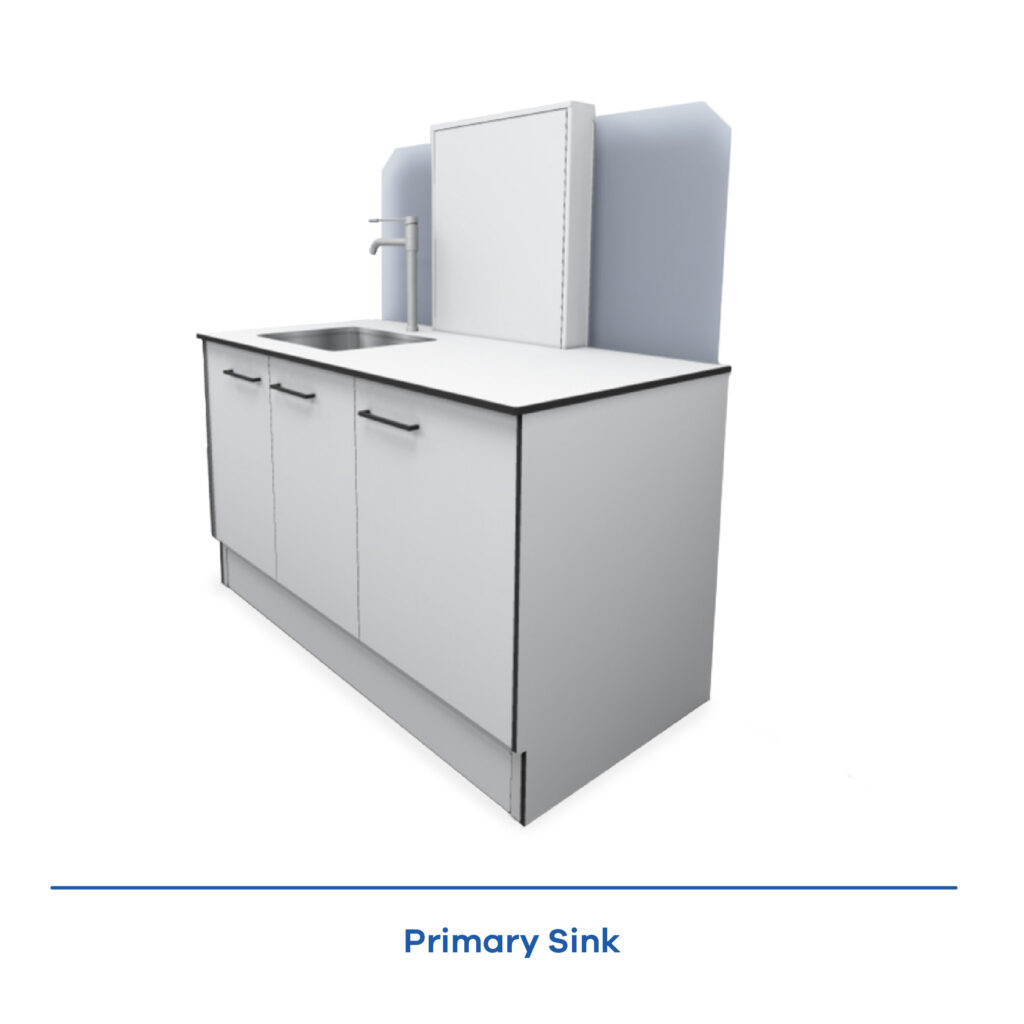

PRIMARY
Product specifications
Choose from a range of configurations, starting with a customized sink tailored to your space.
Widths (mm)
• 1.500 mm
• 1.200 mm
• 900 mm
• 800 mm
Doors (per width)
• 3 (1.500 mm)
• 2 (1.200 mm)
• 2 (900 mm)
• 1 (600 mm)
Depths (mm)
• 600 mm
• 750 mm
• 900 mm
Worktop heights (mm)
• 900 mm
Column heights (mm)
• 1.570 mm
• UP TO CEILING

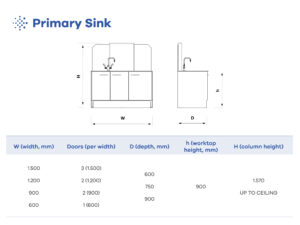

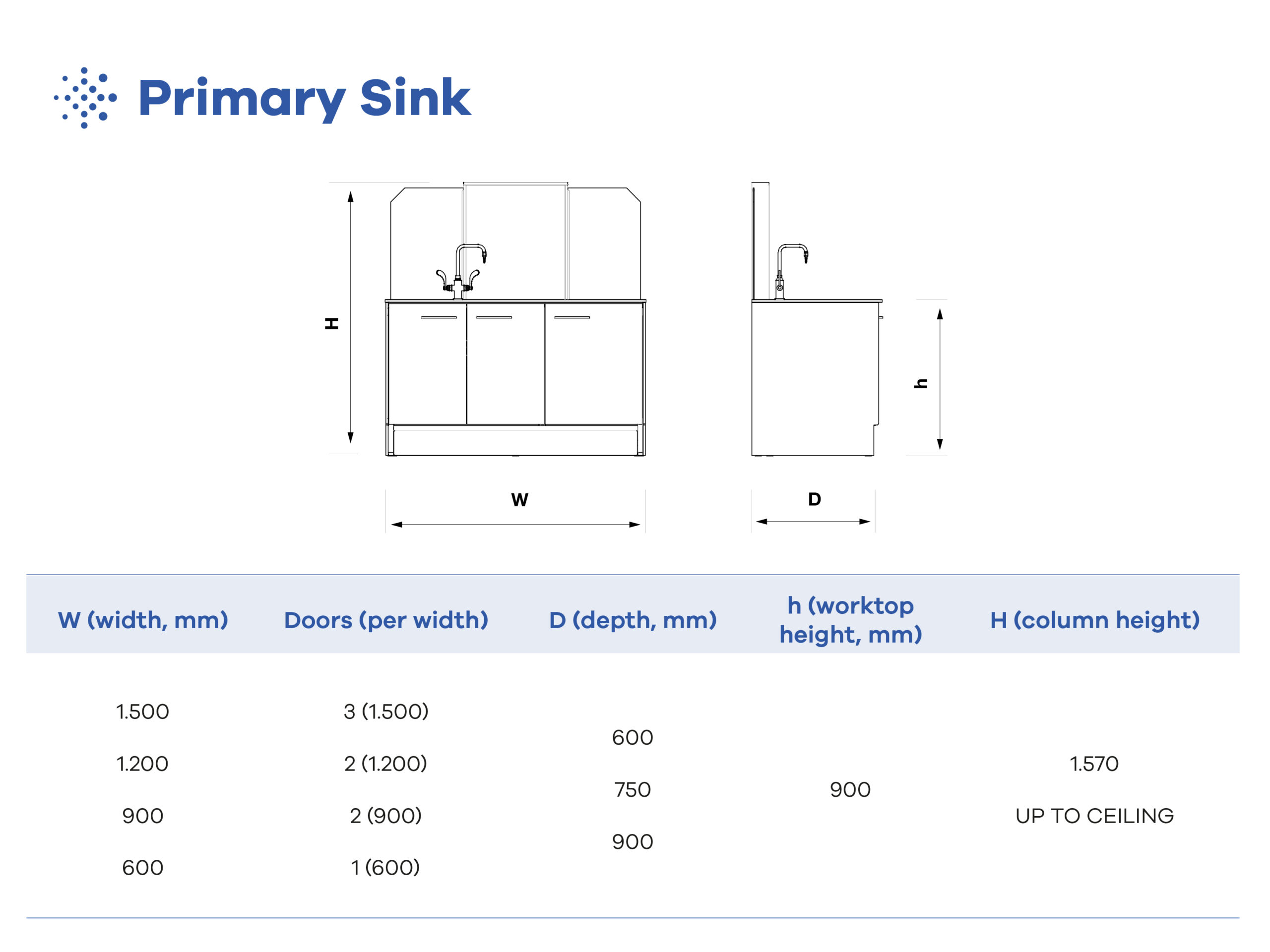

Click to view technical sheet detail

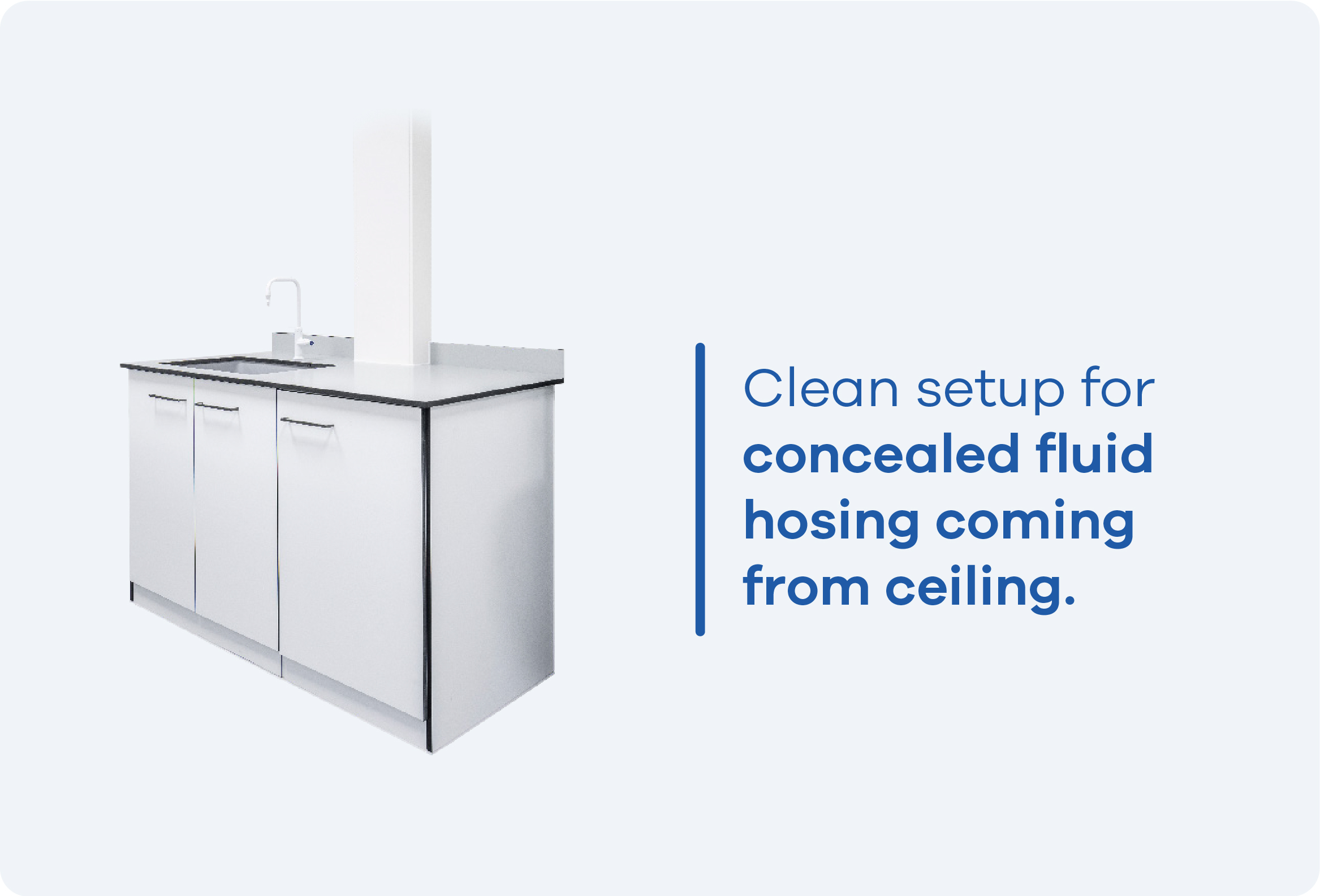

- Fluids can be installed on worktop or at column front face (if present)
- Designed for a quick installation on site.
- A simple electrical setup can be installed at column on demand.
- Main core frame fully welded steel, epoxy coated 9010 (check other options).
- Columns (if present) manufactured in metal sheet steel tube bolted to main frame, epoxy coated 9010 (check other options). Size on demand.

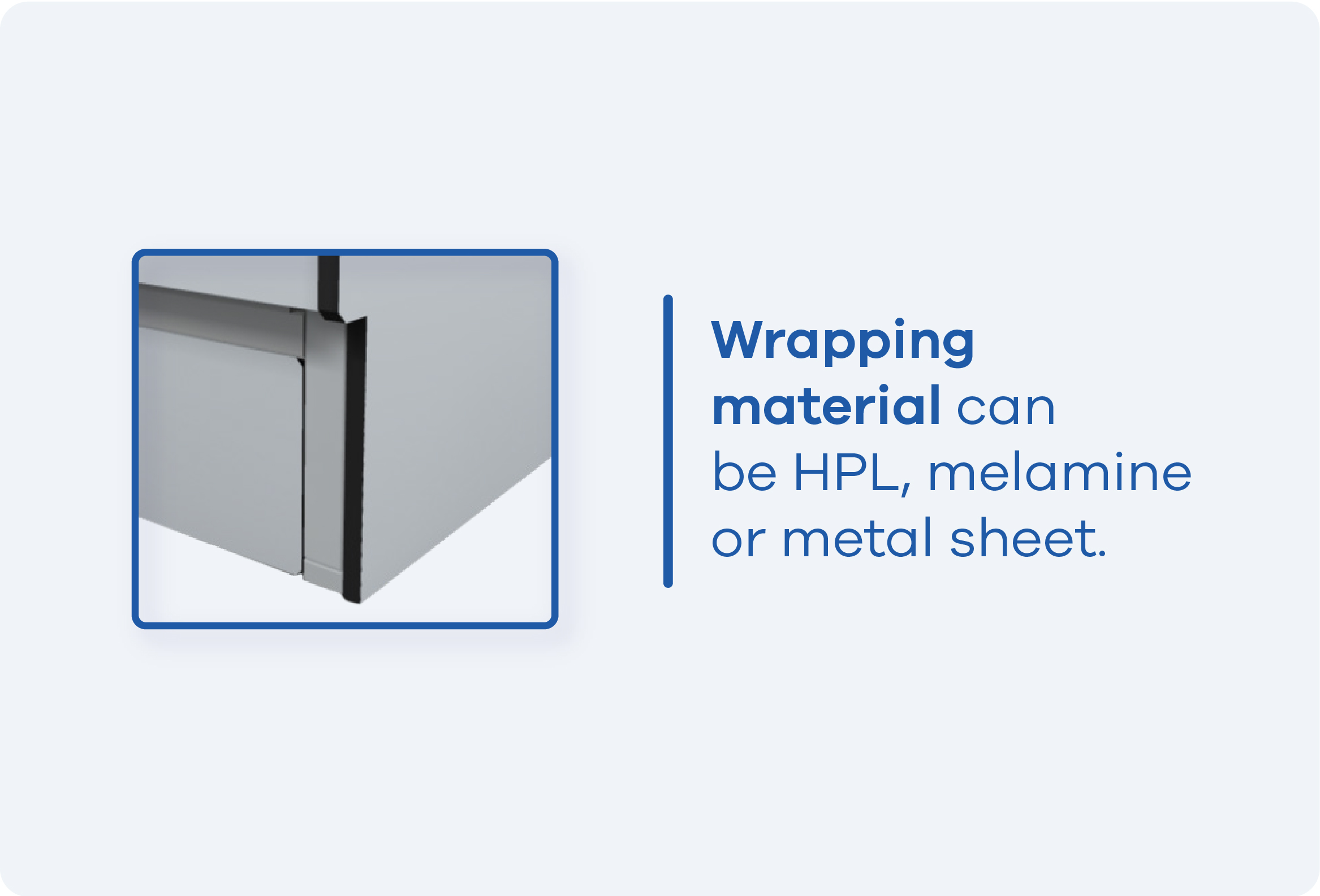

- Outer panelling on demand (HPL, melamine, metal sheet).
- Worktop material on demand.

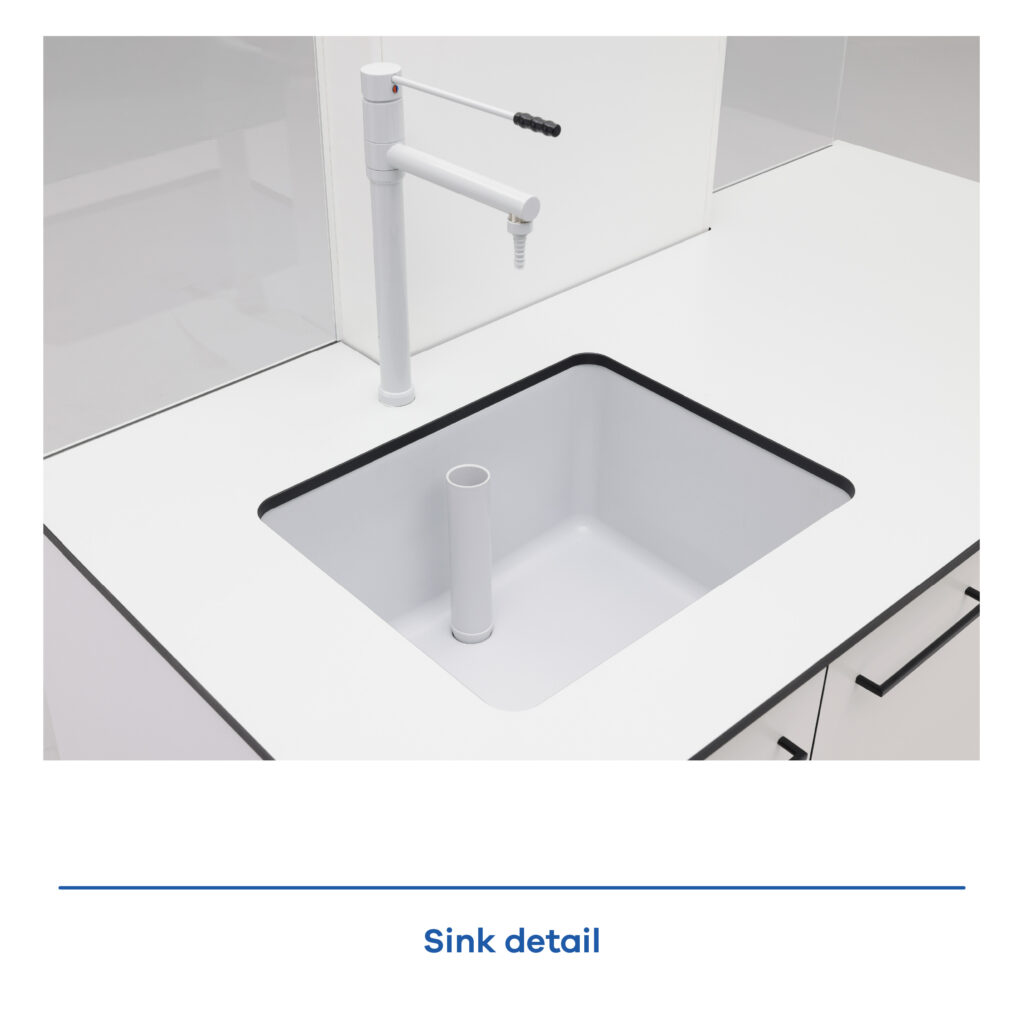

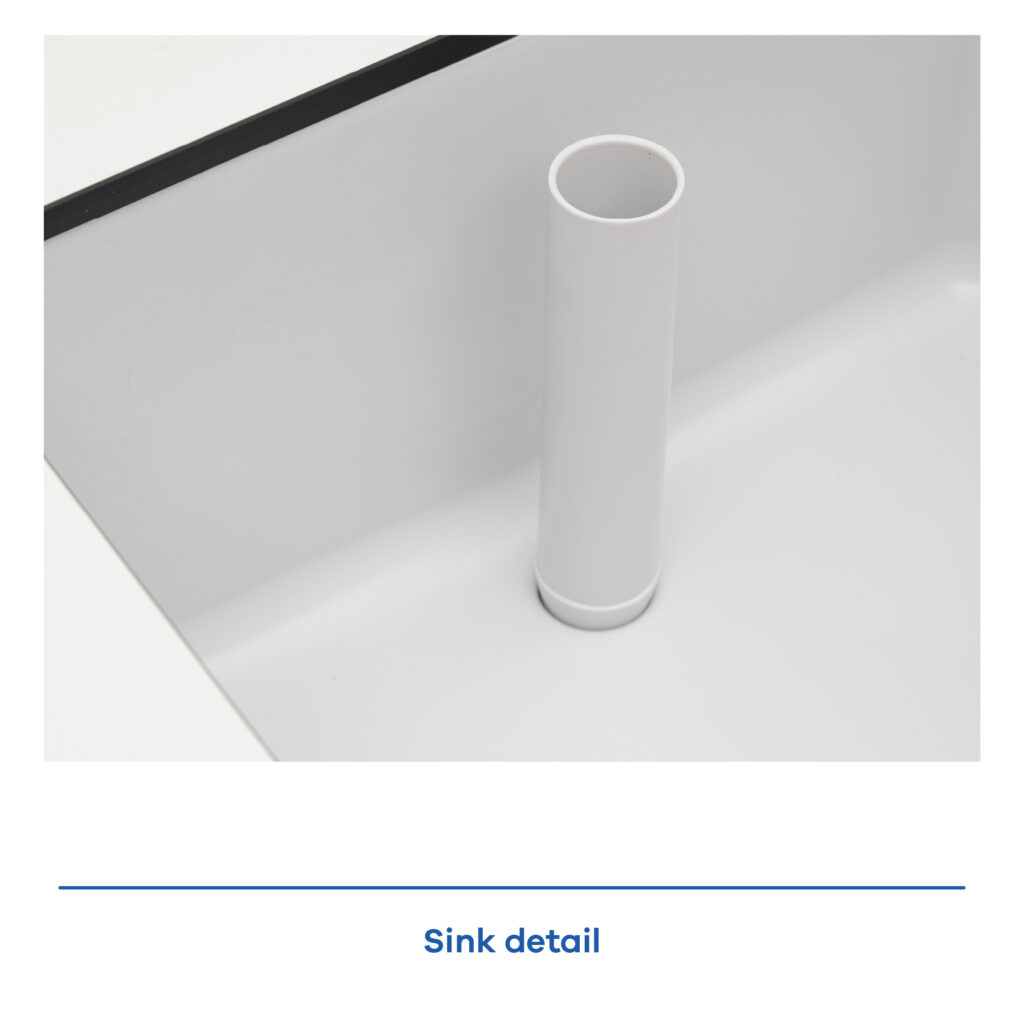

- Sink material on demand.
- Feet, articulated with rubber base.

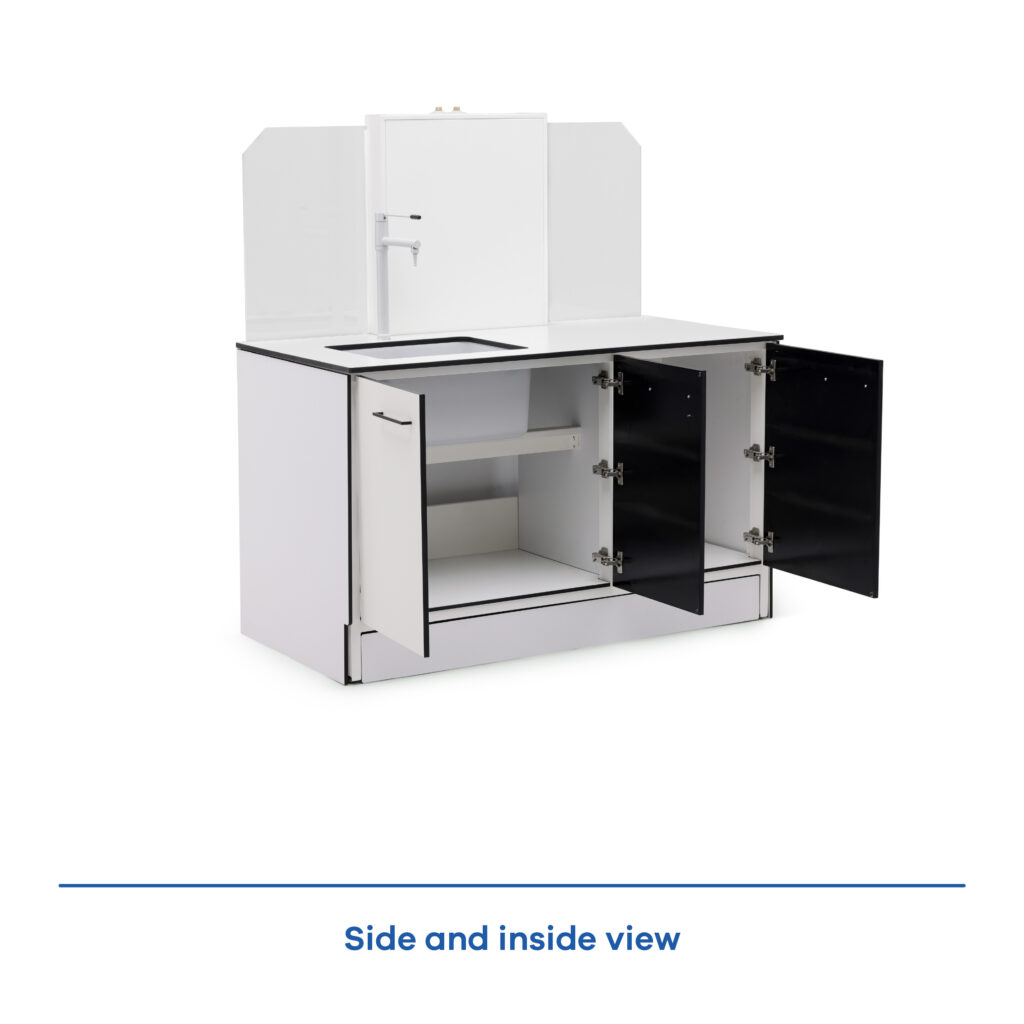

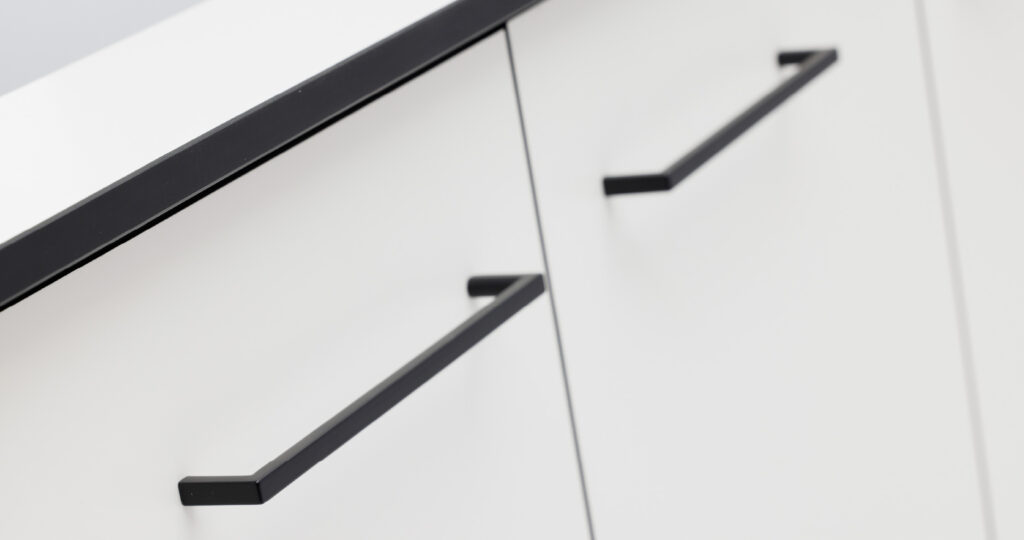

- Soft closing hinges opening 165º.

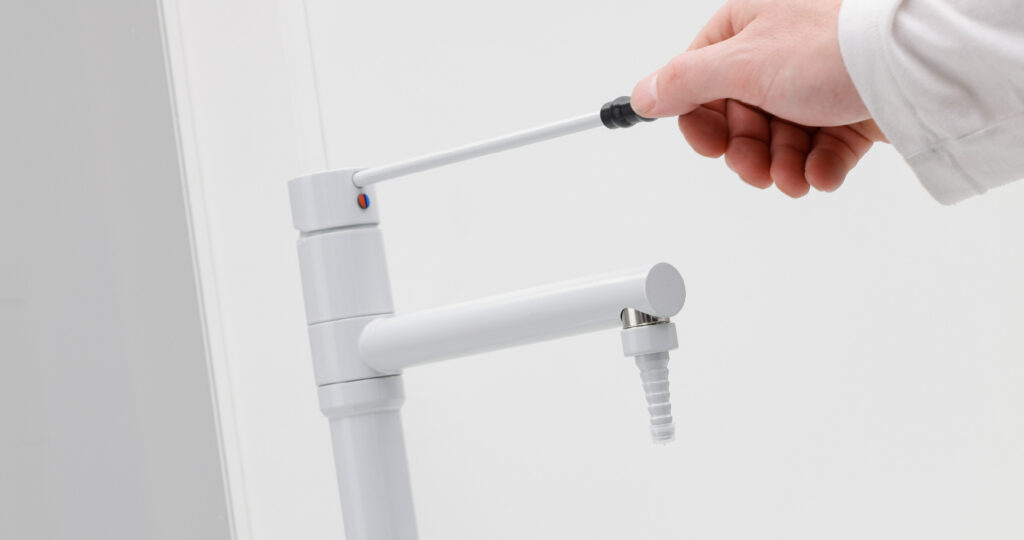

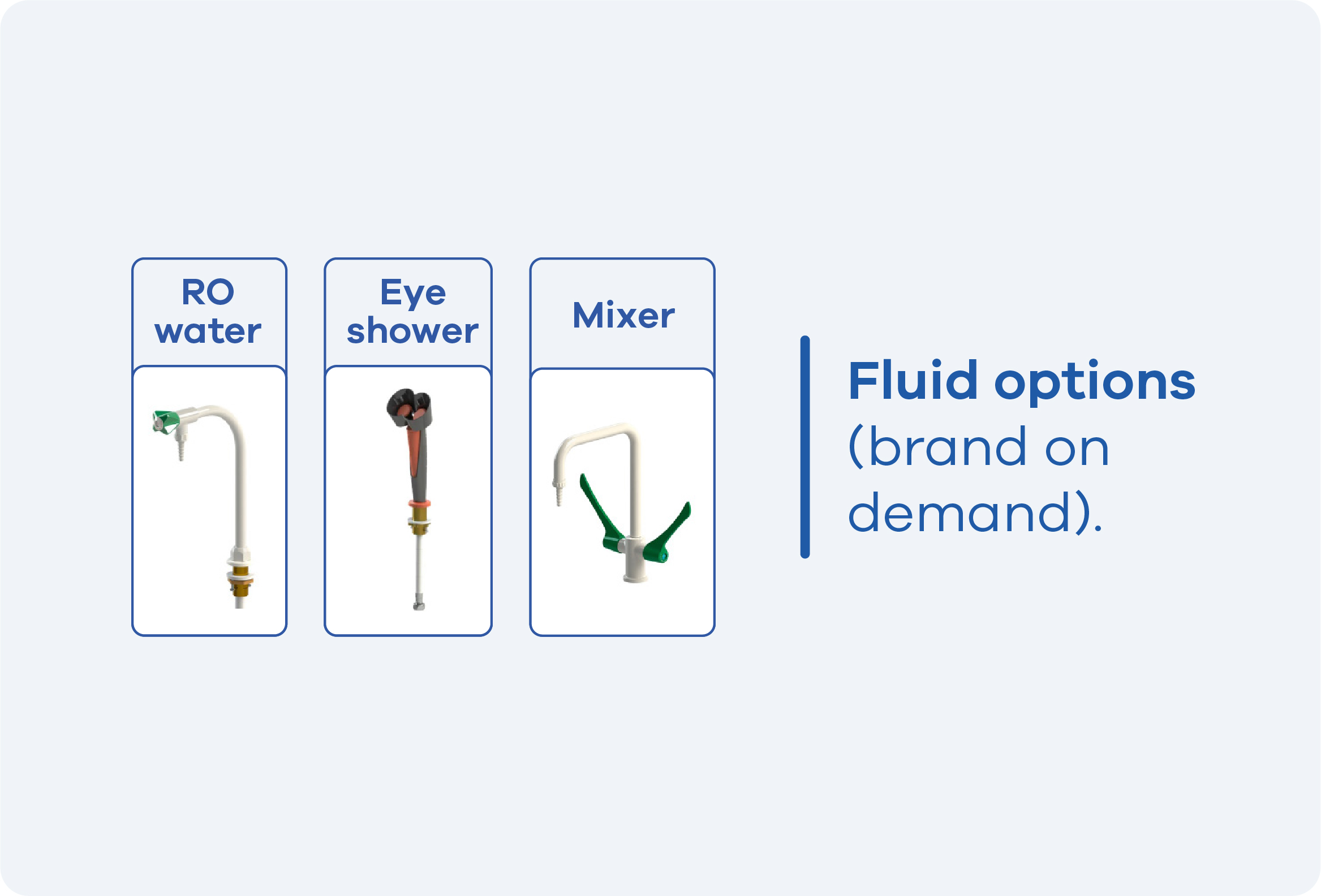

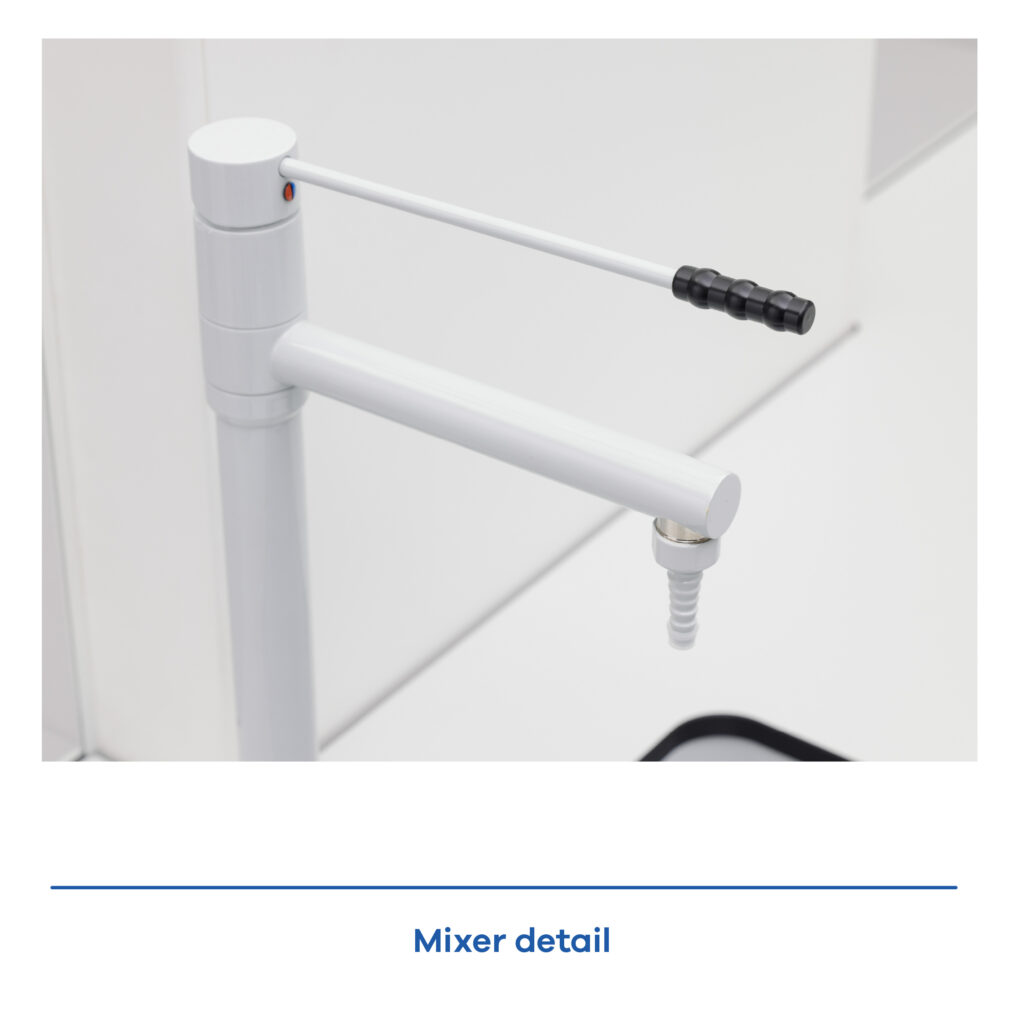

- Fluids on demand (water mixer, eye shower, RO water).
- Electrical setup up to 2 power sockets can be installed at column (if present). Additionally, circuit breaker setup on demand.
Contact us at:
hello@ibr-innovasystem.com
for any special configuration or in case you need a specific type of accesory.
