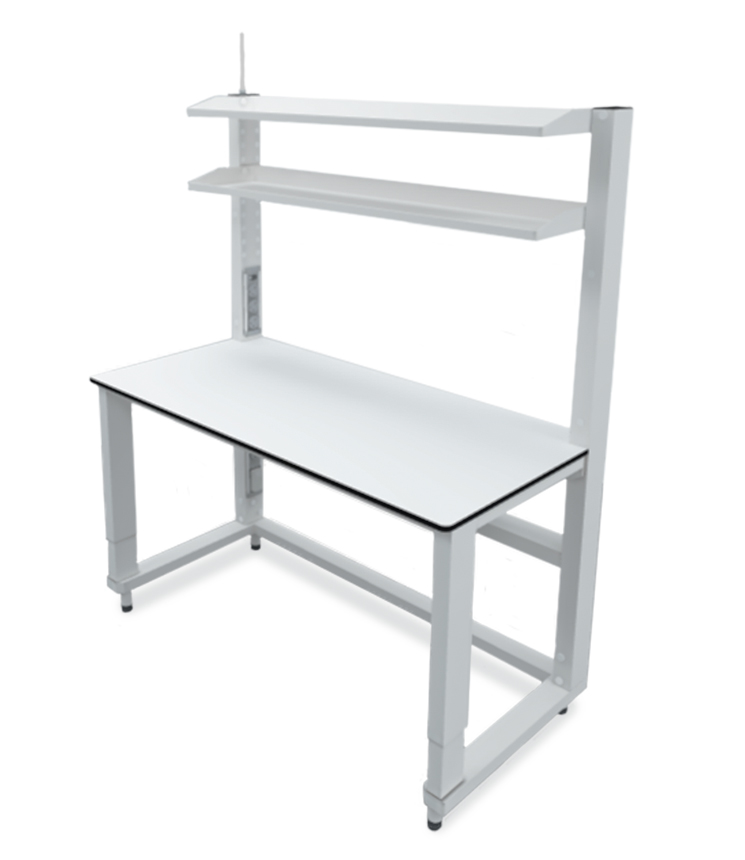

WORKSTATION

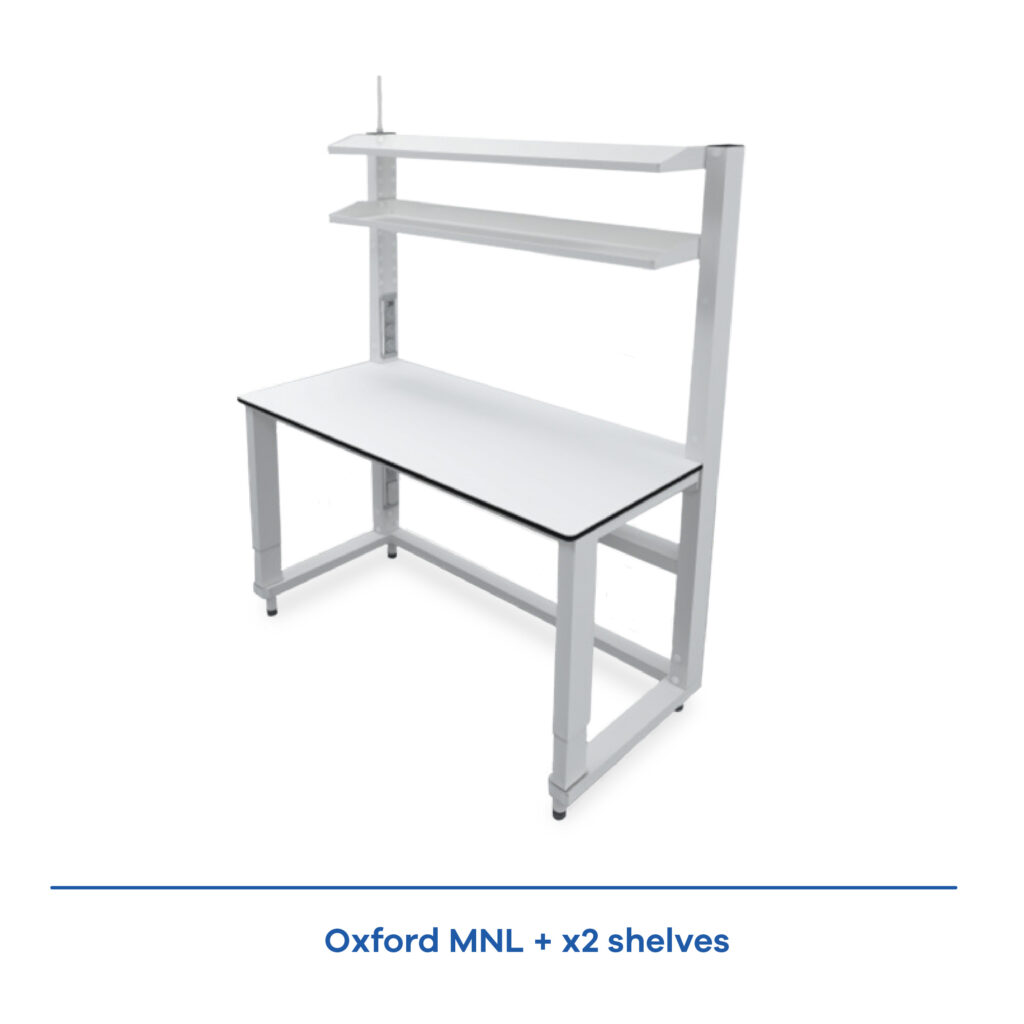

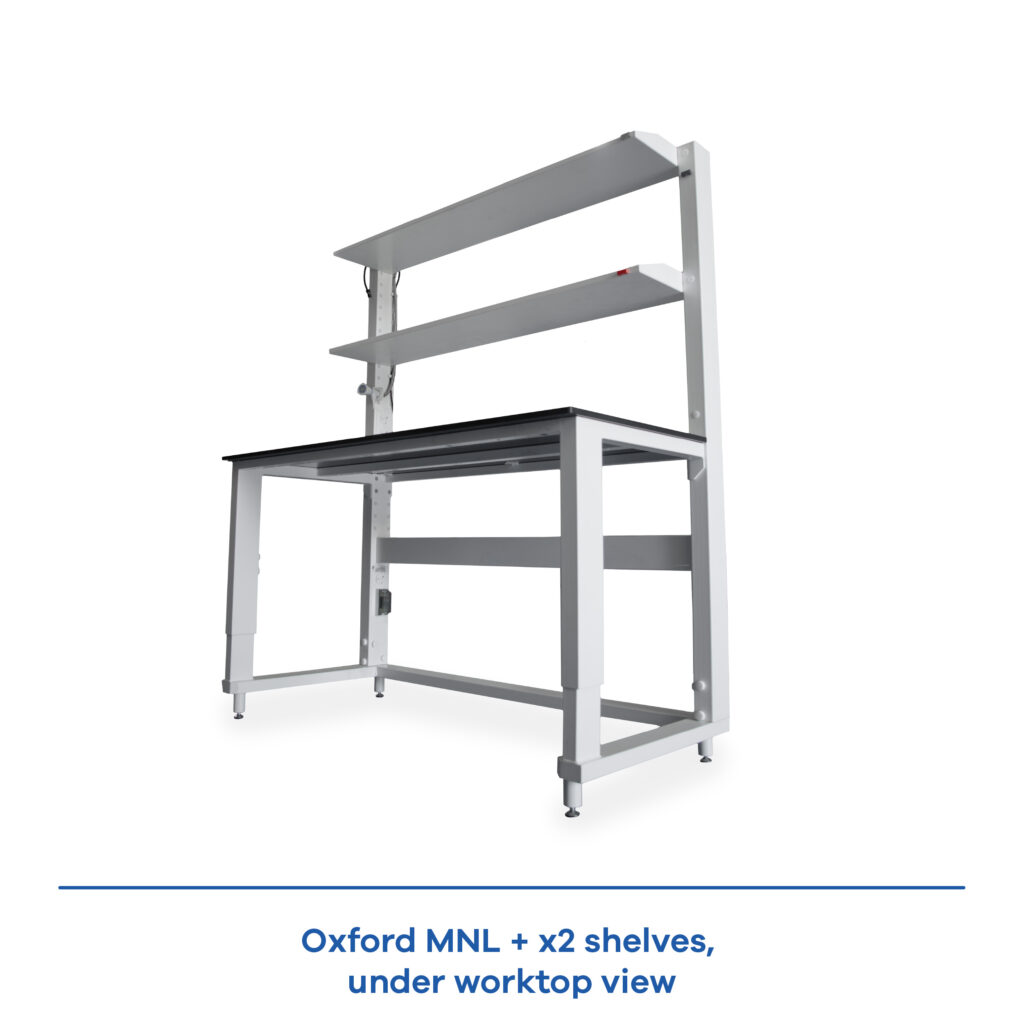

OXFORD MNL
Product specifications
Choose from a range of configurations, starting with a customized workstation tailored to your space.

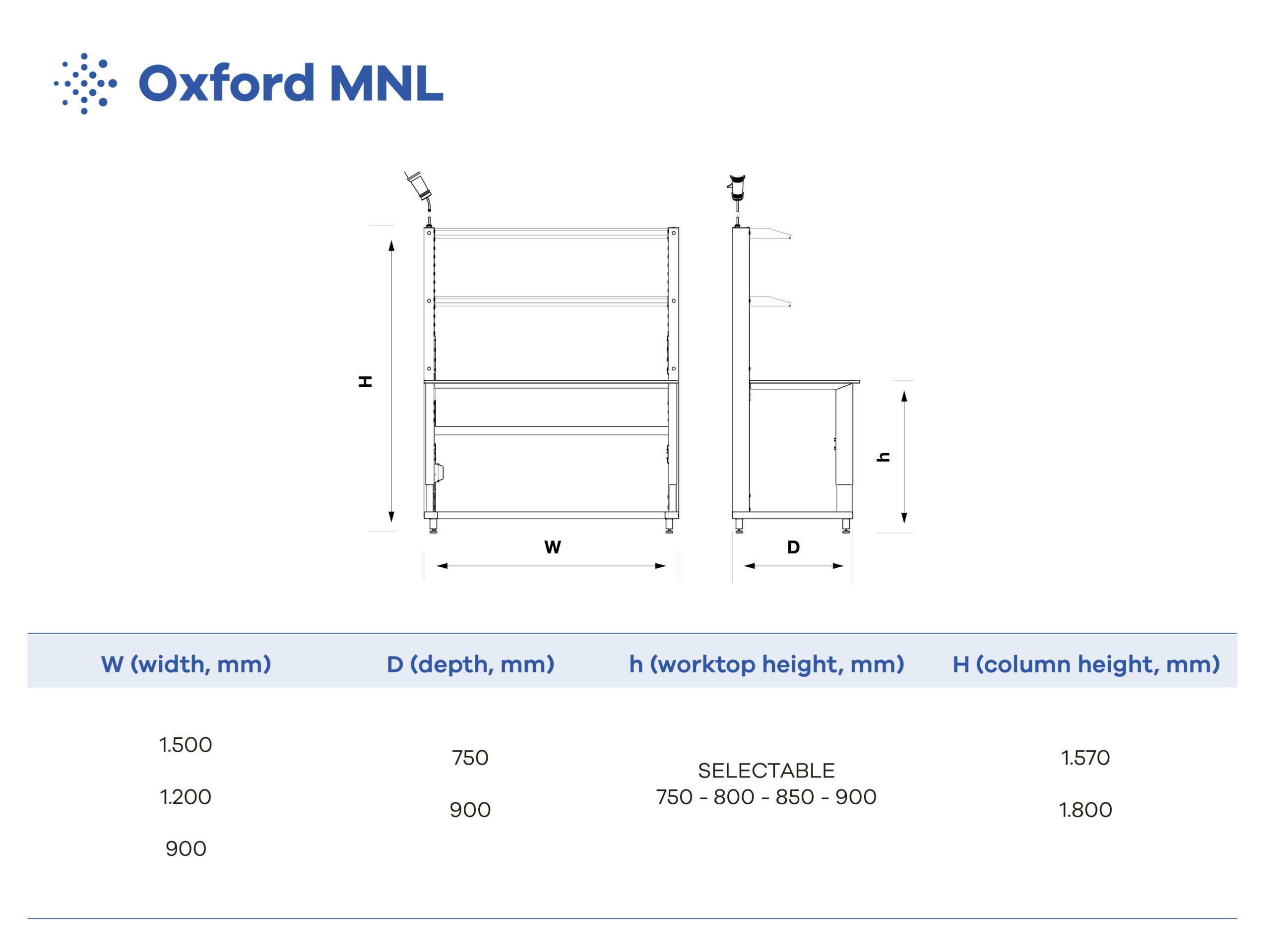

Widths (mm)
• 1.500 mm
• 1.200 mm
• 900 mm
Depths (mm)
• 750 mm
• 900 mm

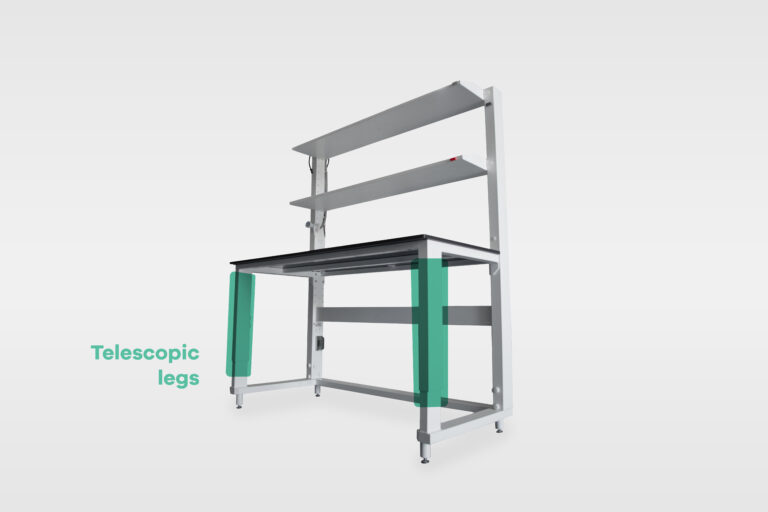

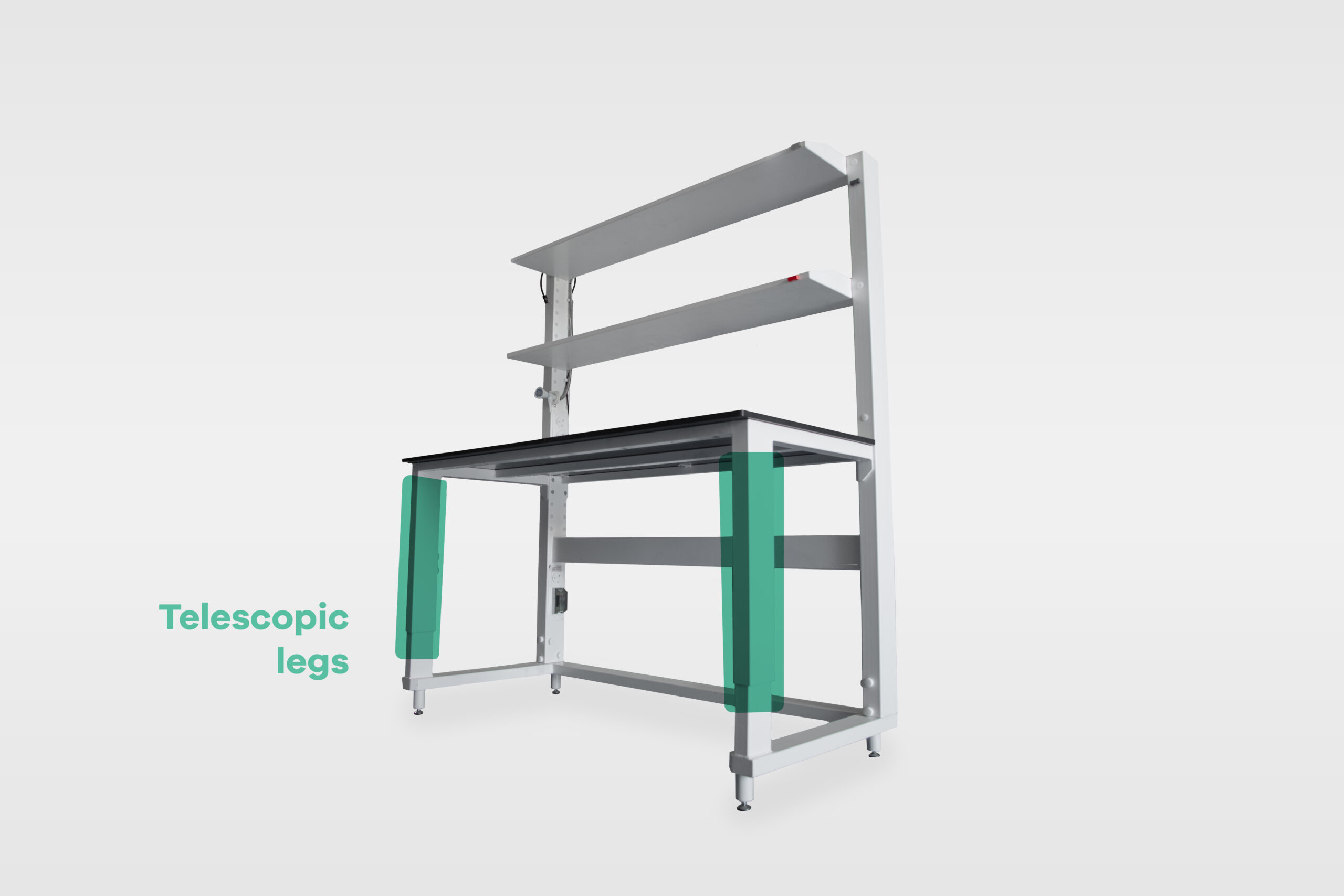

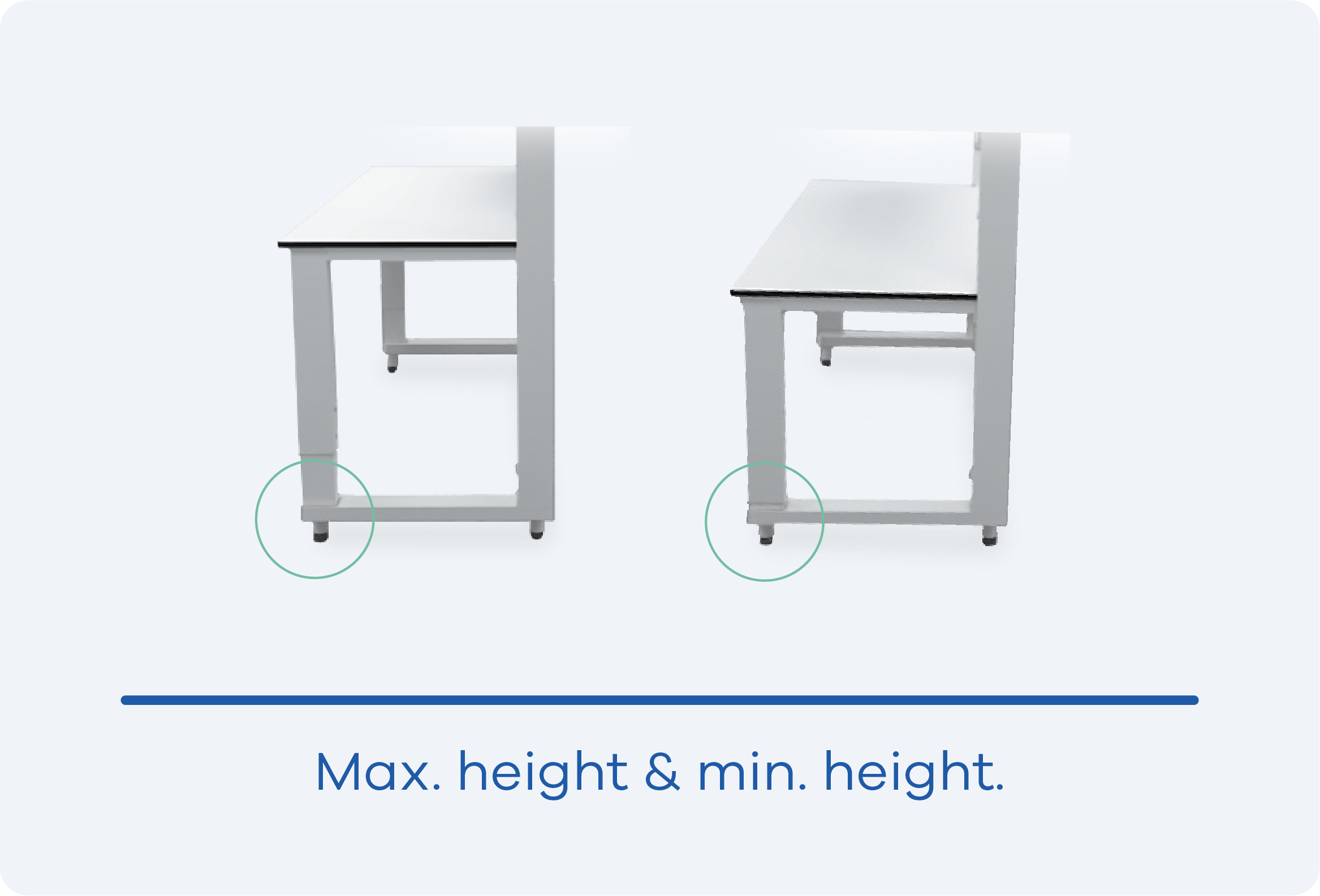

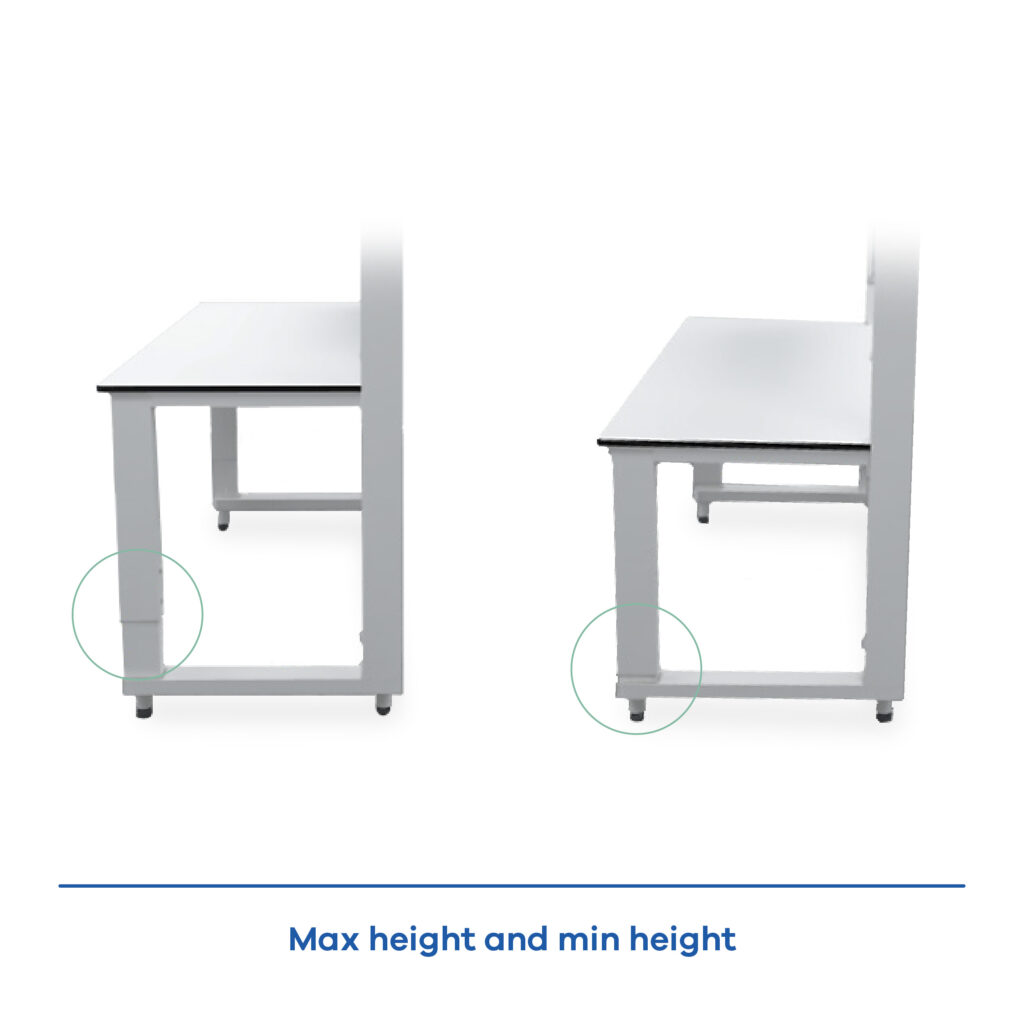

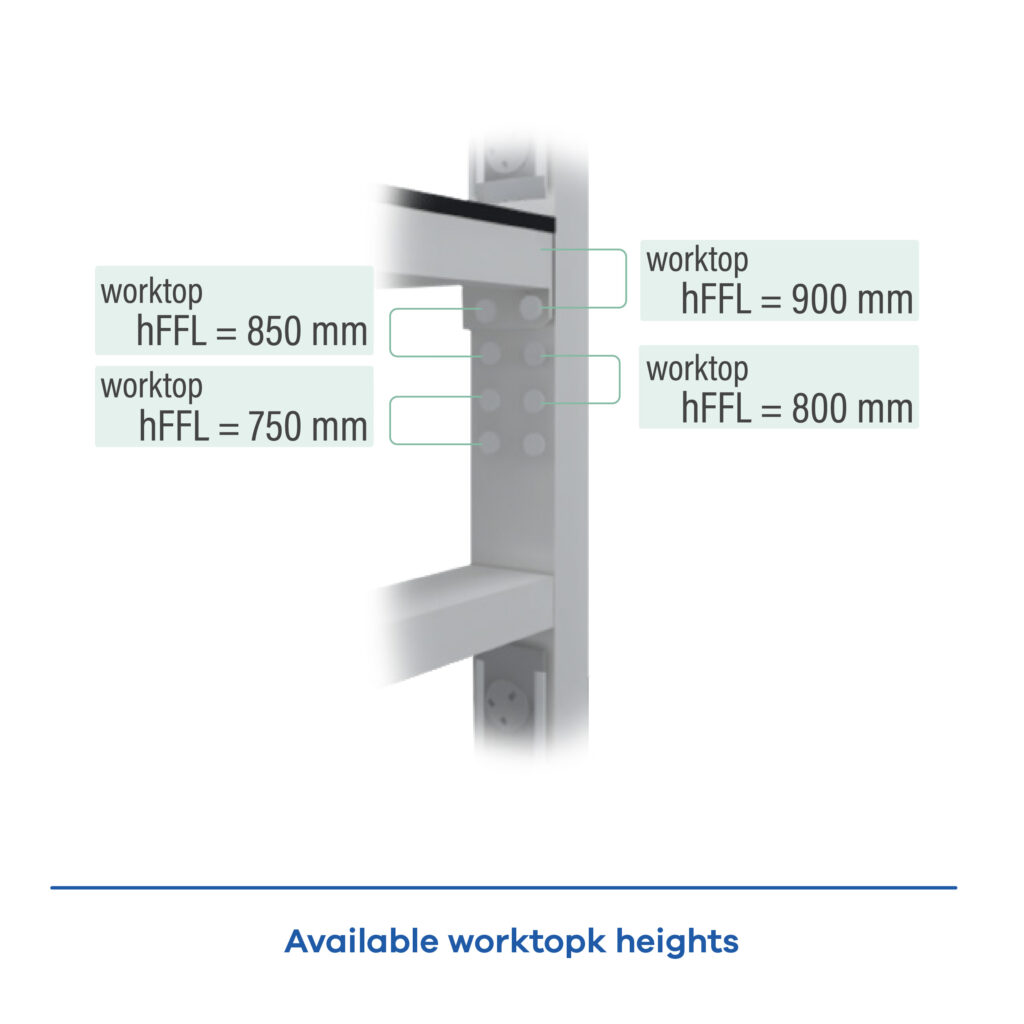

Worktop heights (mm)
SELECTABLE:

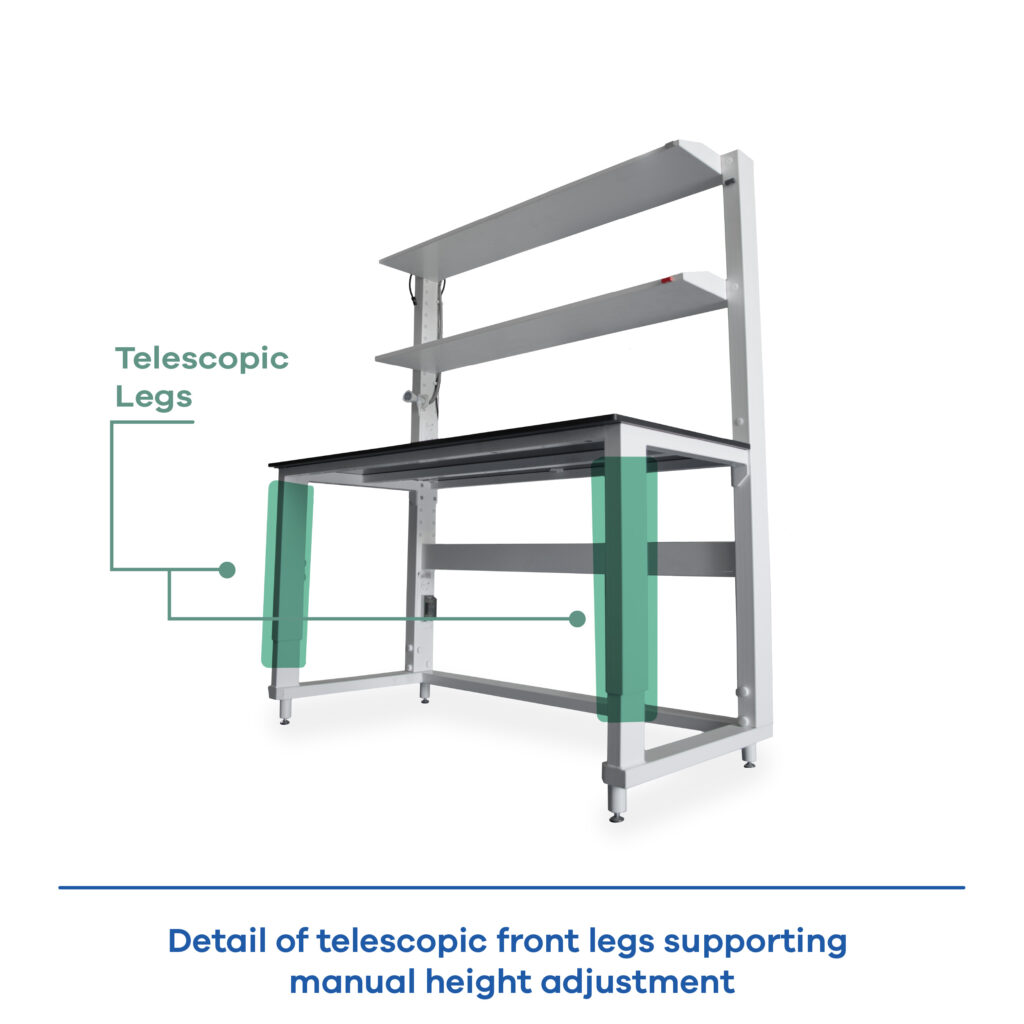

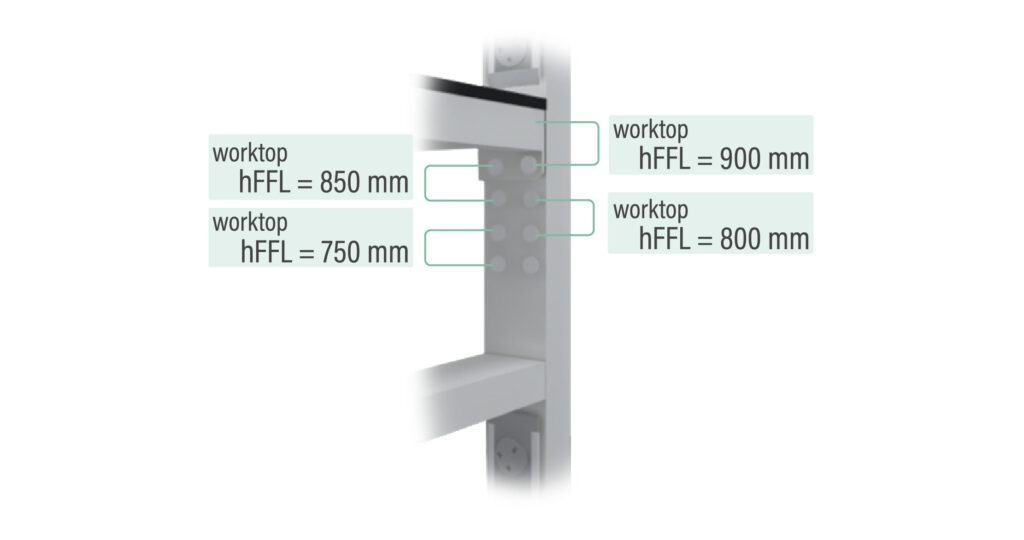

• 750 – 800 – 850 – 900 mm
Column heights (mm)
• 1.570 mm
• 1.800 mm
Click to view technical sheet detail
- Revit Family available soon
Max. load - 350 kg
- Power supply side can be switched left to right and viceversa. Check accesories pages to see how shelves can be added, removed and changed position.
- Underbench shelf available.
- Gas taps can be attached to column.
- Some other options available.
- In addition, special accesory attachments can be designed and manufactured on demand.
- Base frame fully welded steel, epoxy coated 9010 (check other options).

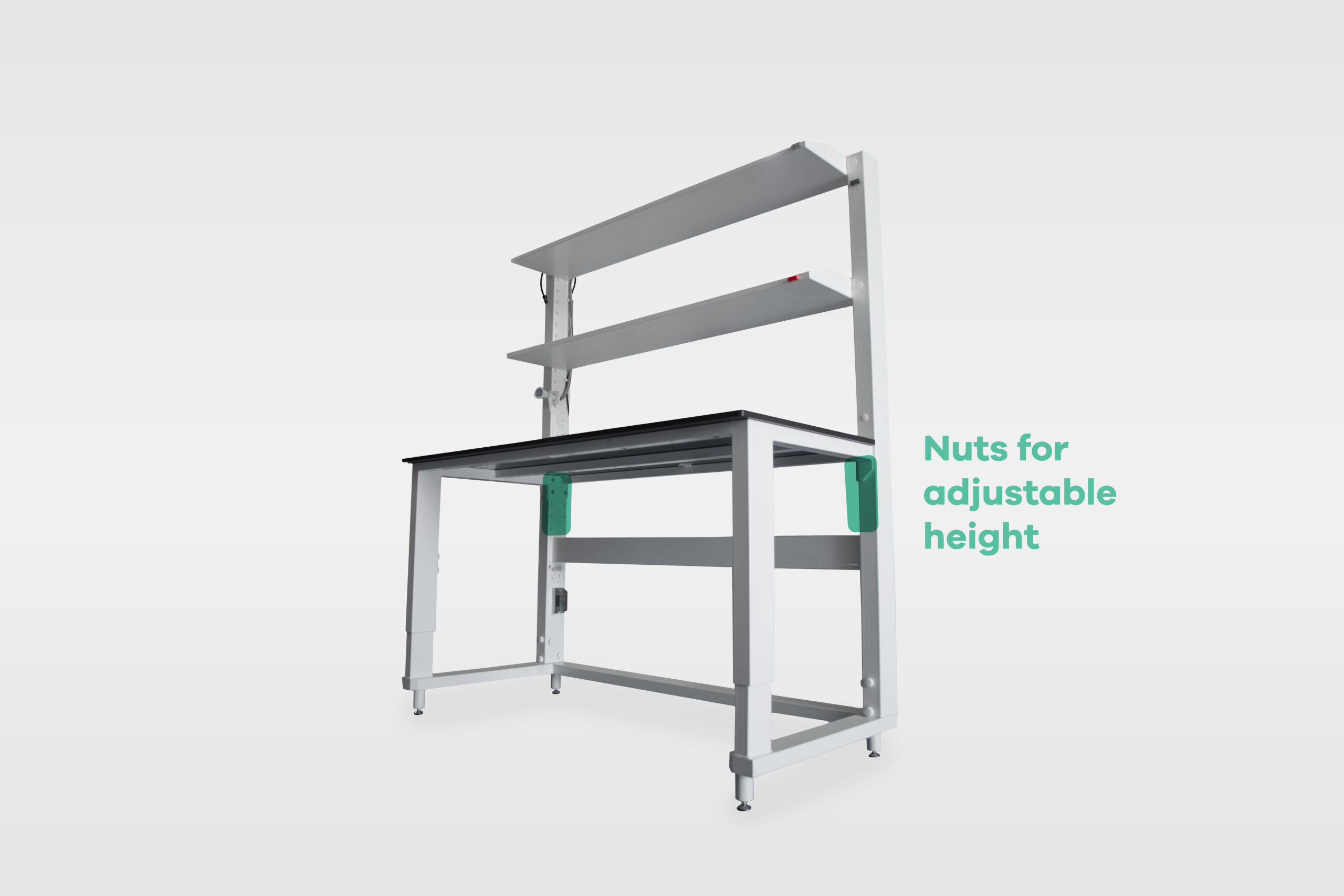

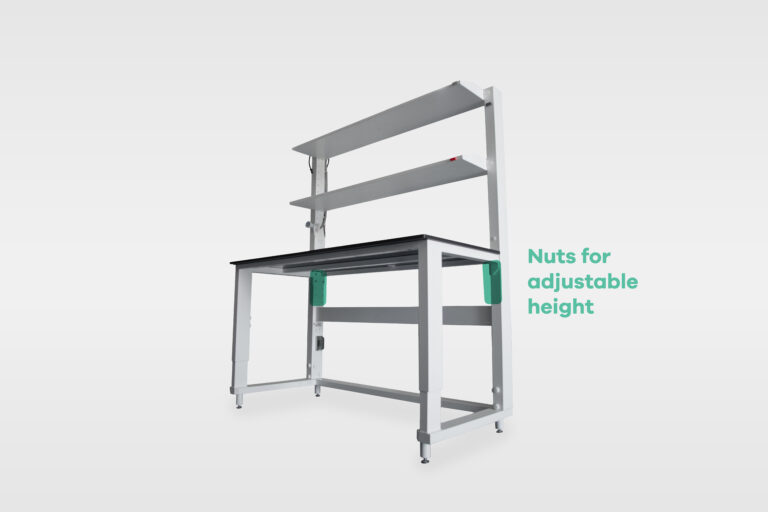

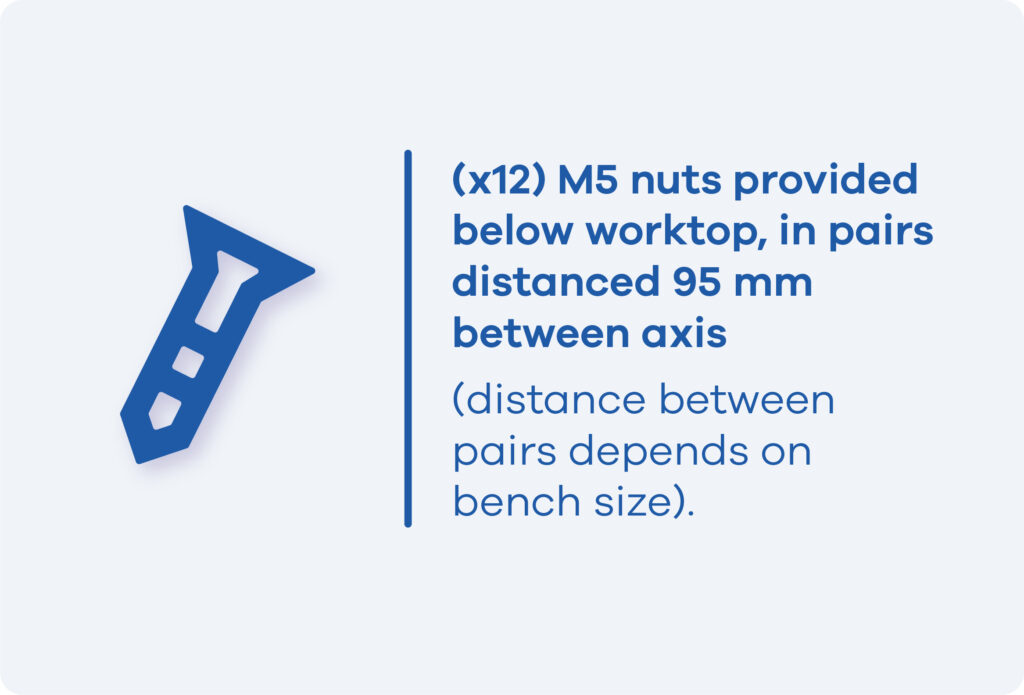

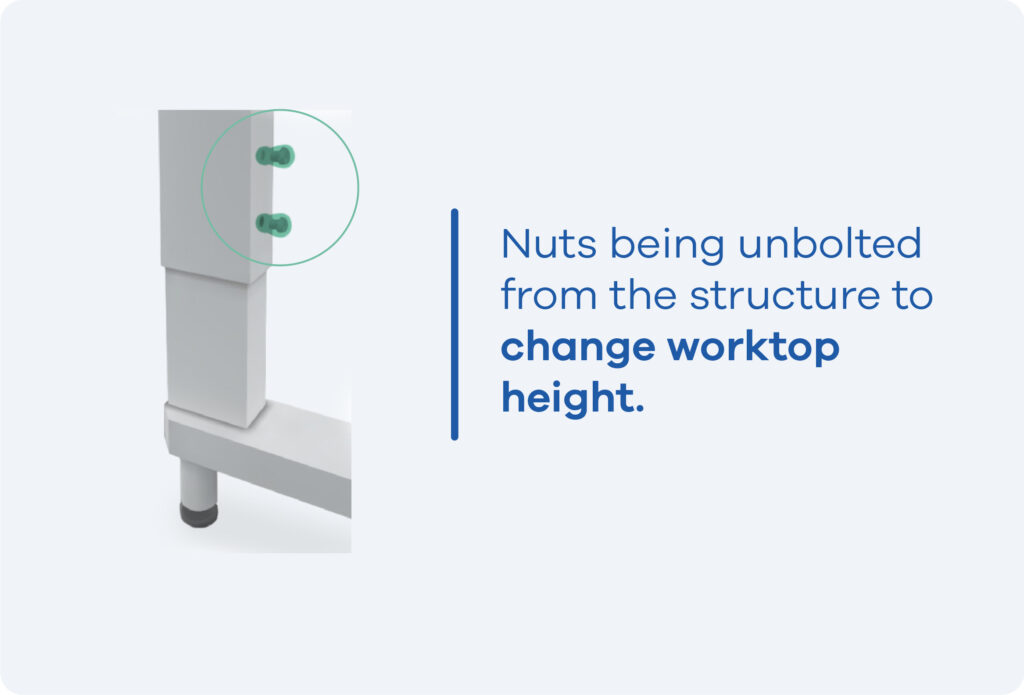

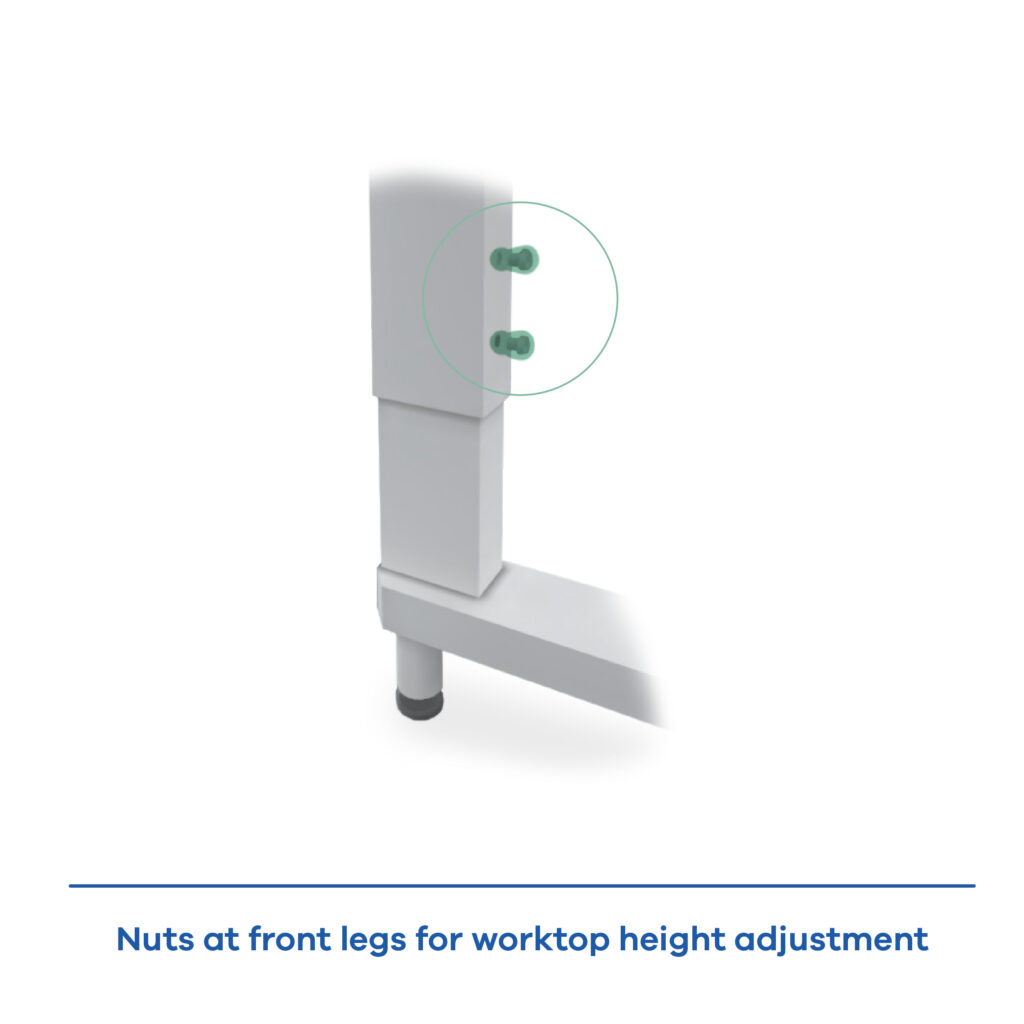

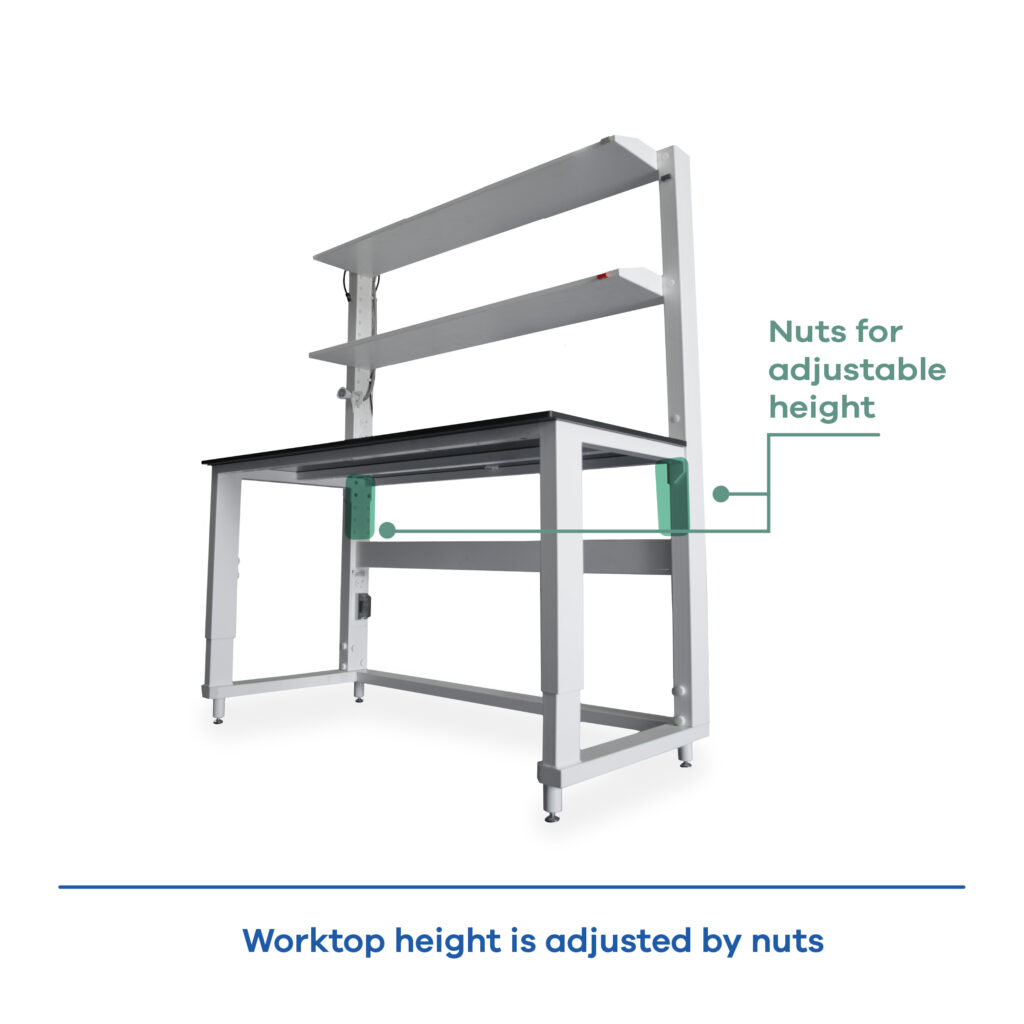

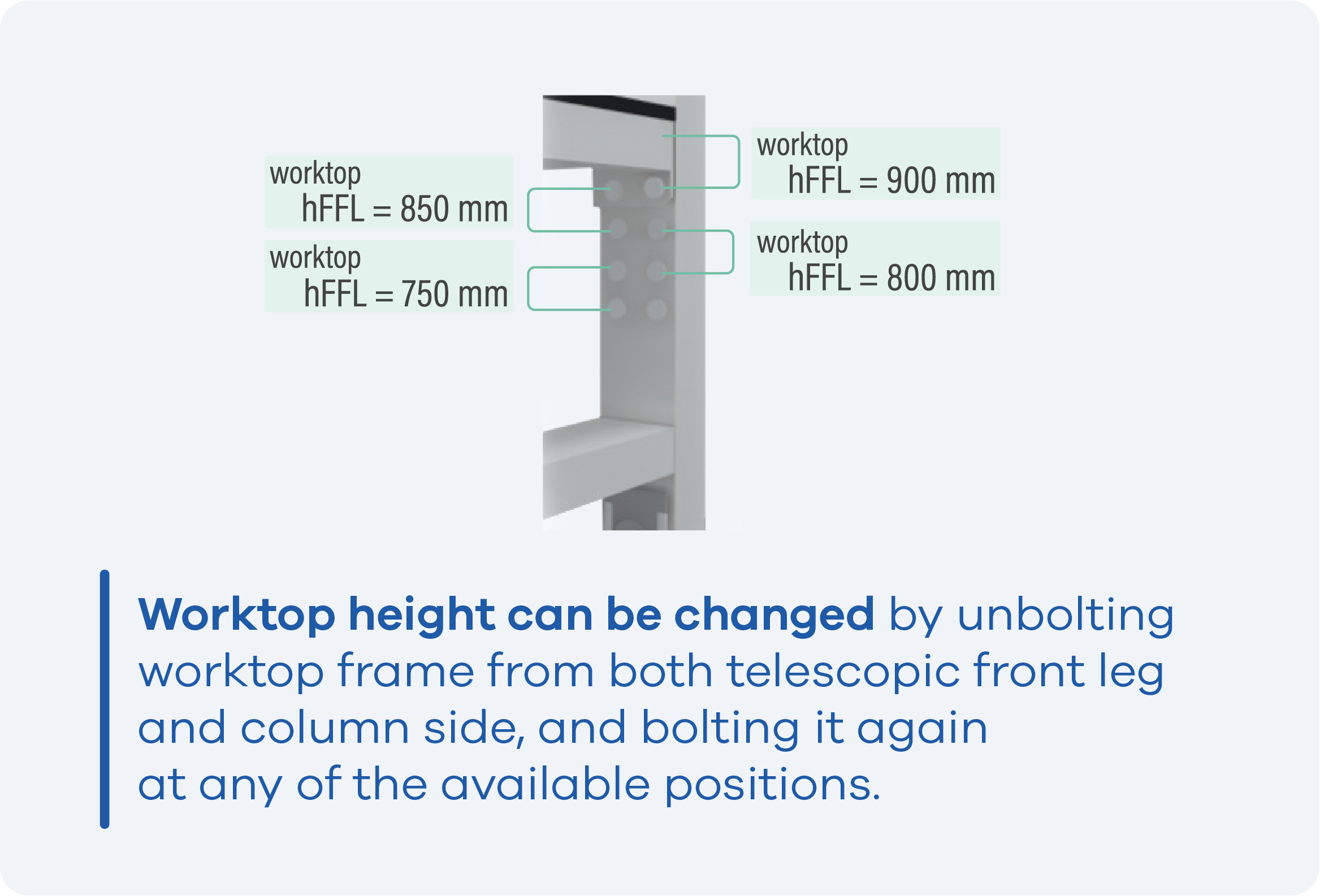

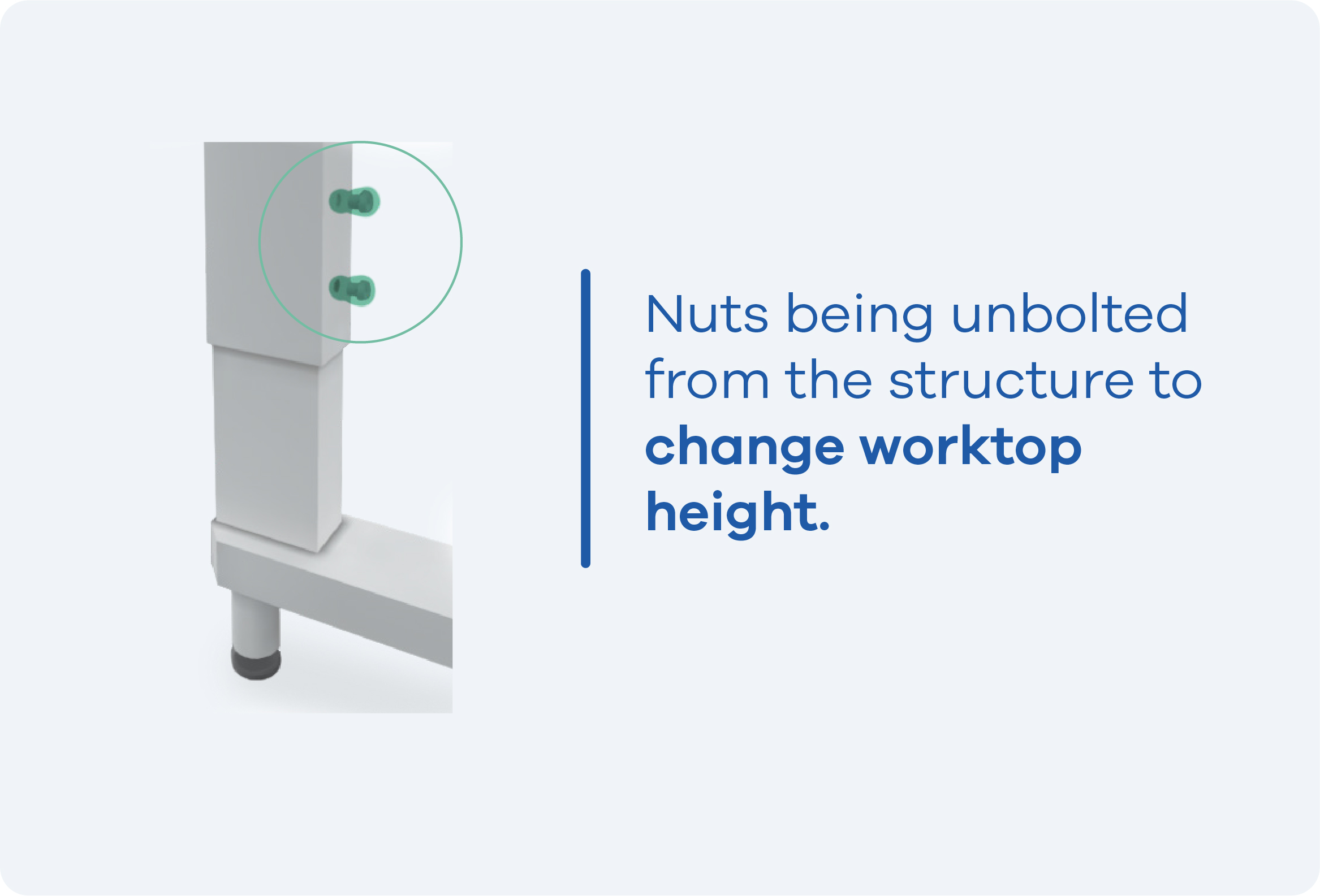

- Worktop frame fully welded steel, to be bolted to base frame and columns at any of the selectable heights. Provided M5 nuts below worktop for accesories and attachments.

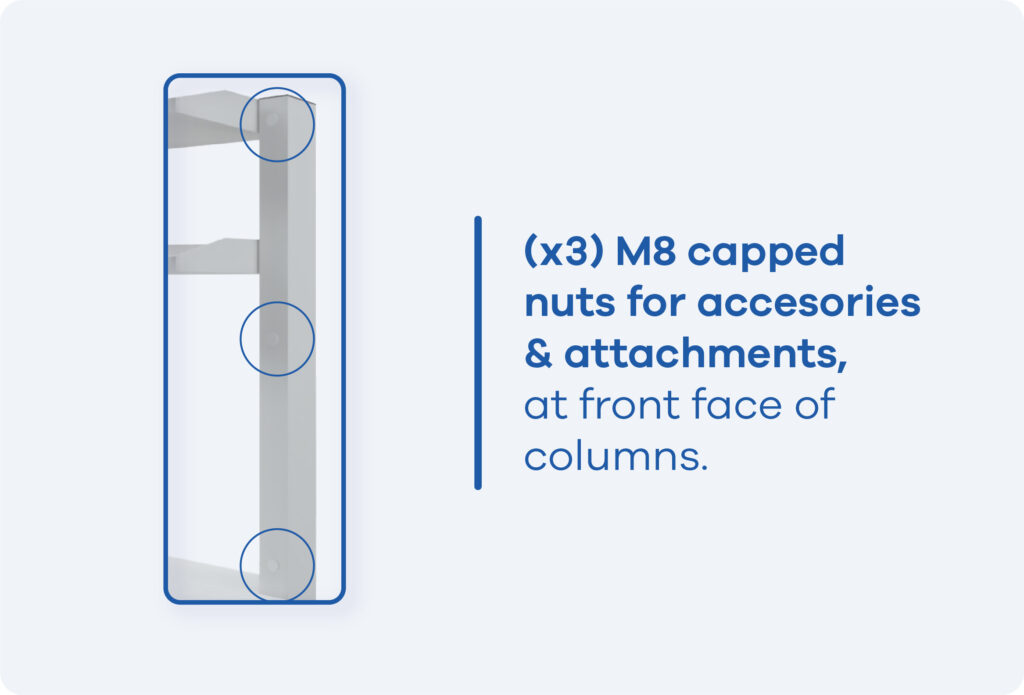

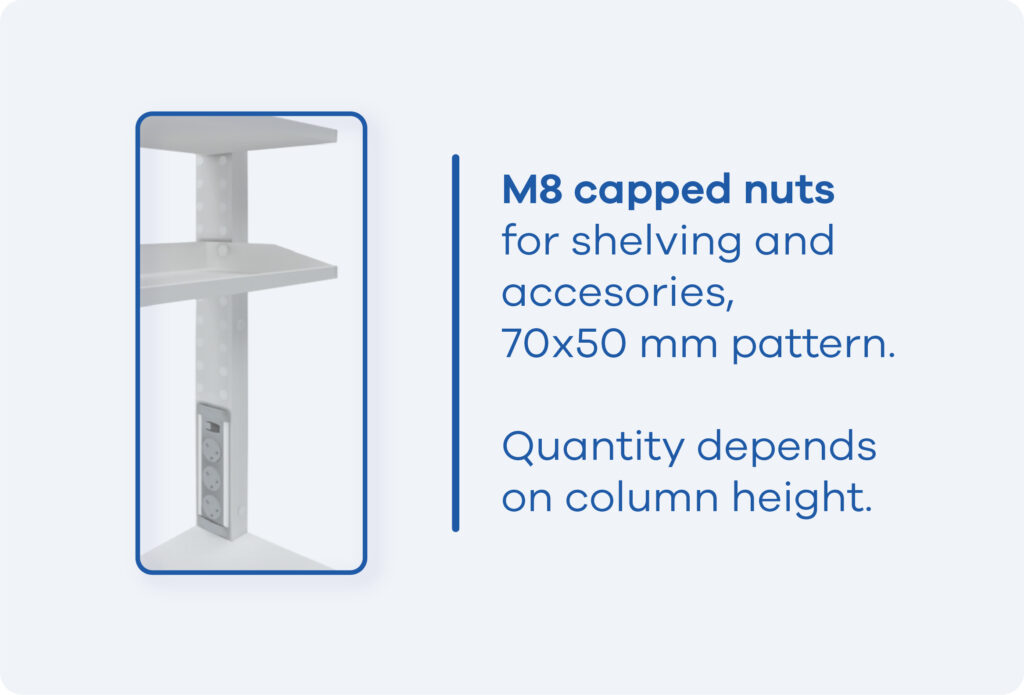

- Columns manufactured in steel tube bolted to main frame, epoxy coated 9010 (check other options), with M8 nuts at internal faces for accesories. Nuts in front faces as an option.

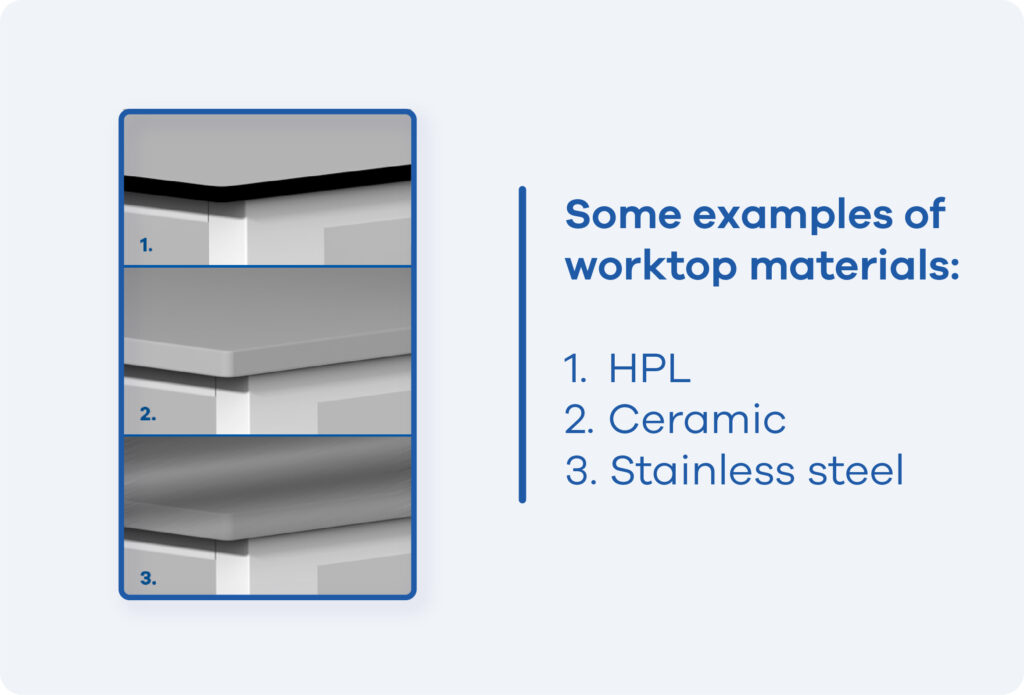

- Worktop material on demand. Advised HPL 16 mm high chemical resistance.

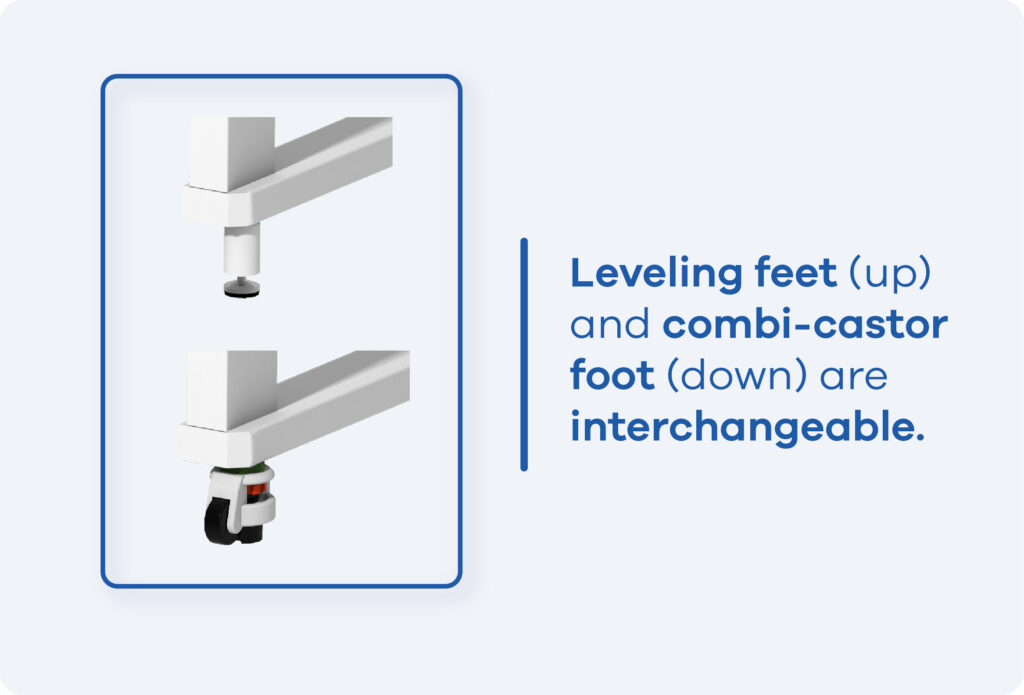

- Feet, articulated with rubber base, interchangeable with combi castor-foot.

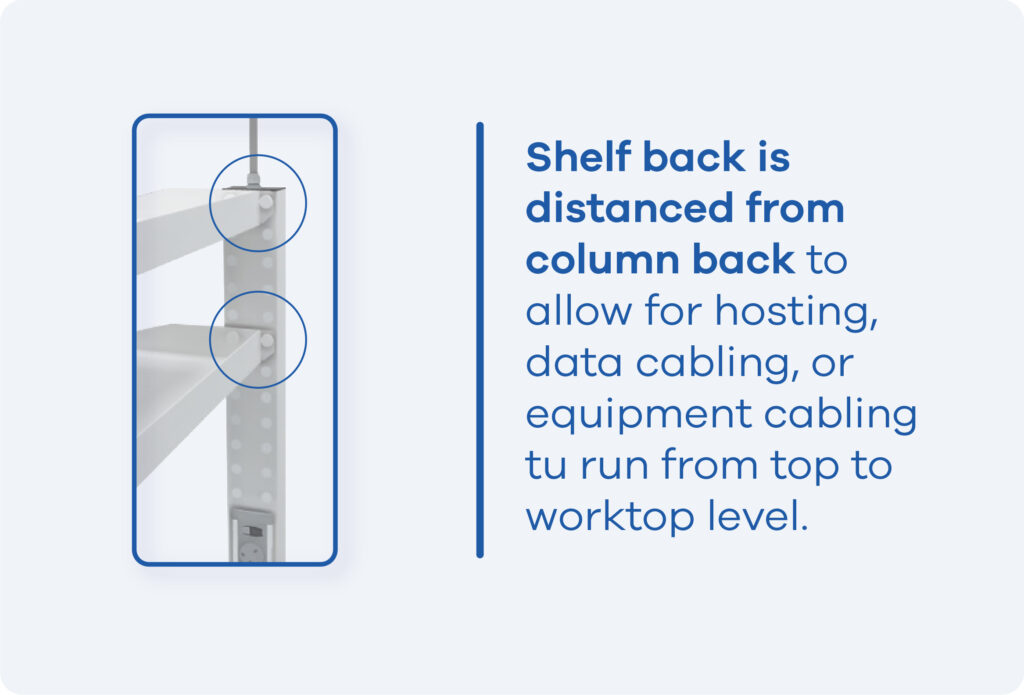

- Data setup on demand, advised to be magnet clip-routed.

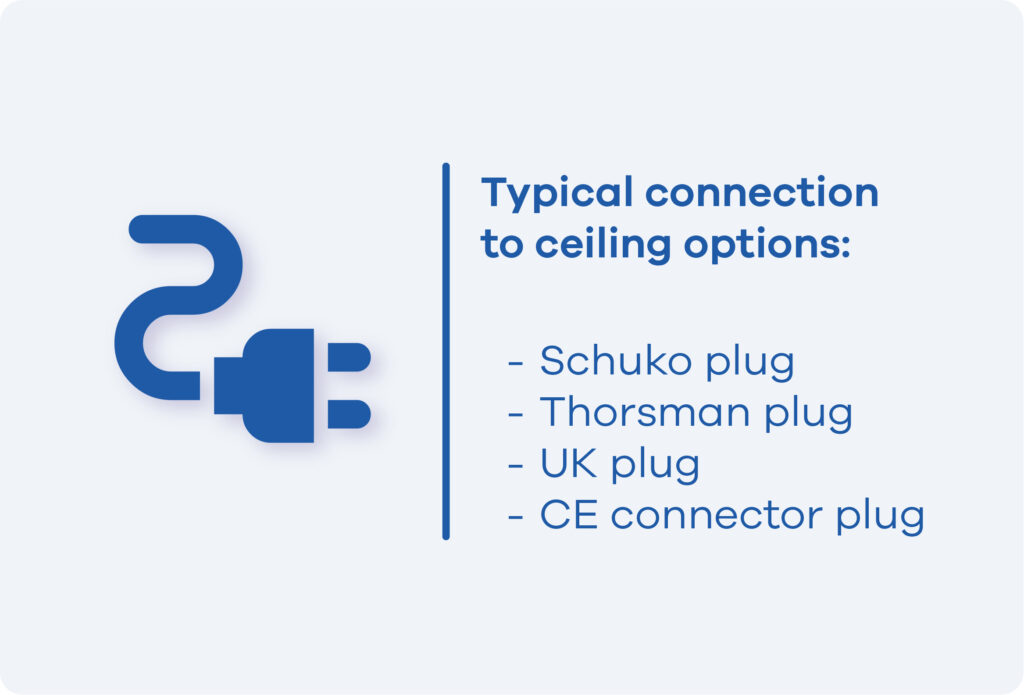

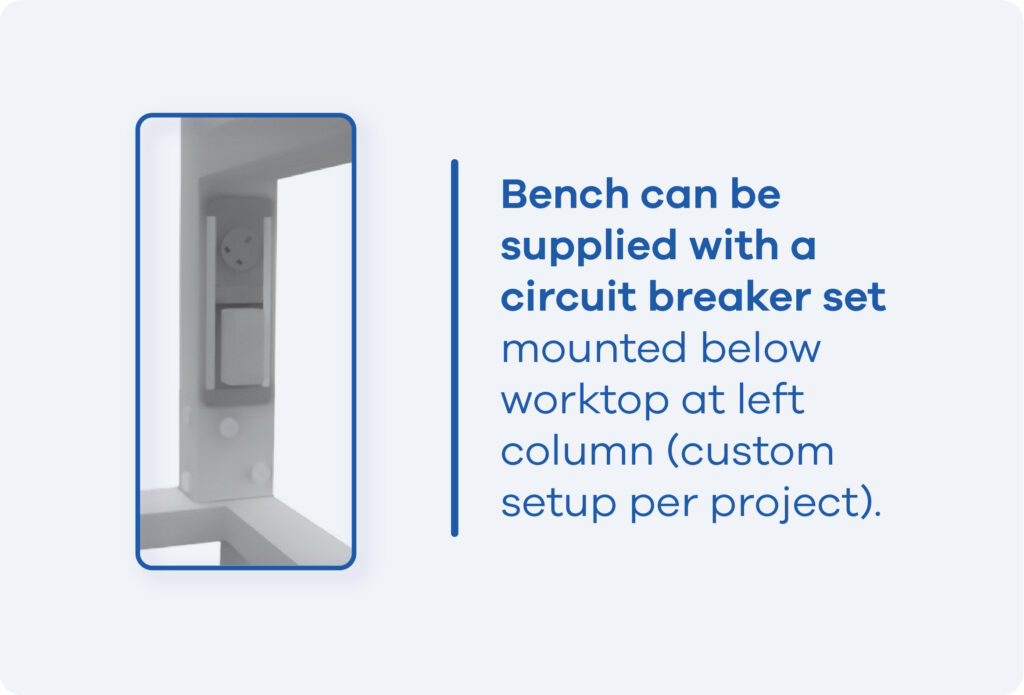

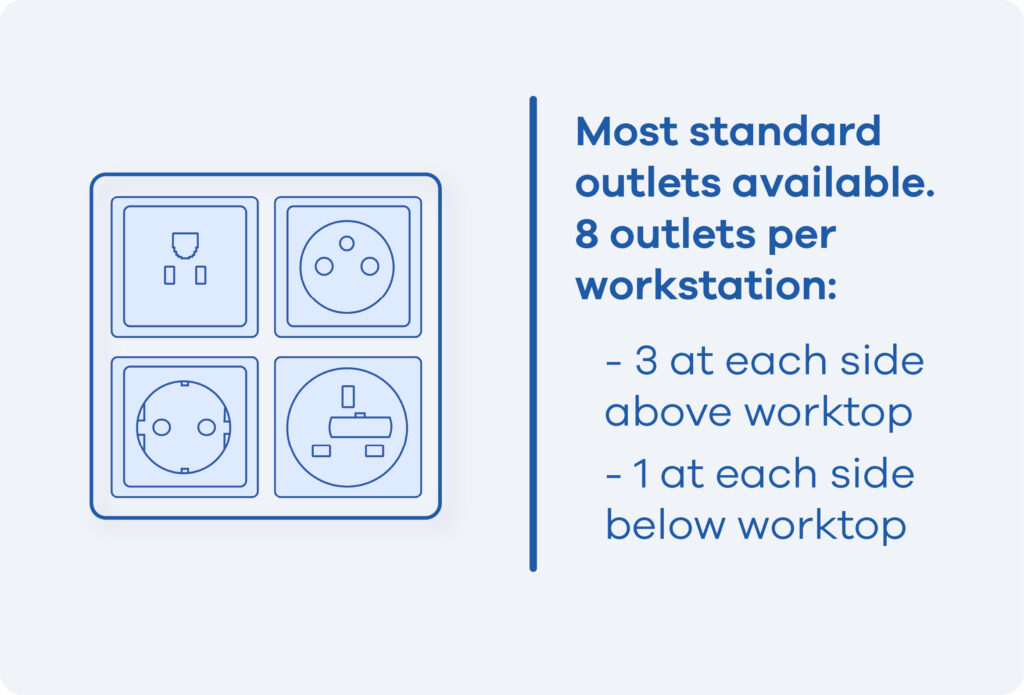

- Electrical setup 8 power sockets installed (3 each side above worktop, 1 each side below worktop). Circuit breaker setup on demand.
Contact us at:
hello@ibr-innovasystem.com
for any special configuration or in case you need a specific type of accesory.
