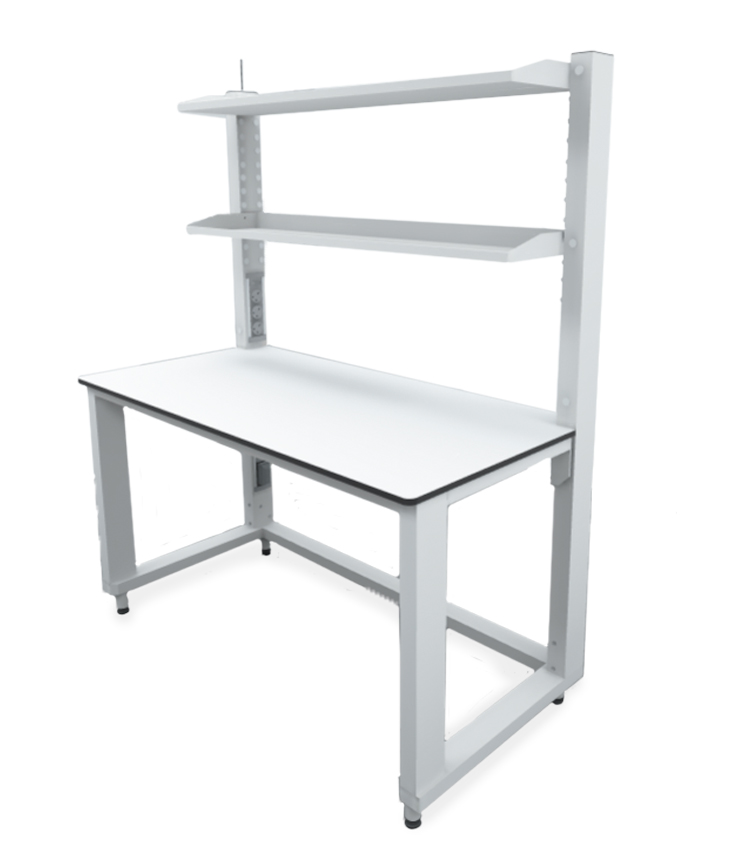

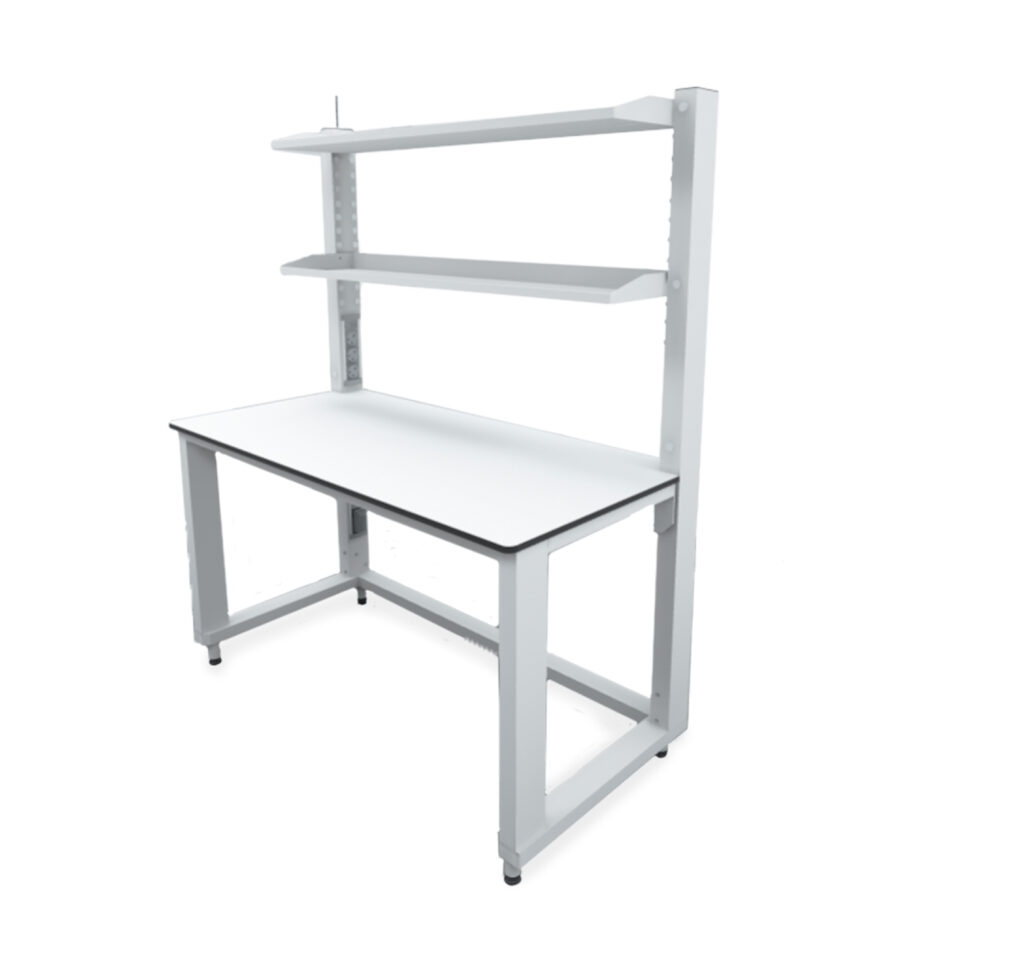

Barcelona

WORKSTATION

Choose from a range of configurations, starting with a customized workstation tailored to your space.

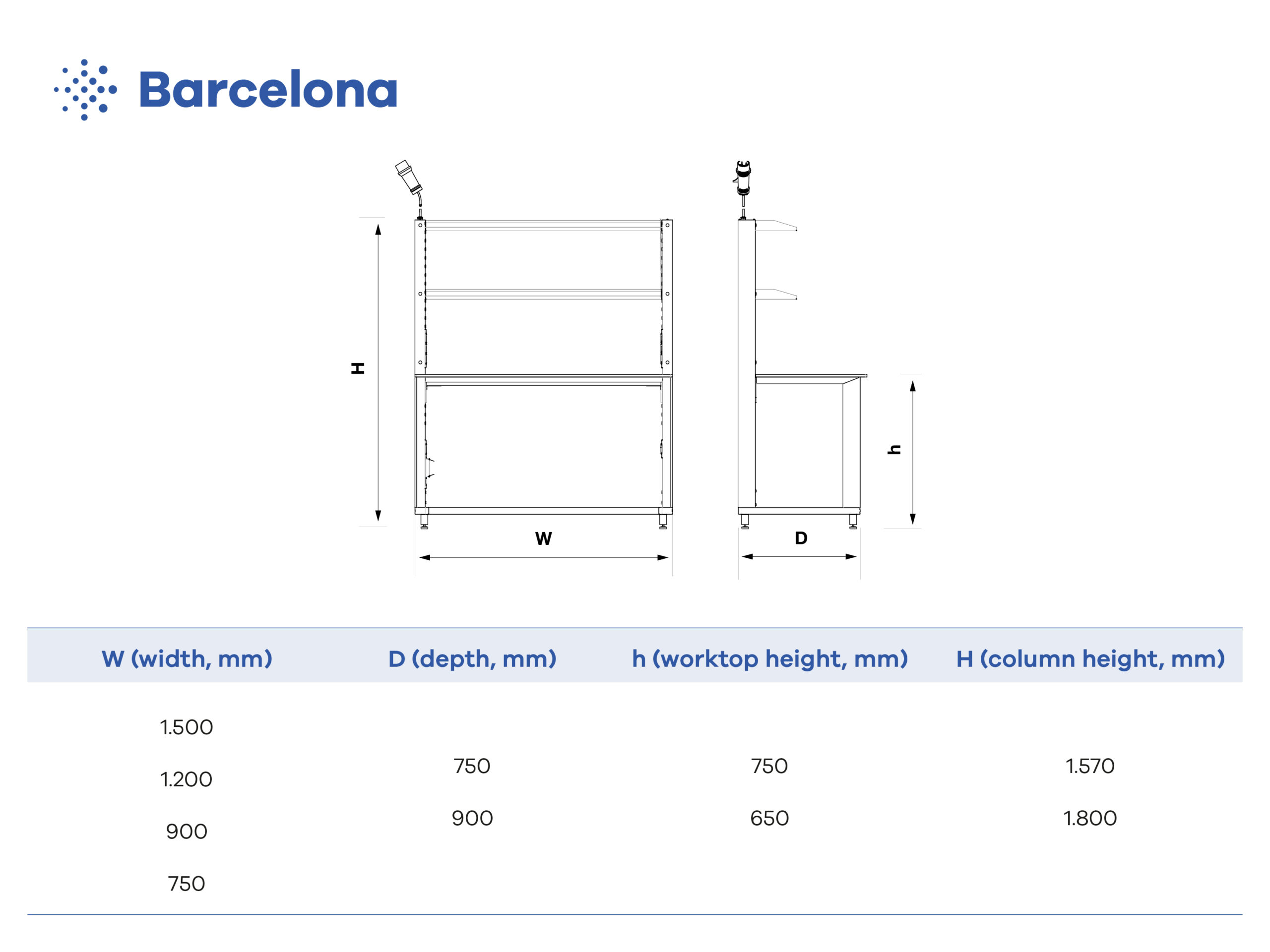

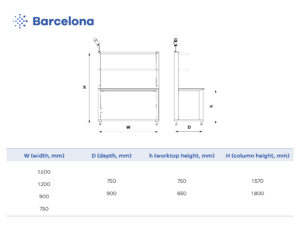

W (Width, mm)

1.500

1.200

900

750

D (Depth, mm)

–

750

900

–

h (Worktop height, mm)

–

750

650

–

H (Column height, mm)

–

1.570

1.800

–

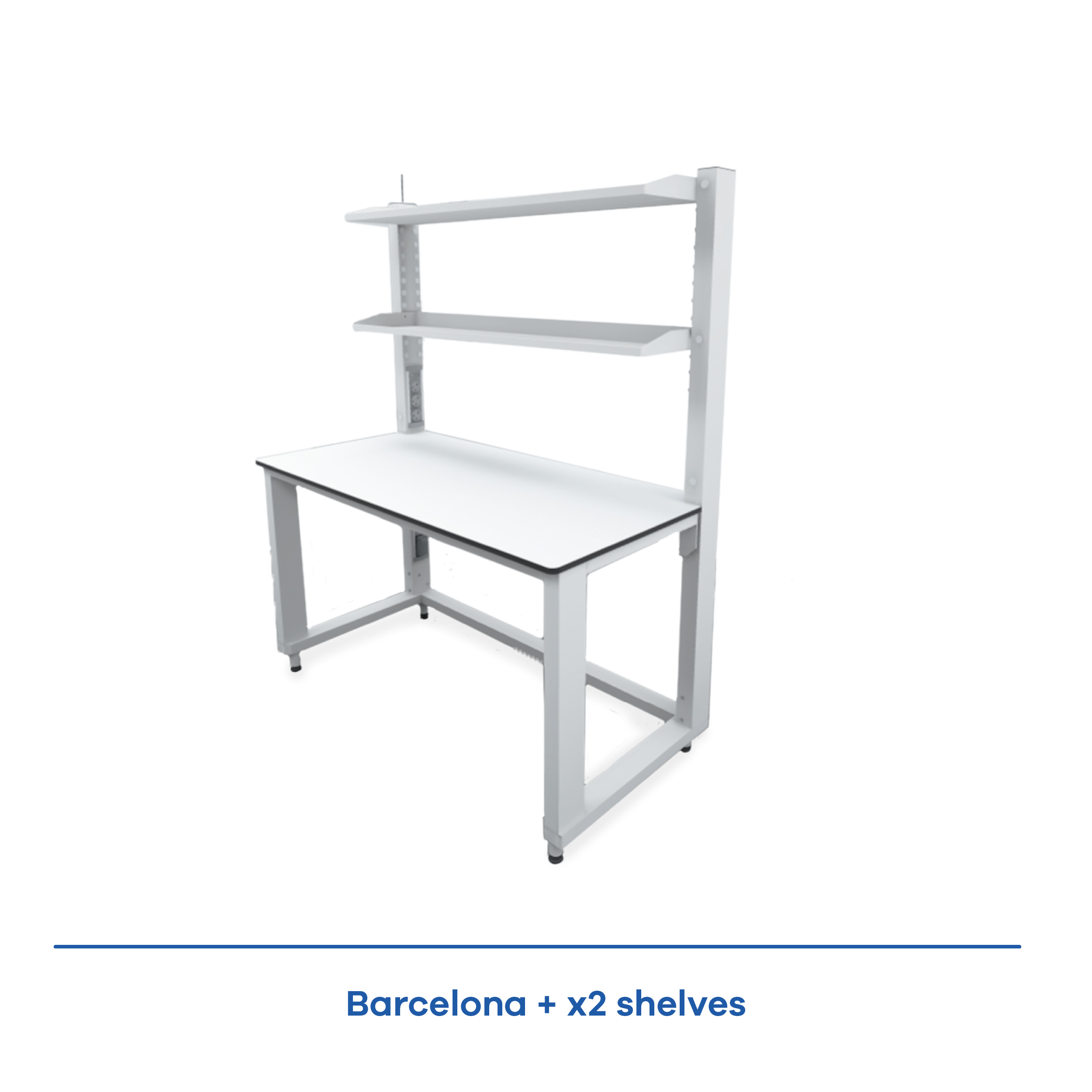

Power supply side can be switched left to right and viceversa. Check accesories pages to see how shelves can be added, removed and changed position.
Underbench shelf available.
Gas taps can be attached to column.
Some other options available.
In addition, special accesory attachments can be designed and manufactured on demand.
Main frame fully welded steel, epoxy coated 9010 (check other options) with M5 nuts below worktop for accesories and attachments.

Columns manufactured in steel tube bolted to main frame, epoxy coated 9010 (check other options), with M8 nuts at internal faces for accesories. Nuts in front faces as an option.
Worktop material on demand. Advised HPL 16 mm high chemical resistance.
Feet, articulated with rubber base, interchangeable with combi castor-foot.
Data setup on demand, advised to be magnet clip-routed.
Electrical setup 8 power sockets installed (4 each side above worktop). Circuit breaker setup on demand.

Typical connection to ceiling options:

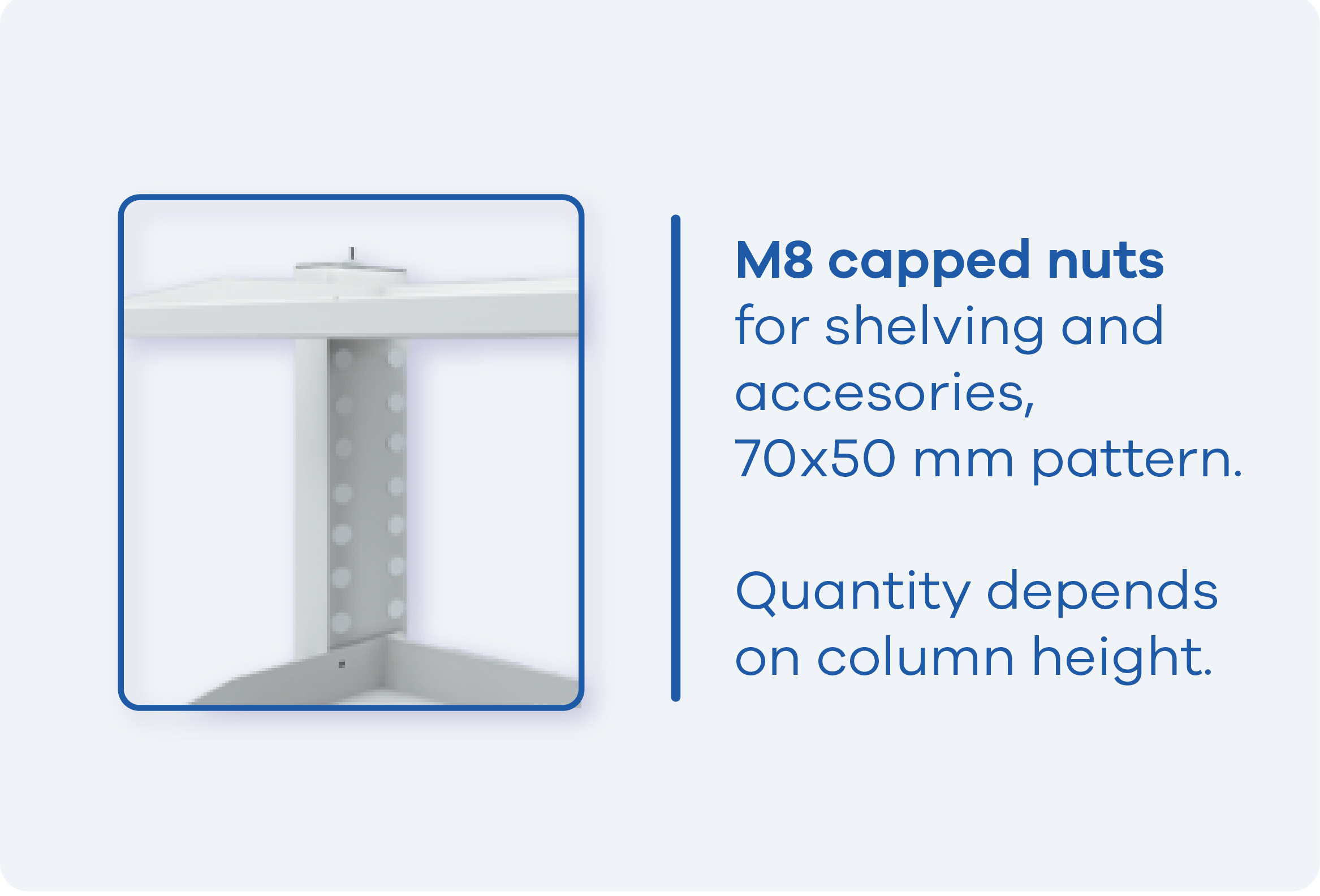

M8 capped nuts for shelving and acesories, 70×50 mm pattern.

Quantituy depends on column height.

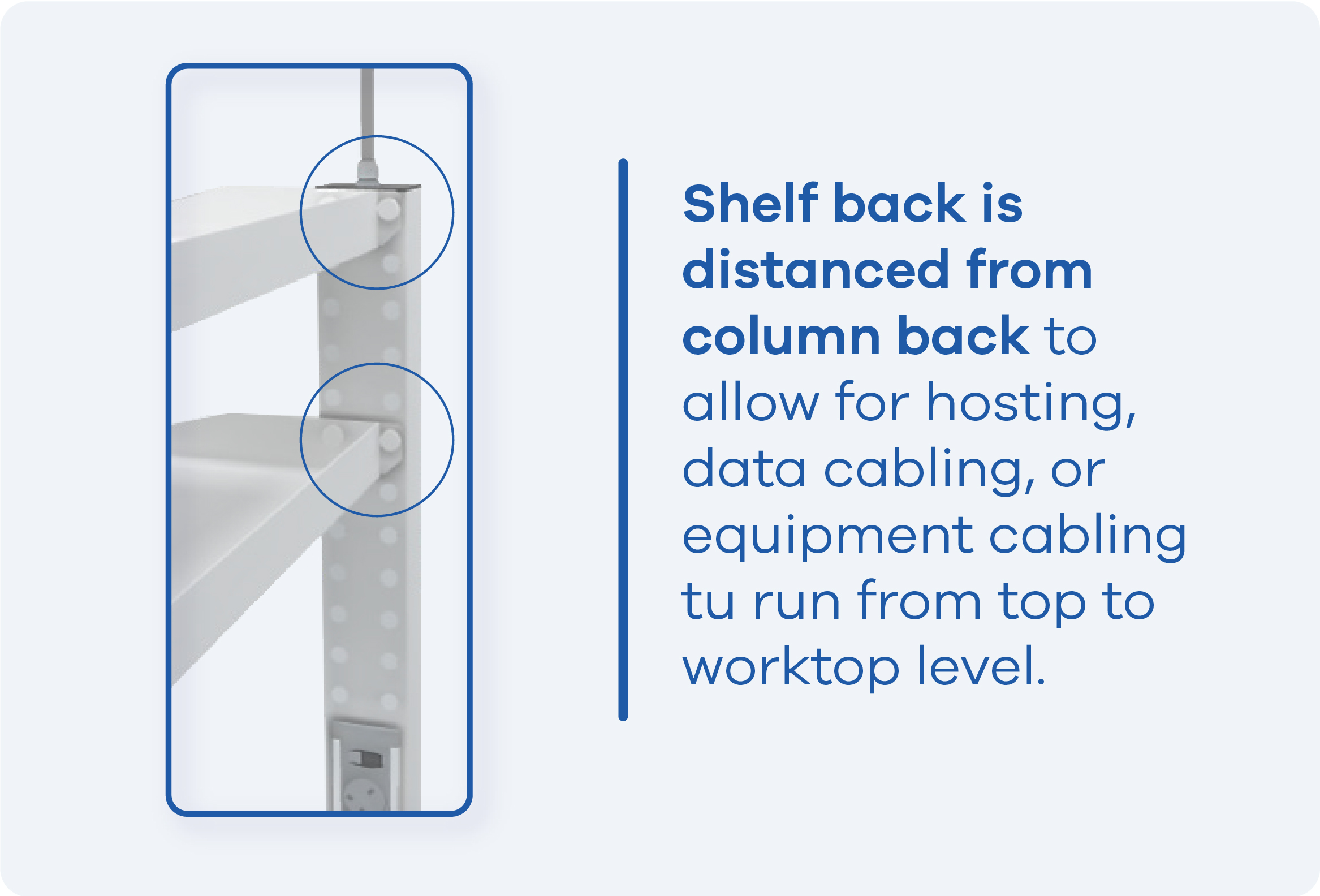

Shelf back is distanced from column back to allow for hosing, data cabling o equipment cabling to run from top to worktop level.

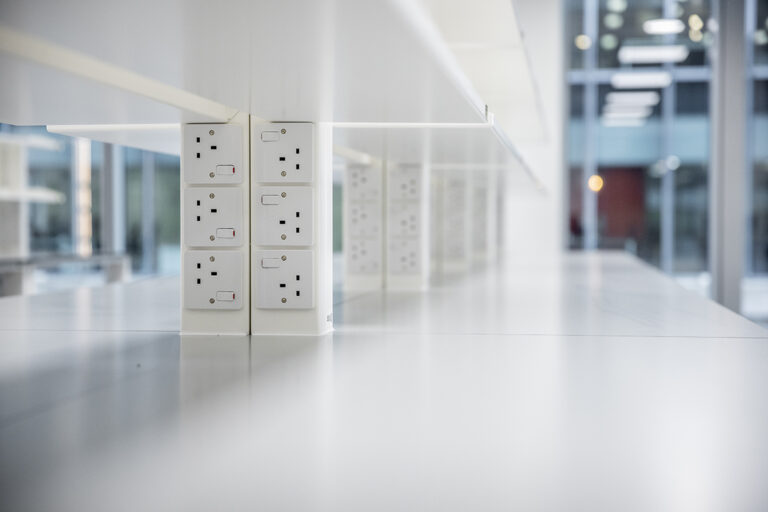

Most standard outlets available. 8 outlets per workstation: 3 outlets at each side above worktop. 1 outlet at each side below worktop.

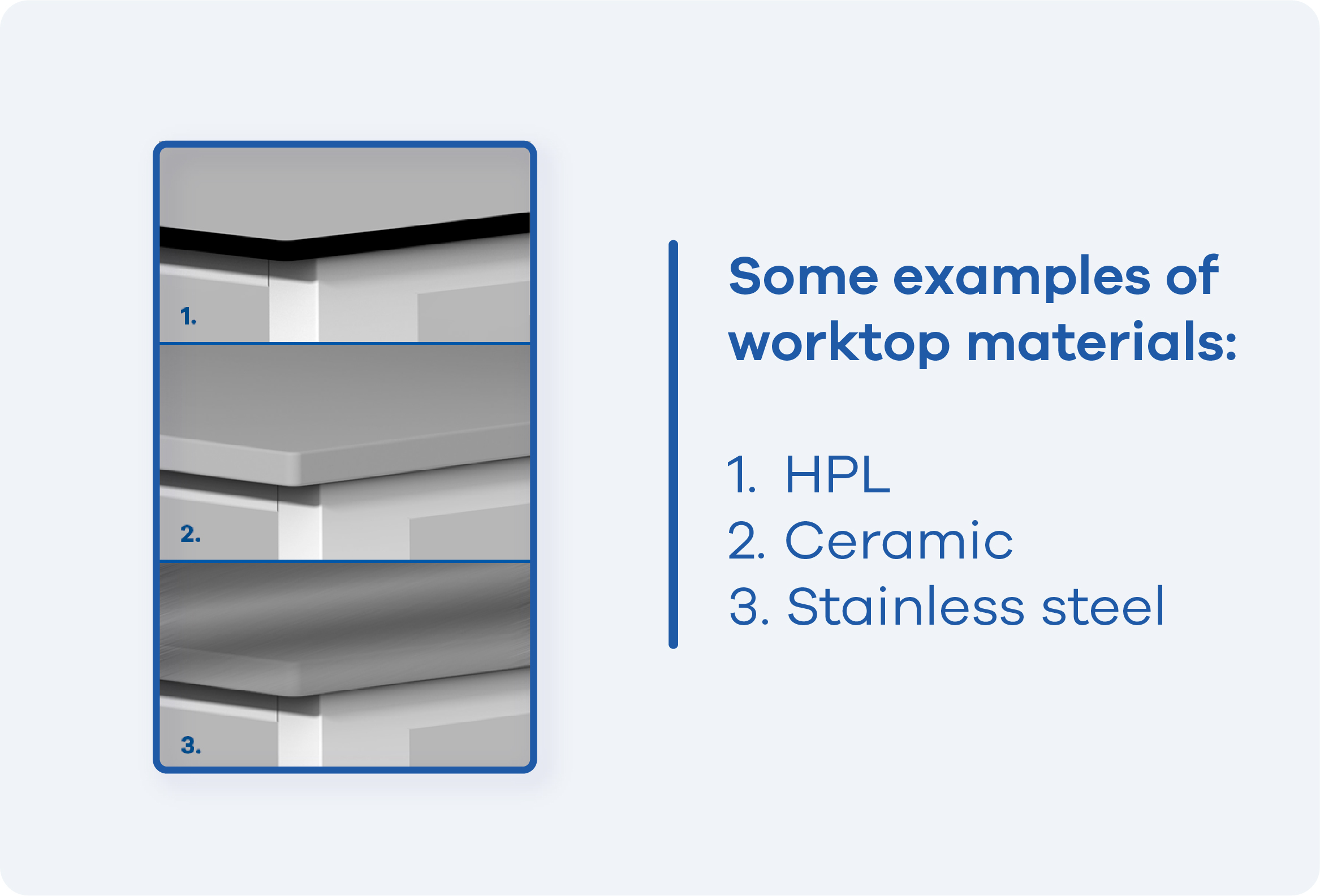

Some examples of worktop materials:

1. HPL
2. Ceramic
3. Stainless steel

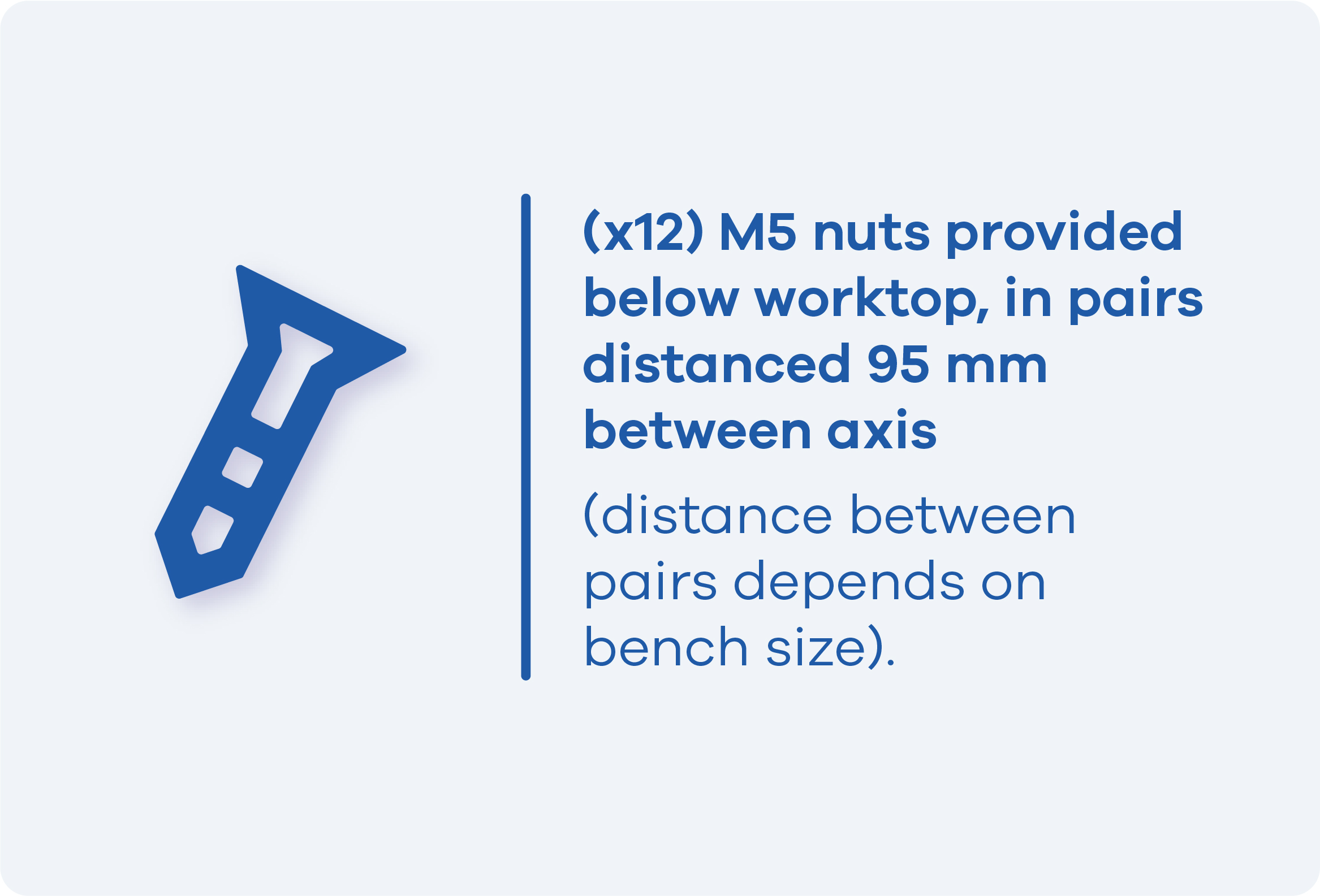

(x12) M5 nuts provided below worktop, in pairs distanced 95 mm between axis (distance between pairs depends on bench size).

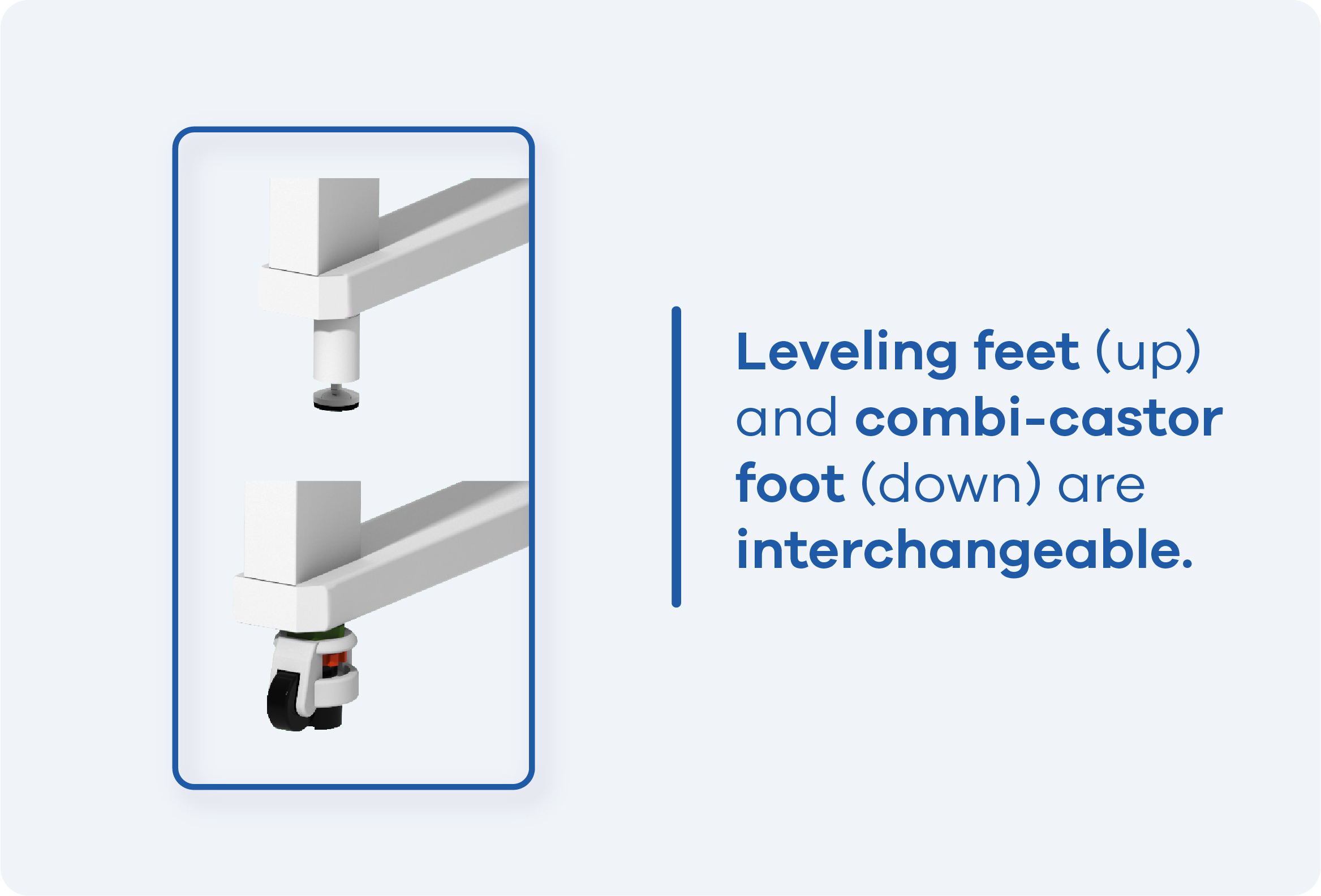

Leveling feet (up) and combi-castor foot (down) are interchangeable

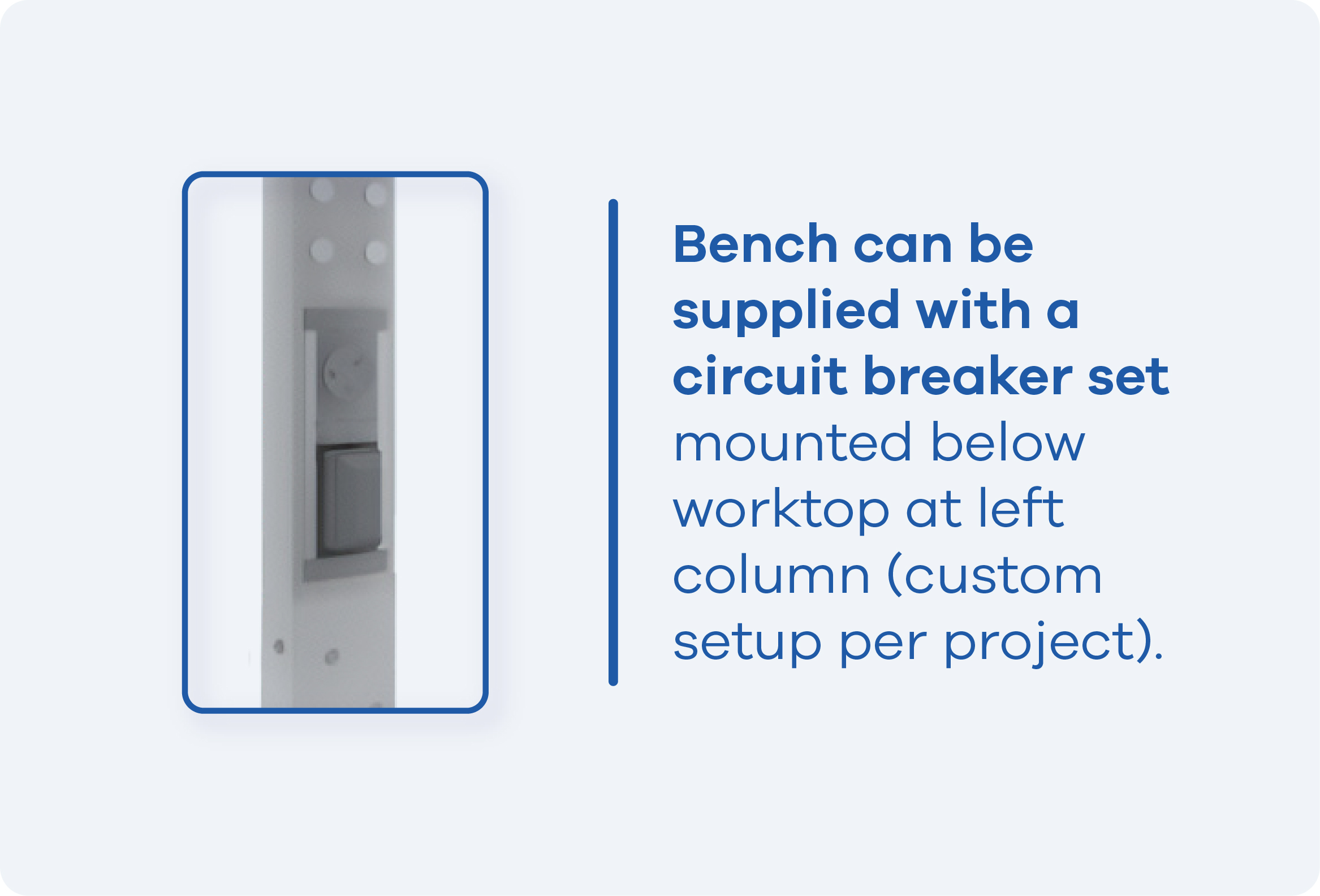

Bench can be supplied with a circuit breaker set mounted below worktop at left column (custom setup per project).

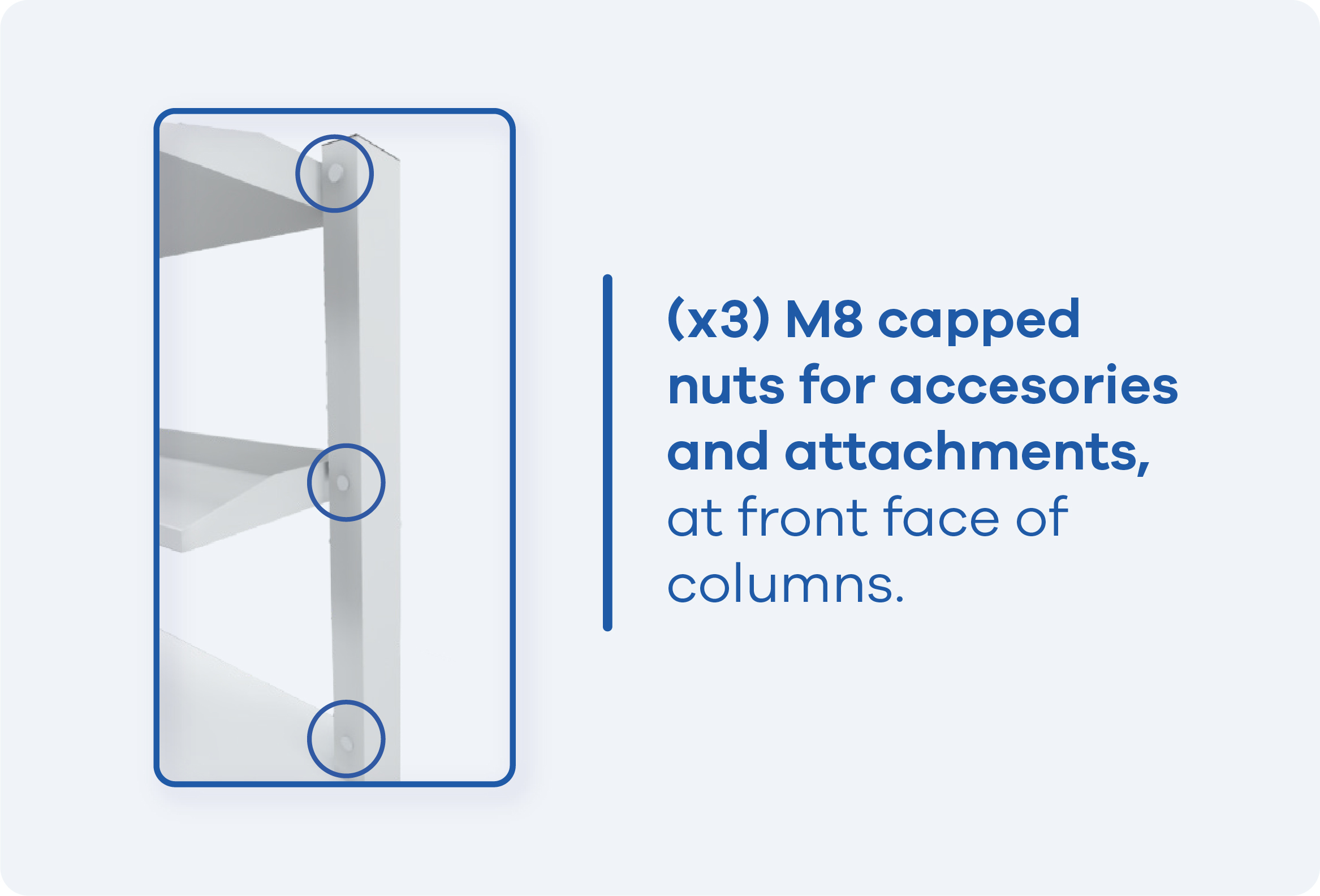

(x3) M8 capped nuts for accesories and attachments, at front face of columns.

Contact us at:

hello@ibr-innovasystem.com

for any special configuration or in case you need a specific type of accesory.
