SINK

Choose from a range of configurations, starting with a customized sink tailored to your space.

W (Width, mm)

1.500

1.200

900

600

Doors (per width)

3 (1.500)

2 (1.200)

2 (900)

1 (600)

D (depth, mm)

600

750

900

–

h (worktop height, mm)

–

900

–

H (Column height, mm)

1.500

Up to ceiling

–

Fluids can be installed on worktop or at column front face (if present)
Designed for a quick installation on site.
A simple electrical setup can be installed at column on demand.
Main core frame fully welded steel, epoxy coated 9010 (check other options).
Columns (if present) manufactured in metal sheet steel tube bolted to main frame, epoxy coated 9010 (check other options). Size on demand.
Outer panelling on demand (HPL, melamine, metal sheet).

Worktop material on demand.
Sink material on demand.
Feet, articulated with rubber base.
Soft closing hinges opening 165º.
Fluids on demand (water mixer, eye shower, RO water).
Electrical setup up to 2 power sockets can be installed at column (if present). Additionally, circuit breaker setup on demand.

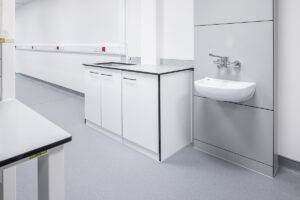

Column solutions can be: no column, small column or column up to ceiling.

Side panel can be delivered with special shape to fit existing wall, allow for passing piping, or removed and changed if necessary.

Wrapping material can be HPL, melamine or metal sheet.

Combination worktop-sink can be mixed (HPL + epoxy…) or same material (polypropilene, stainless steel…). On demand.

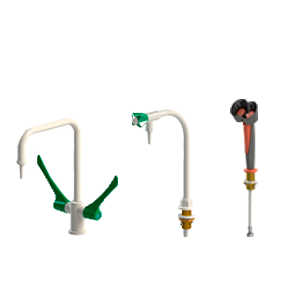

Fluid options (brand on demand).

1. Mixer (left)
2. RO water (mid)
3. Eye shower (right)

Contact us at:

hello@ibr-innovasystem.com

for any special configuration or in case you need a specific type of accesory.
