CABINETRY

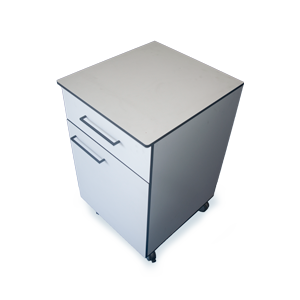

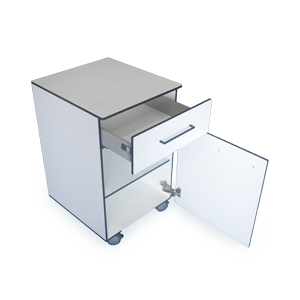

CABINET ON CASTORS

Product specifications

Choose from a range of configurations, starting with a customized workstation tailored to your space.

W (Width, mm)

500

700

900

1.200

D (Depth, mm)

550

–

–

–

h (Worktop height, mm)

830

660

–

–

⚠️ Max. load – 25 kg per drawer

⚠️ Max. load – 100 kg total



  • Can be delivered in fully HPL or melamine.

  • Melamine version also has HPL worktop.

  • Optional 270º opening hinges.

  • Check availability for other colours or door-drawer combinations out of this list.

  • Body manufactured fully with 16 mm melamine with black PVC edging (advised) or 16 mm HPL.
  • Usable worktop built on 16 mm HPL usable top.

  • White finishing as standard (check options).

  • Rubber wrapped plastic core castors, 2 without brakes at back, 2 with brakes at front.

  • Black handles, 200 mm.

  • Soft closing hinges opening 165º. Optional 270º opening hinge.

  • Models with door(s) includes height adjustable internal shelf.

Usable HPL worktop.

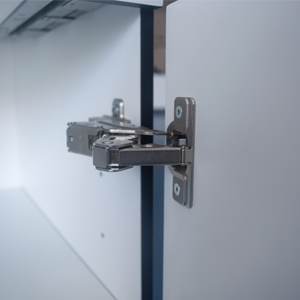

Soft closing hinges, 165º opening.

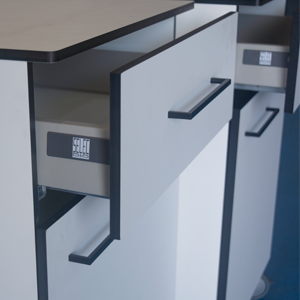

Soft closing drawer guides / Black epoxy painted steel handle.

Front castors with brake.
