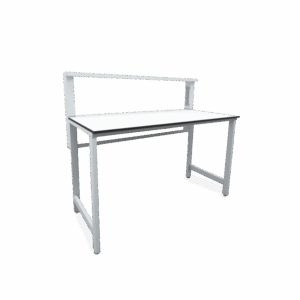

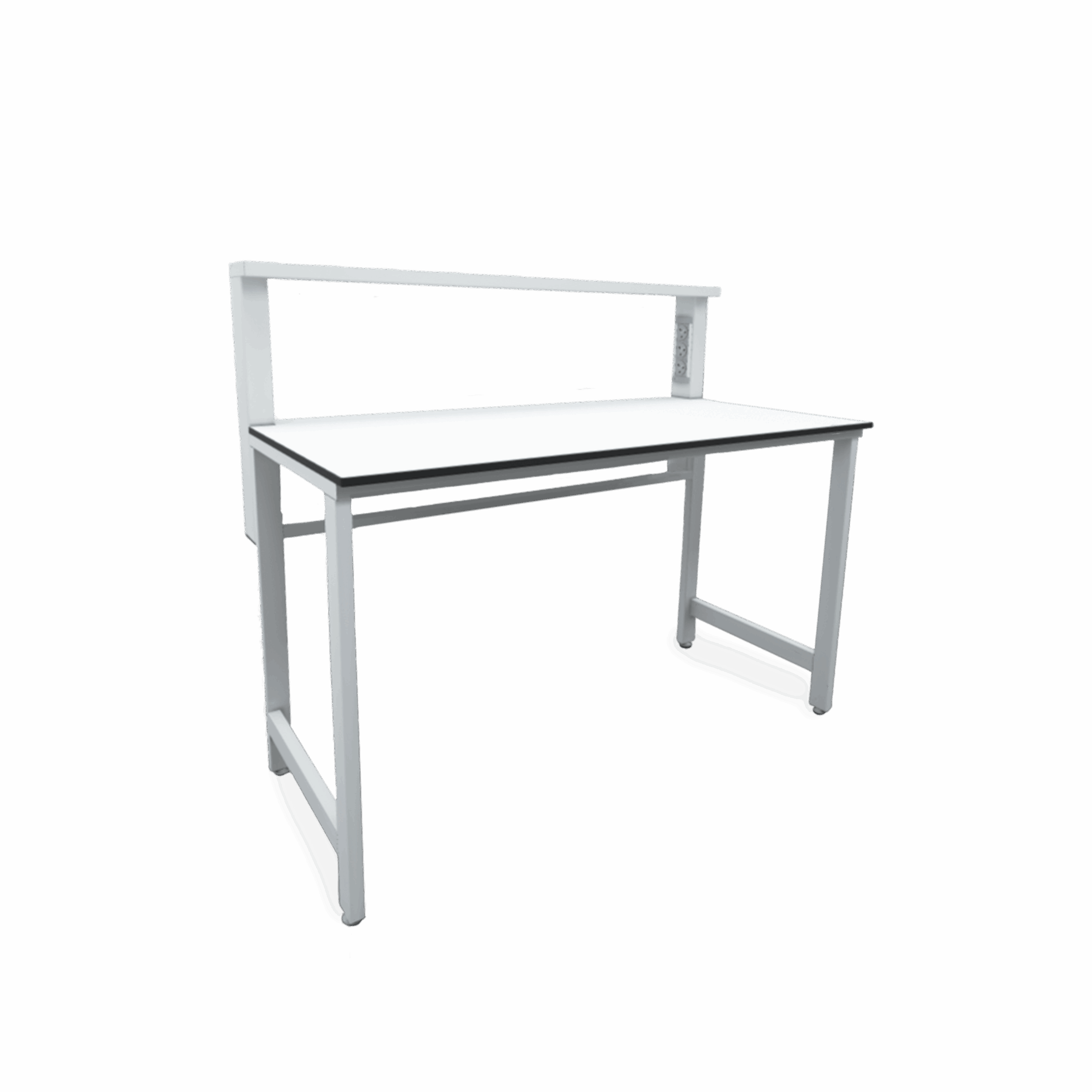

Primary+

BENCH

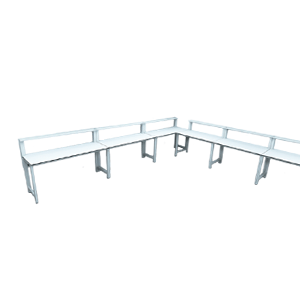

Choose from a range of configurations, starting with a customized bench tailored to your space.

W (Width, mm)

1.500

1.200

900

600

D (Depth, mm)

600

750

900

–

h (Worktop height, mm)

–

900

750

–

H (Column height, mm)

–

1.440

–

Accesories and attachments such as electrical trunking brackets, side and back covers, or on demand new designs, can be attached at back beam.

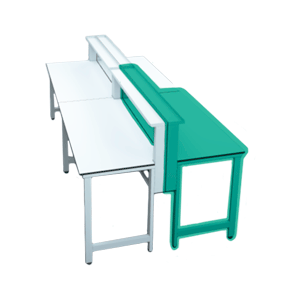

Primary Bench+ can always be built from a Primary Bench by adding the columns attachment and changing the worktop.
Check Primary Bench 5P sheet for info on extra large sizes (up to 2.400 mm width).
Ask for special setups or attachments (column or shelf size, electrical setup, etc.)
Main frame fully welded steel, epoxy coated 9010 (check other options) with M5 nuts below worktop (back beam).

Worktop material on demand. Advised HPL 16 mm high chemical resistance.
Feet, articulated with rubber base.
Bolted (detachable) set of electrical column + fixed height shelf, main body welded steel, epoxy coated 9010 (check other options).
Electrical setup: 3 power sockets installed on right column, inner face (looking inwards bench).
Cord allows to plug in wall or floor (1.5 mm retractable cord). Cord can be hidden in shelf adhesive trunking (not provided) attached to back lower beam.

Most standard outlets available.
3 outlets installed at right column internal face.

Some examples of worktop materials:

1. HPL
2. Ceramic
3. Stainless steel

M5 nuts every 300 mm provided below worktop at back beam (number of nuts depends on bench size).

Articulated antislip leveling feet.

Shelf welded to columns.

Column-shelf set bolted to main (Primary Bench) structure.

Cable can be routed via bracers or trunking following back top or middle beam.

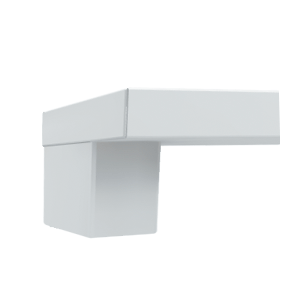

Main frame built with thin and stylish tubing to maximize leg space and clean spaces, while keeping aesthetics compatibility with IBR workstations.

Contact us at:

hello@ibr-innovasystem.com

for any special configuration or in case you need a specific type of accesory.
