BENCH

PRIMARY

Product specifications

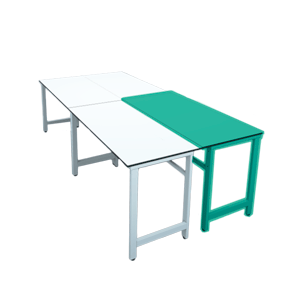

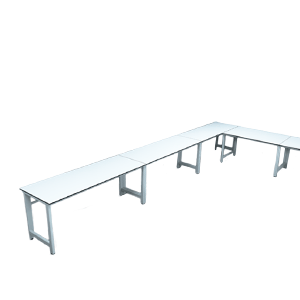

Choose from a range of configurations, starting with a customized bench tailored to your space.

W (Width, mm)

1.500

1.200

900

750

D (Depth, mm)

600

750

900

–

h (Worktop height, mm)

–

900

750

–

⚠️ Max. load – 200 kg

  • Accesories and atachments such as electrical trunking brackets, side and back covers, or on demand new designs can be attached at back beam and back legs nuts.

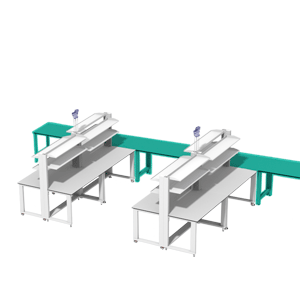

  • Primary Bench can be configured with appliances, check Primary+ Bench sheet for more info.

  • Check Primary Bench 5P sheet for info on extralarge sizes (up to 2.400 mm width).
  • Main frame fully welded steel, epoxy coated 9010 (check other options) with M5 nuts below worktop (back beam) and M6 at back legs for accesories and attachments.

  • Worktop material on demand. Advised HPL 16 mm high chemical resistance.

  • Feet, articulated with rubber base.

Main frame built with thin and stylish tubing to maximize leg space and clean spaces, while keeping aesthetics compatibility with IBR Workstations.

Some examples of worktop materials:

1. HPL
2. Ceramic
3. Stainless steel

M5 nuts every 300 mm provided below worktop at back beam (number of nuts depends on bench size) (x2) M6 nuts at back of each back leg, for accesories and attachments.

Articulated, antislip leveling feet.

Contact us at:

hello@ibr-innovasystem.com

for any special configuration or in case you need a specific type of accesory.
