BENCH

HPLC

Product specifications

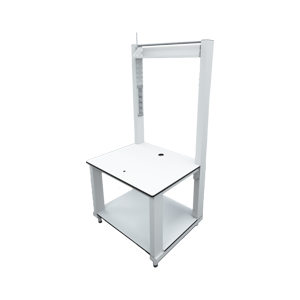

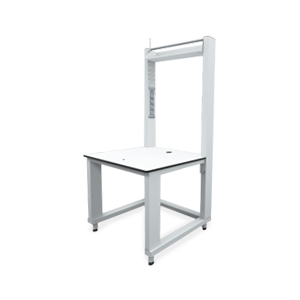

Choose from a range of configurations, starting with a customized bench tailored to your space.

W (Width, mm)

1.500

1.200

900

750

D (Depth, mm)

–

750

900

–

h (Worktop height, mm)

–

750

650

–

H (Column height, mm)

–

1.570

1.800

–

⚠️ Max. load – 350 kg

  • Power supply side can be switched left to right and viceversa. Check accesories pages to see how shelves can be added, removed and changed position.

  • Underbench shelf available.
    (highly advised for waste collection).

  • Gas taps can be attached to column.

  • Some other options available.

  • In addition, special accesory attachments can be designed and manufactured on demand.

  • Main frame fully welded steel, epoxy coated 9010 (check other options) with M5 nuts below worktop for accesories and attachments.
  • Columns manufactured in steel tube bolted to main frame, epoxy coated 9010 (check other options), with M8 nuts at internal faces for accesories. Nuts in front faces as an option.

  • Worktop material on demand. Advised HPL 16 mm high chemical resistance.

  • Feet, articulated with rubber base, interchangeable with combi castor-foot.

  • Data setup on demand, advised to be magnet clip-routed.

  • Plug + Play interchangeable set-up.

    Typical connection to ceiling options:

  • CE connector plug
  • Schuko plug
  • UK plug
  • Thorsman plug

M8 capped nuts for shelving and acesories, 70×50 mm pattern.

Quantituy depends on column height.

Special short shelf with retaining bar allows for tall equipment to be installed while keeping items tight and secure.

Most standard outlets available. 8 outlets per workstation: 3 outlets at each side above worktop. 1 outlet at each side below worktop.

Some examples of worktop materials:

1. HPL
2. Ceramic
3. Stainless steel

(x12) M5 nuts provided below worktop, in pairs distanced 95 mm between axis (distance between pairs depends on bench size).

Leveling feet (up) and combi-castor foot (down) are interchangeable

Bench can be supplied with a circuit breaker set mounted below worktop at left column (custom setup per project).

(x3) M8 capped nuts for accesories and attachments, at front face of columns.

Worktop is delivered with drills at front and back to allow waste piping routing to the bottom.

Contact us at:

hello@ibr-innovasystem.com

for any special configuration or in case you need a specific type of accesory.
