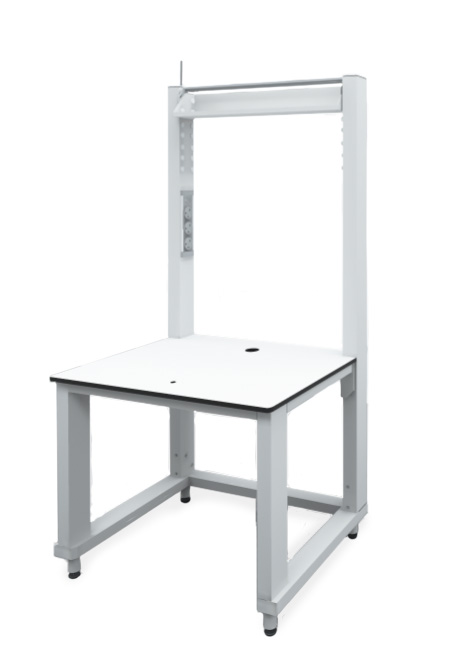

BENCH

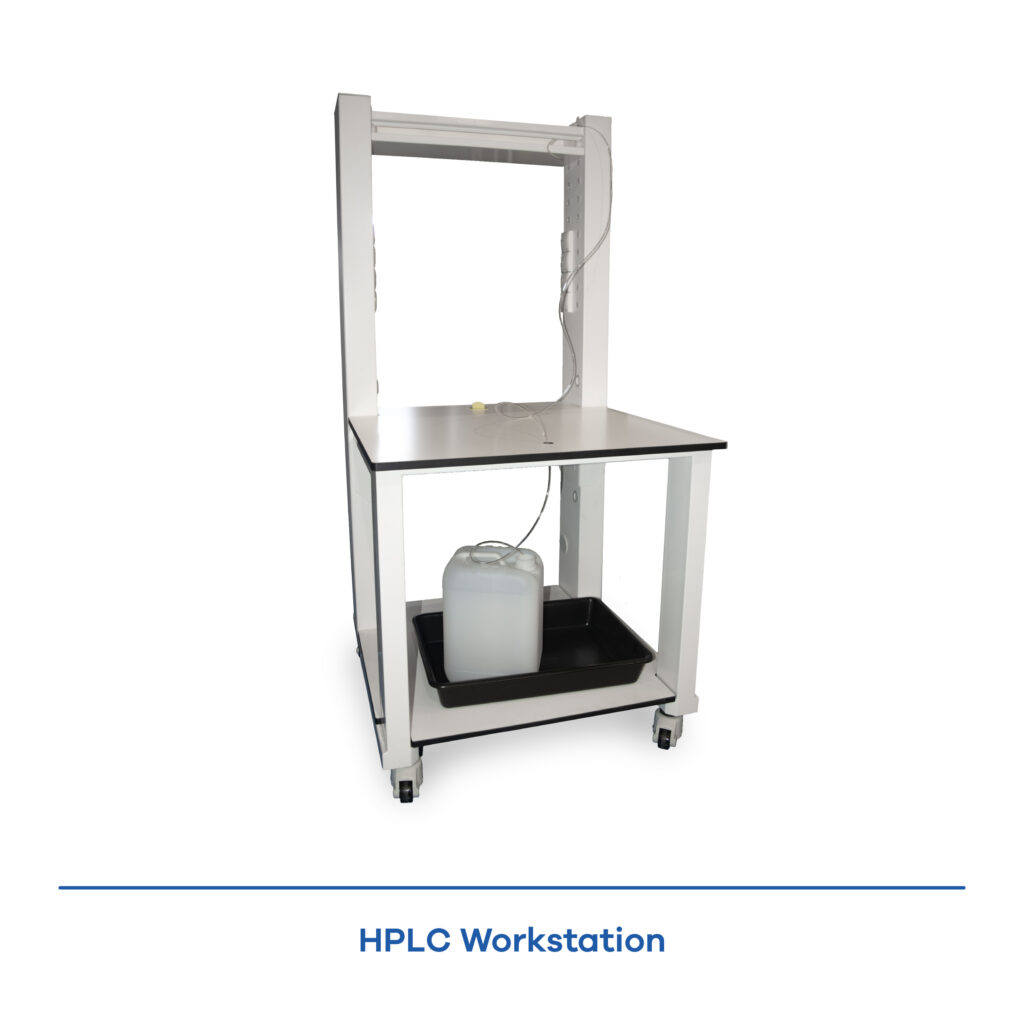

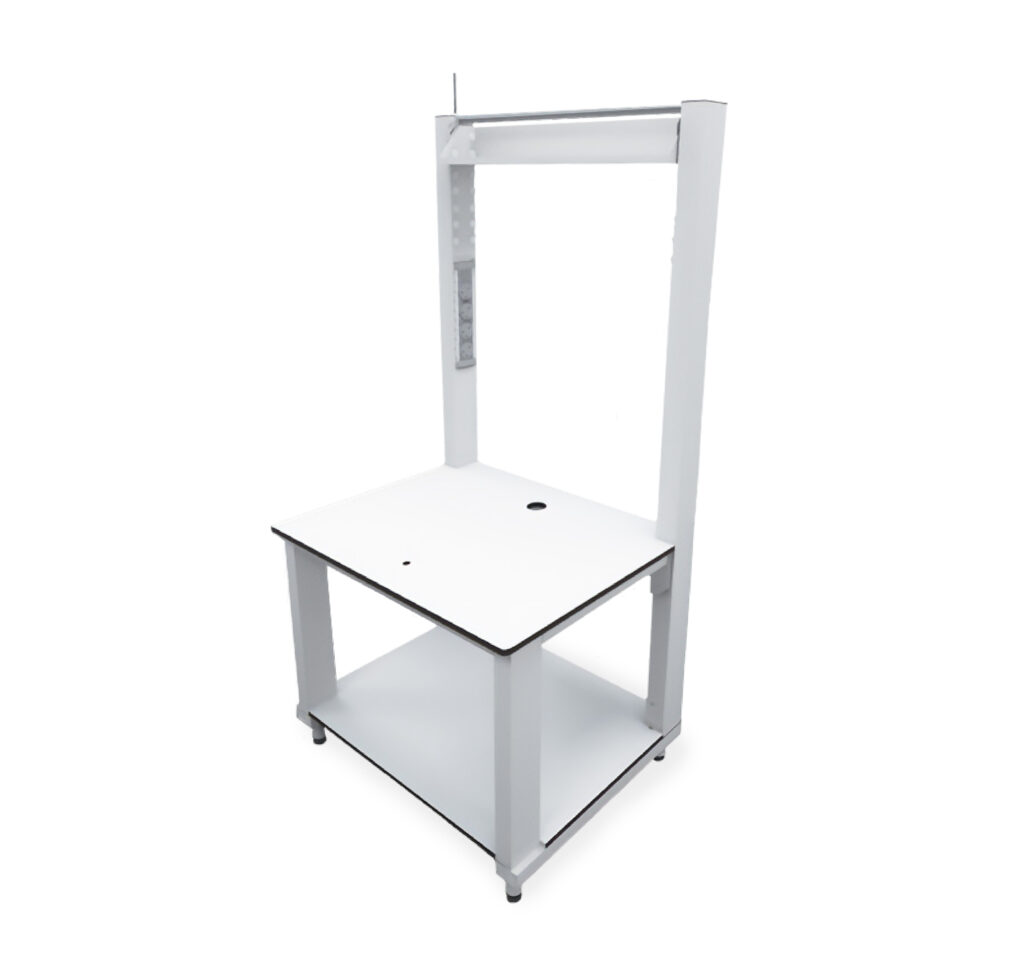

HPLC BARCELONA

Product specifications

Choose from a range of configurations, starting with a customized bench tailored to your space.

• 1.500 mm
• 1.200 mm
• 900 mm
• 750 mm

• 750 mm
• 900 mm

• 750
• 650

• 1.570 mm
• 1.800 mm

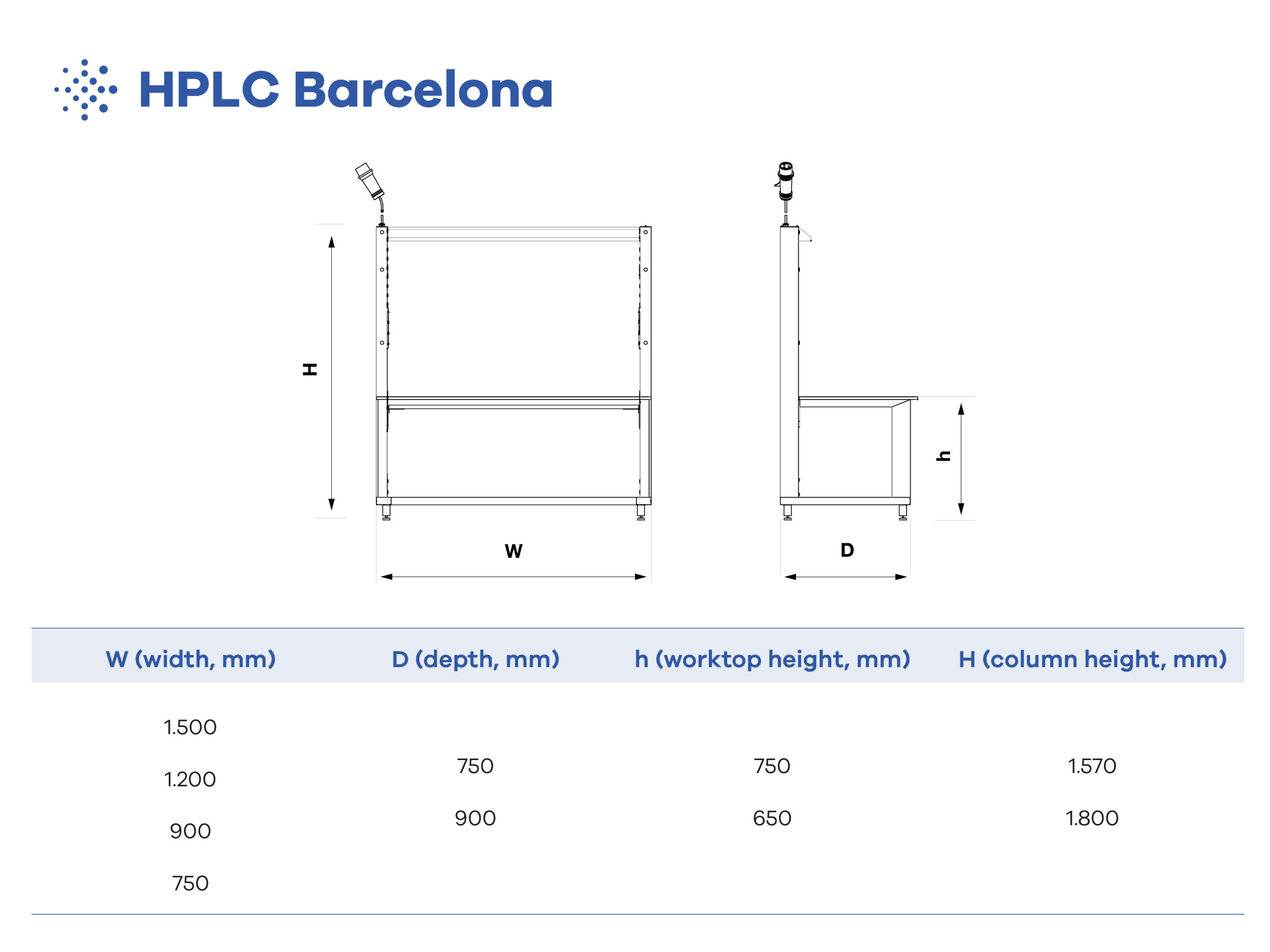

Click to view technical sheet detail

Max. load - 350 kg

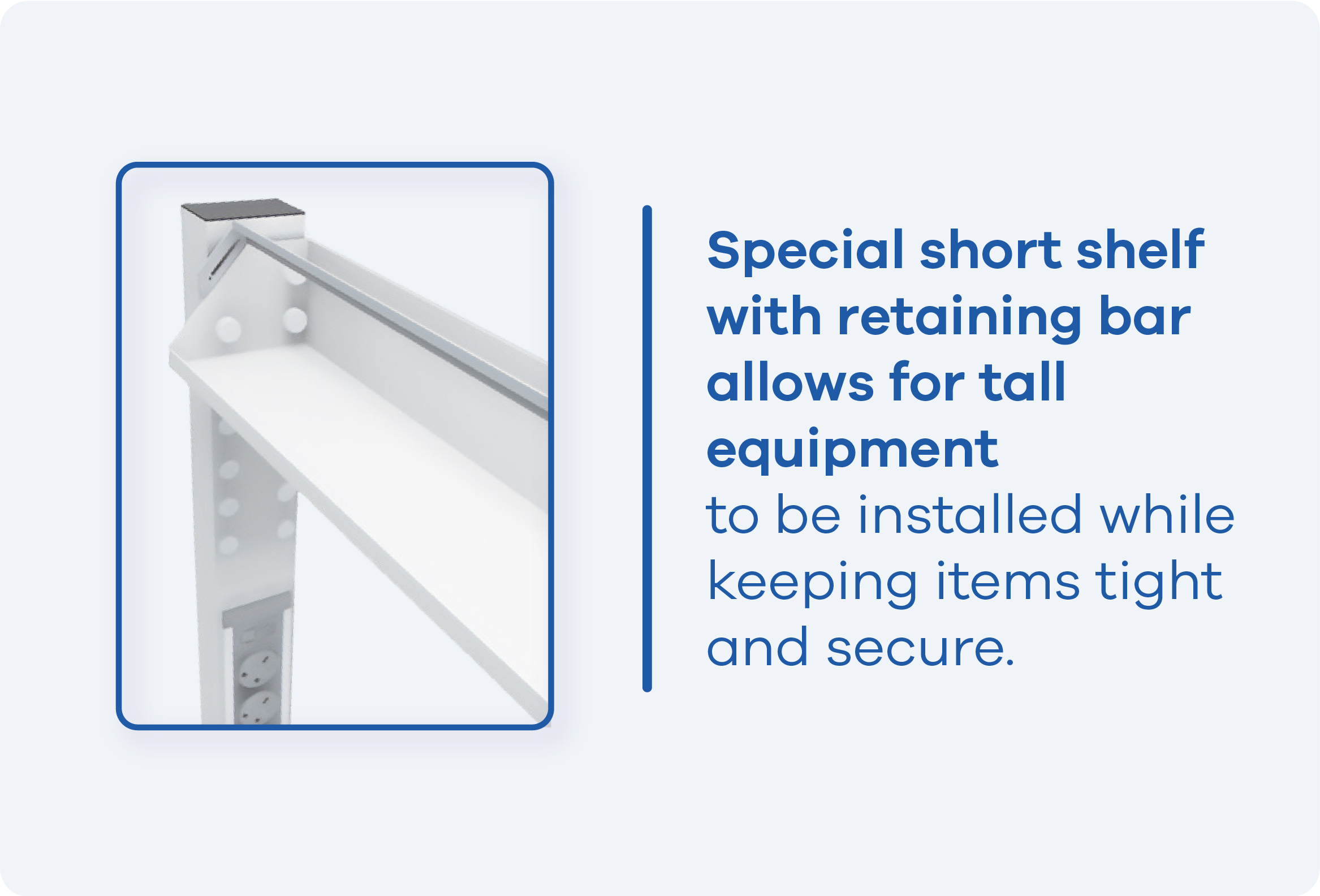

  • Power supply side can be switched left to right and viceversa. Check accesories pages to see how shelves can be added, removed and changed position.

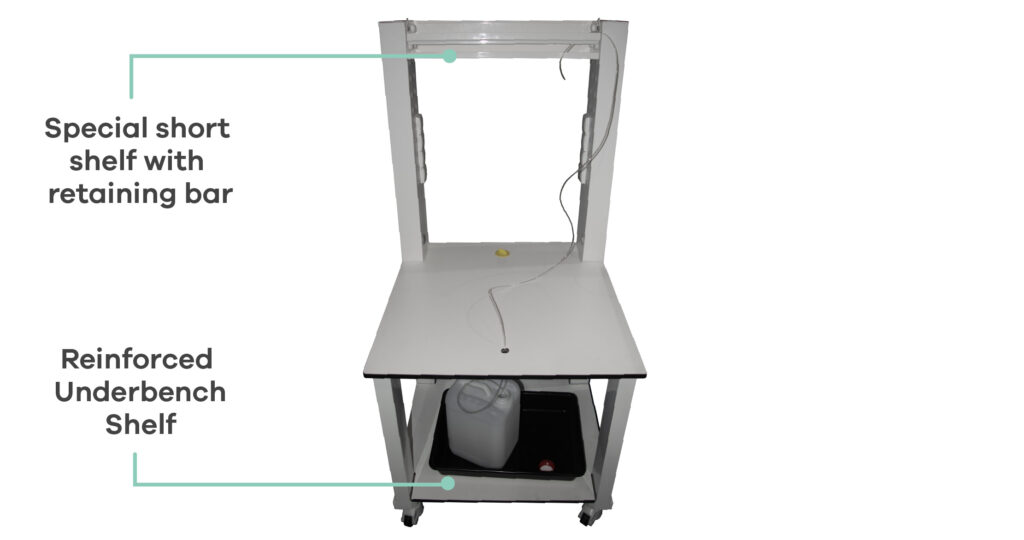

  • Underbench shelf available.
    (highly advised for waste collection).

  • Gas taps can be attached to column.

  • Some other options available.

  • In addition, special accesory attachments can be designed and manufactured on demand.

  • Main frame fully welded steel, epoxy coated 9010 (check other options) with M5 nuts below worktop for accesories and attachments.

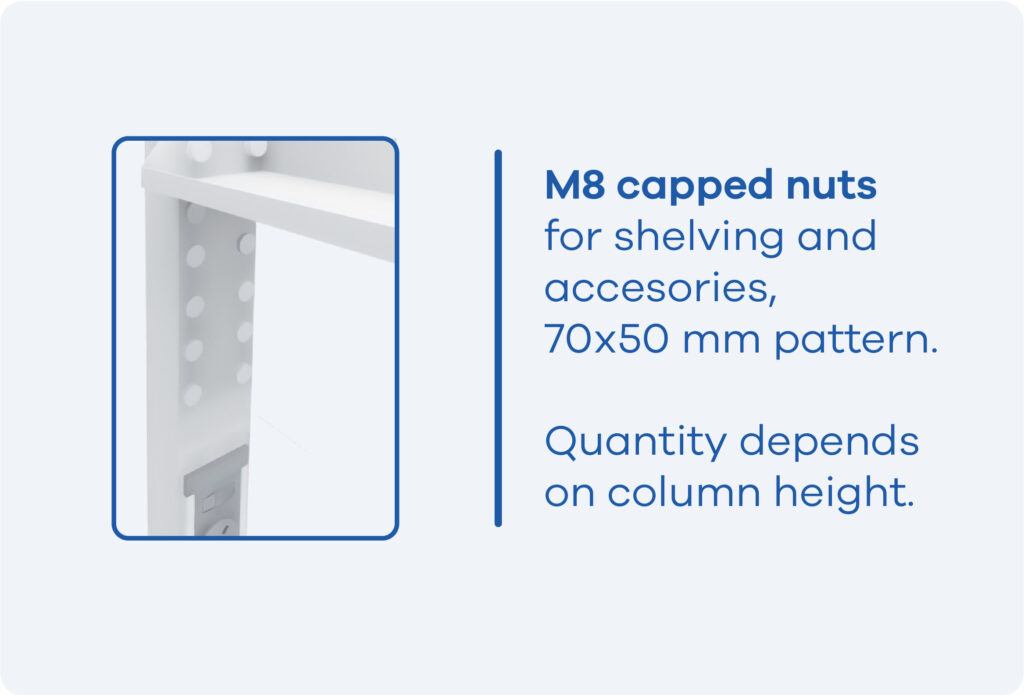

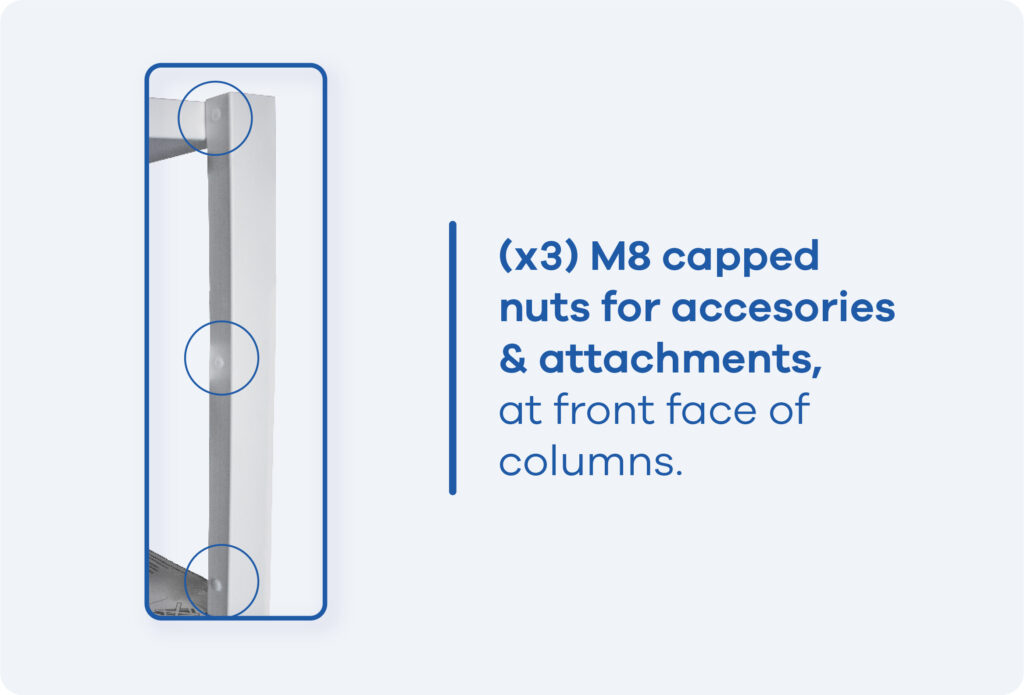

  • Columns manufactured in steel tube bolted to main frame, epoxy coated 9010 (check other options), with M8 nuts at internal faces for accesories. Nuts in front faces as an option.

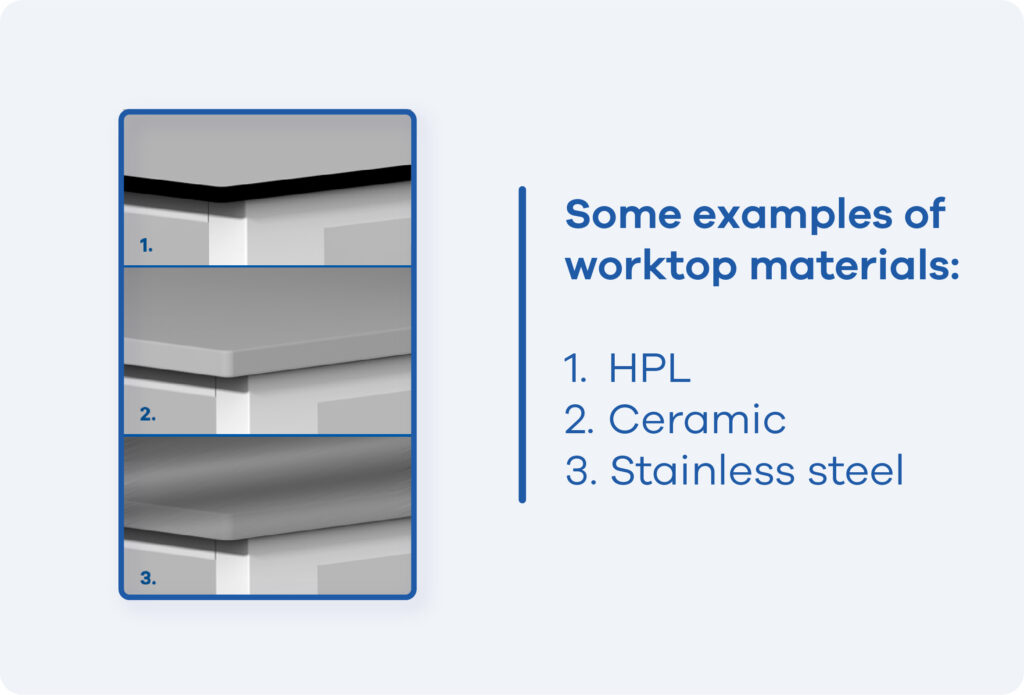

  • Worktop material on demand. Advised HPL 16 mm high chemical resistance.

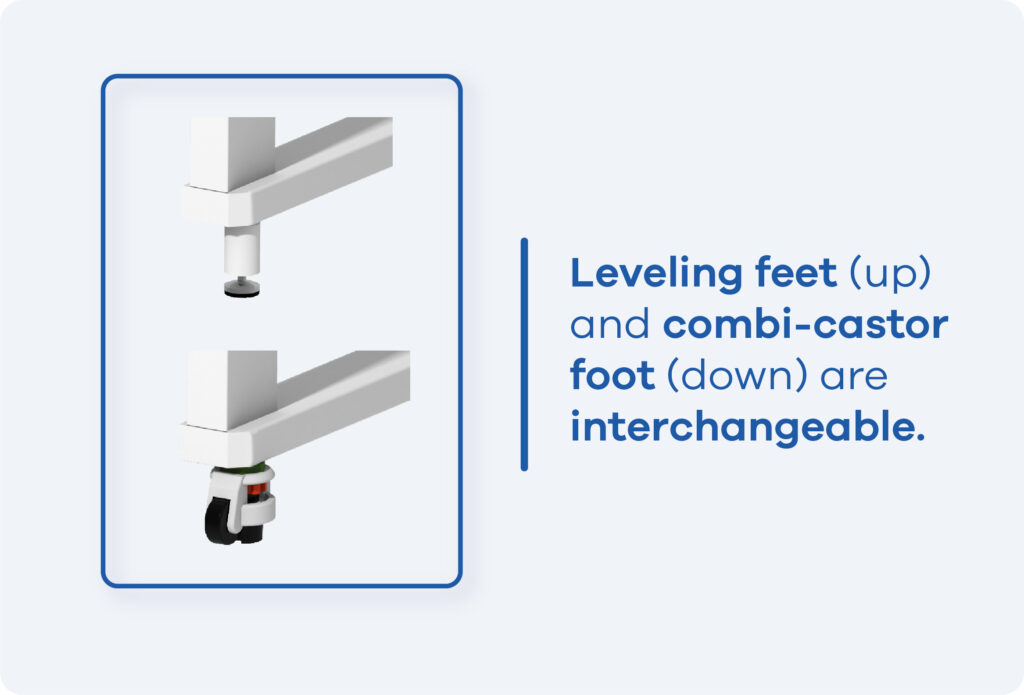

  • Feet, articulated with rubber base, interchangeable with combi castor-foot.

  • Data setup on demand, advised to be magnet clip-routed.

  • Plug + Play interchangeable set-up.

Contact us at:

hello@ibr-innovasystem.com

for any special configuration or in case you need a specific type of accesory.
