Equipment

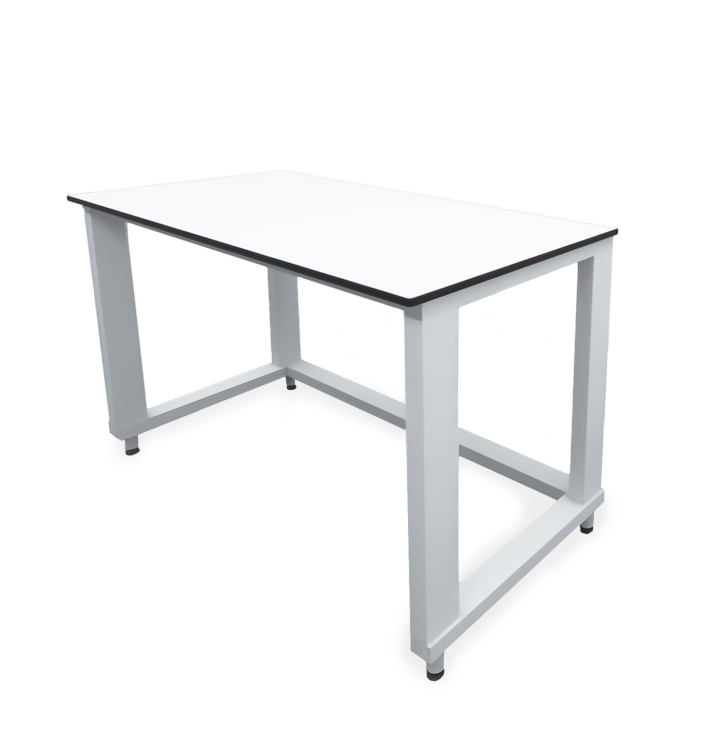

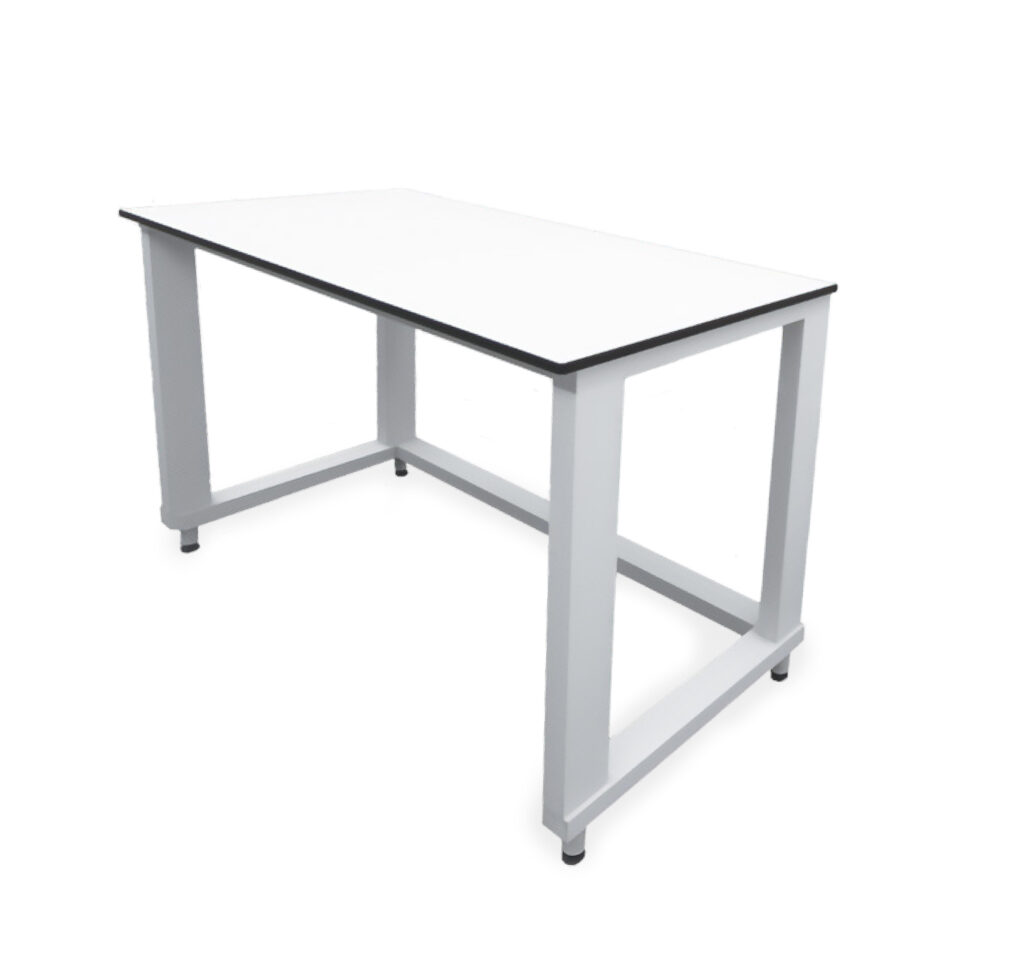

BENCH

Choose from a range of configurations, starting with a customized workstation tailored to your space.

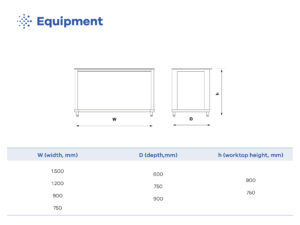

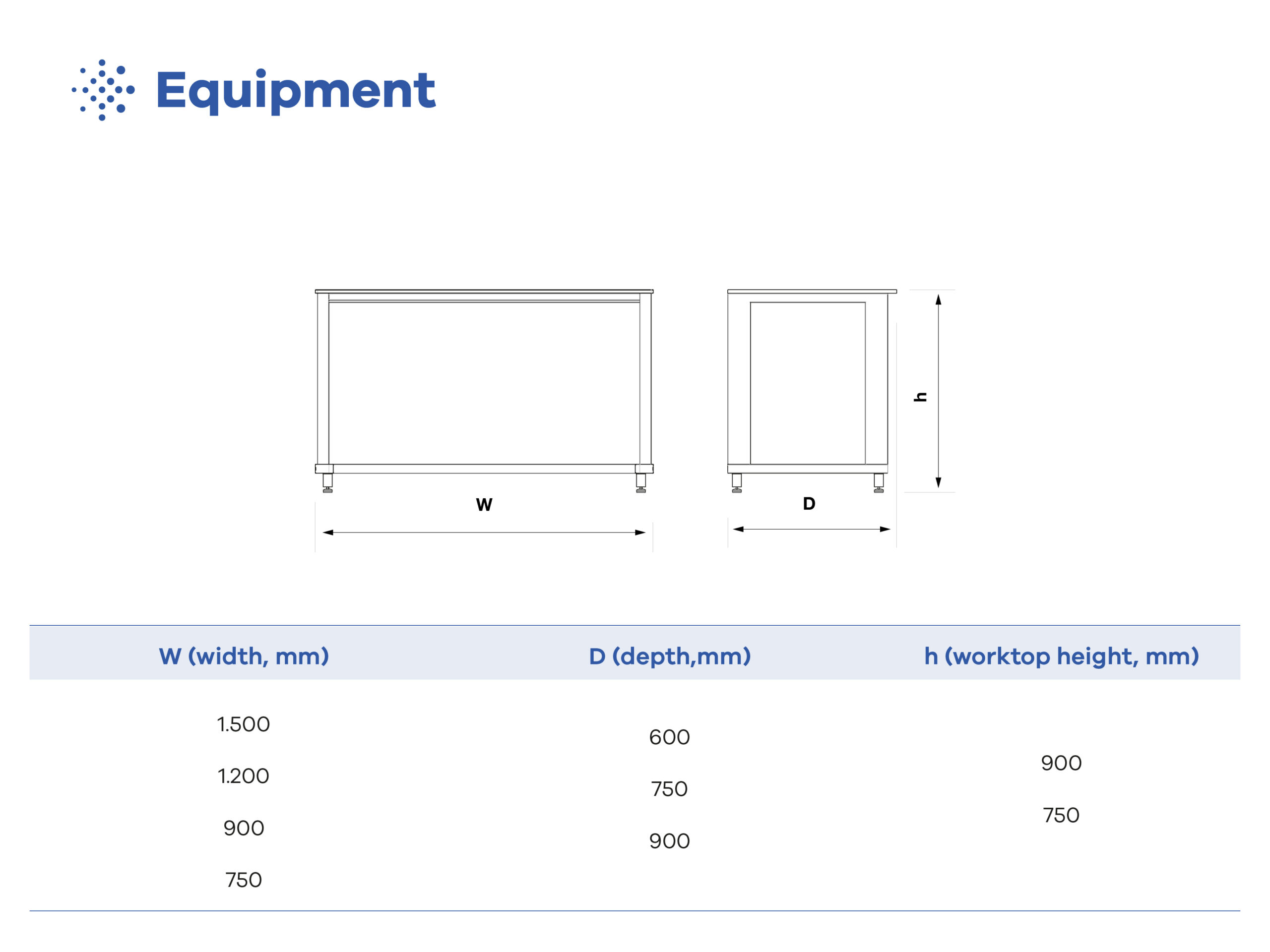

W (Width, mm)

1.500

1.200

900

750

D (Depth, mm)

600

750

900

–

h (Worktop height, mm)

–

900

750

–

Check accesories pages to see how:

Underbench shelf available.
Some other options available.
In addition, special accesory attachments can be designed and manufactured on demand.

Main frame fully welded steel, epoxy coated 9010 (check other options) with M5 nuts below worktop for accesories and atachments.
Worktop material on demand. Advised HPL 16 mm high chemical resistance.
Feet, articulated with rubber base, interchangeable with combi castor-foot.

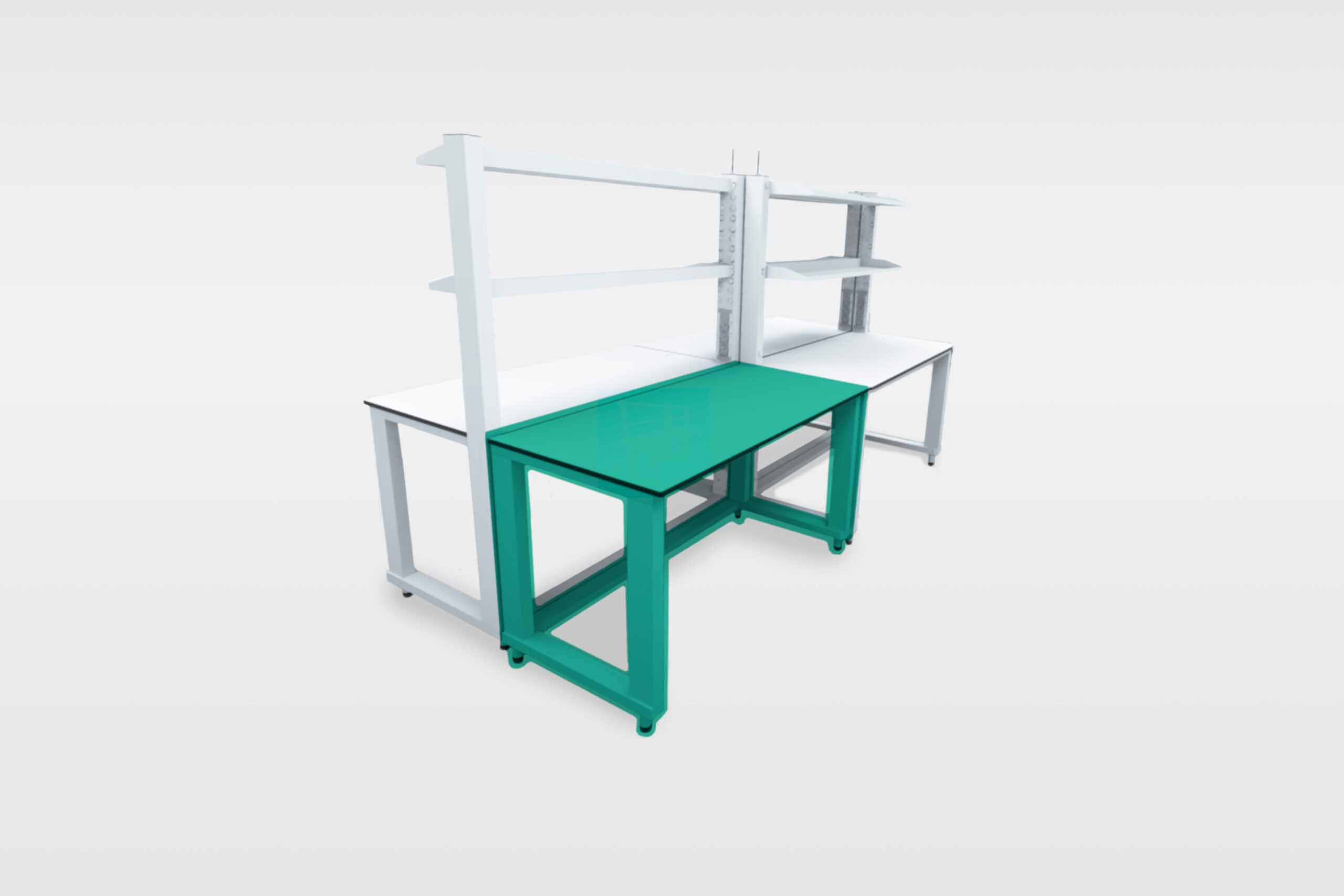

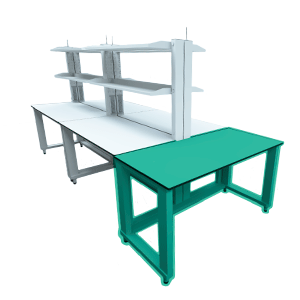

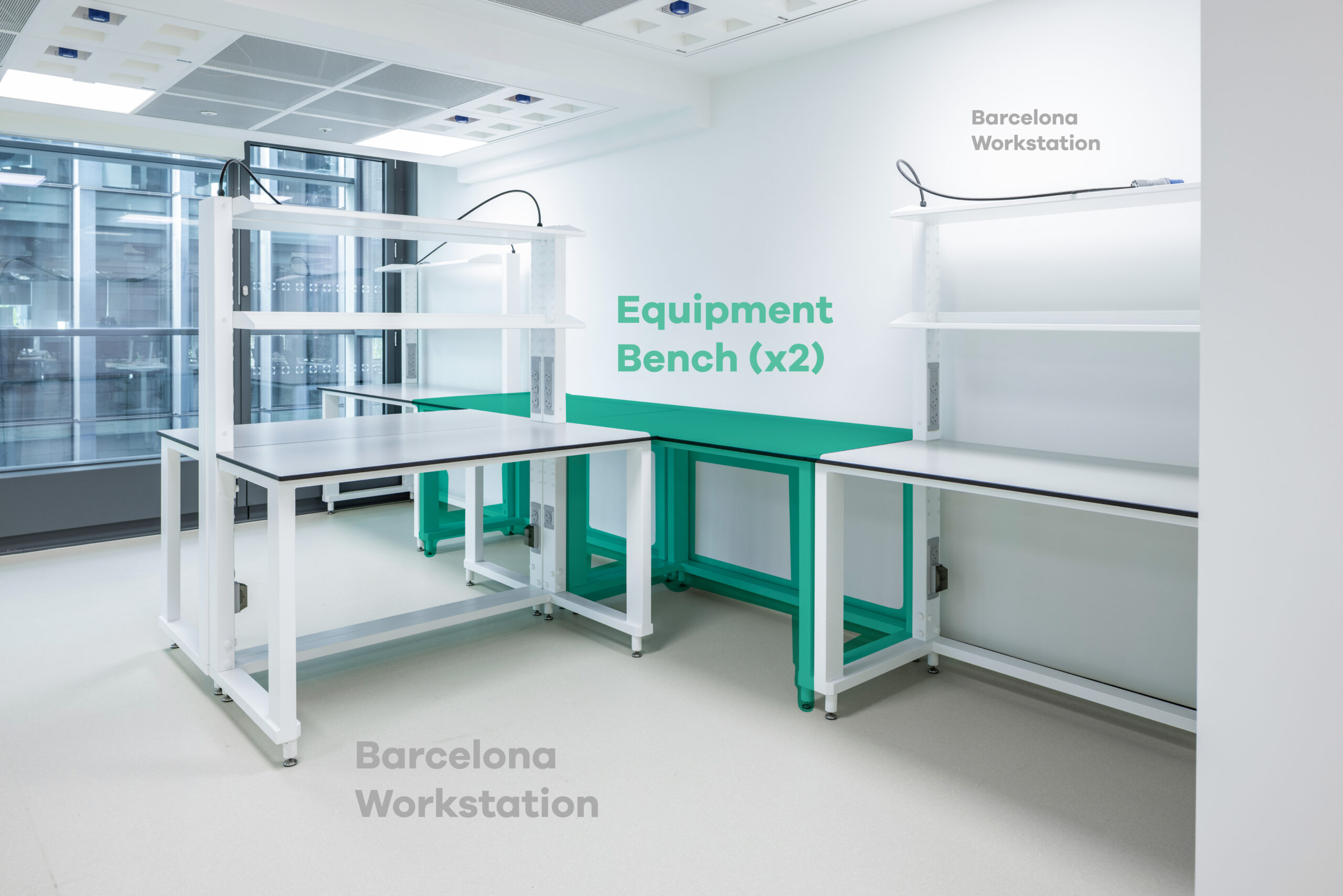

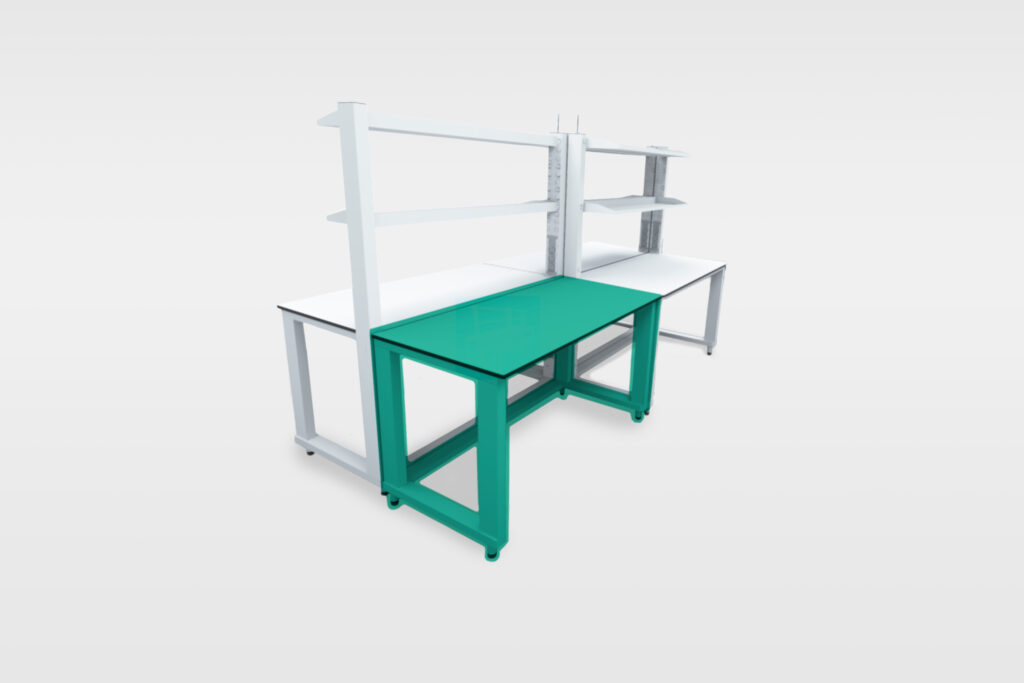

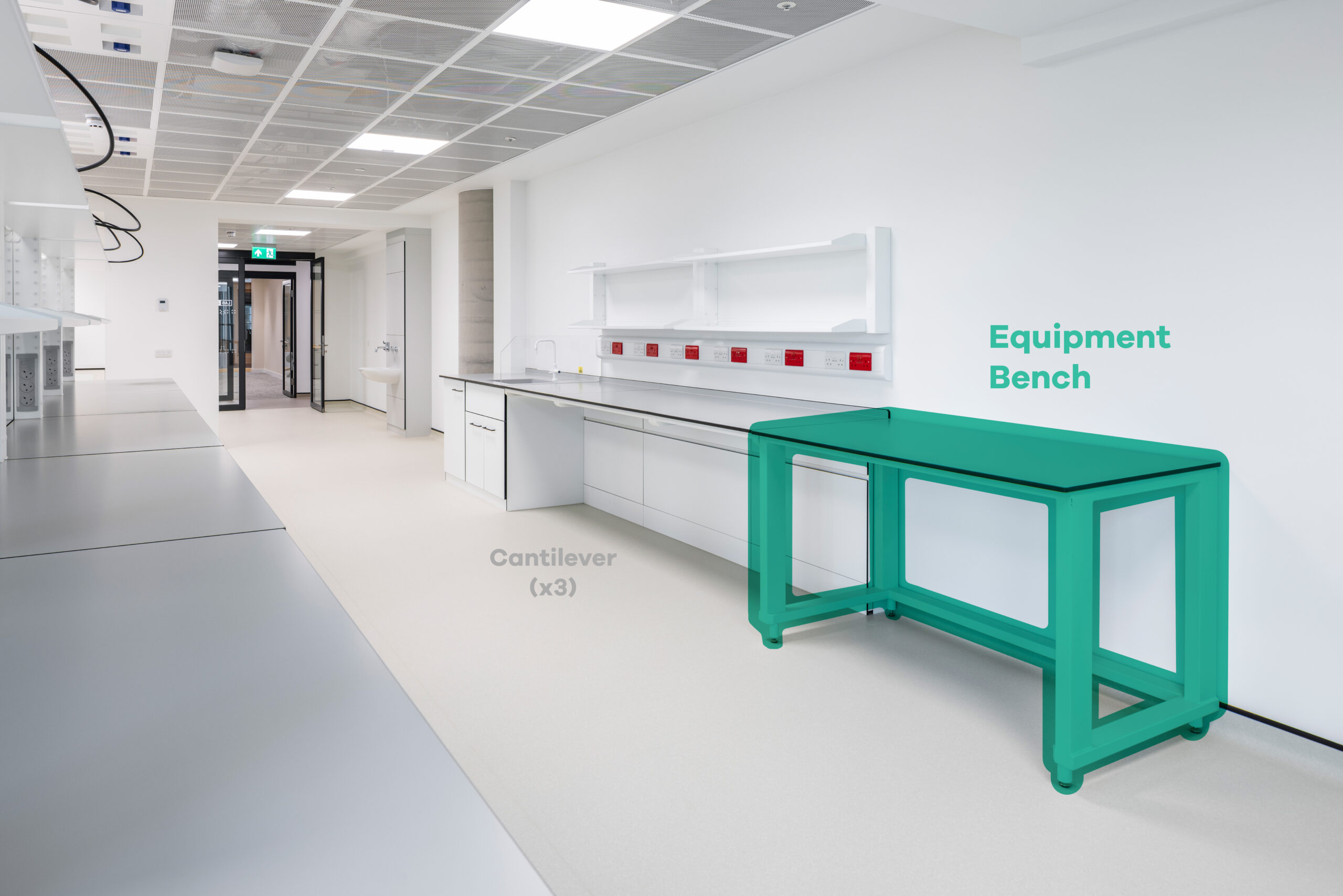

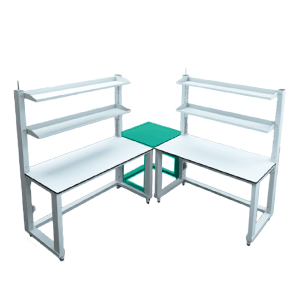

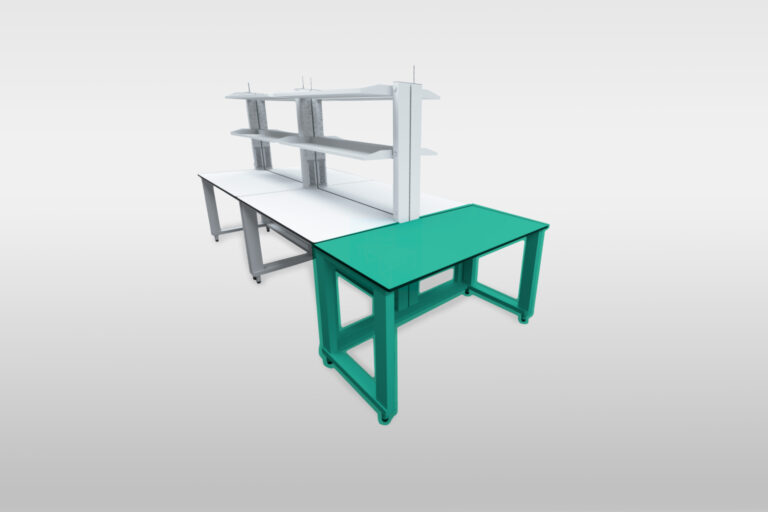

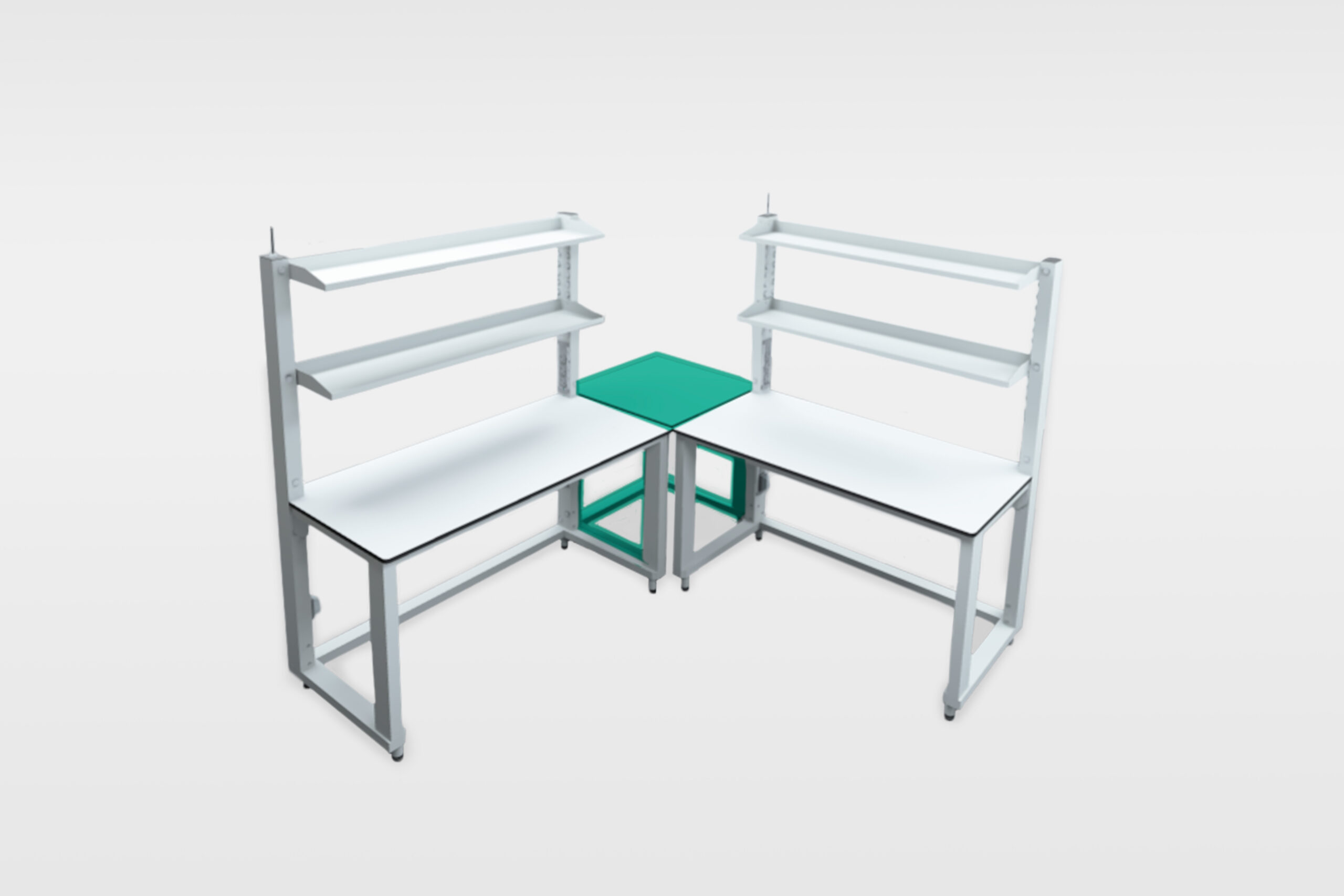

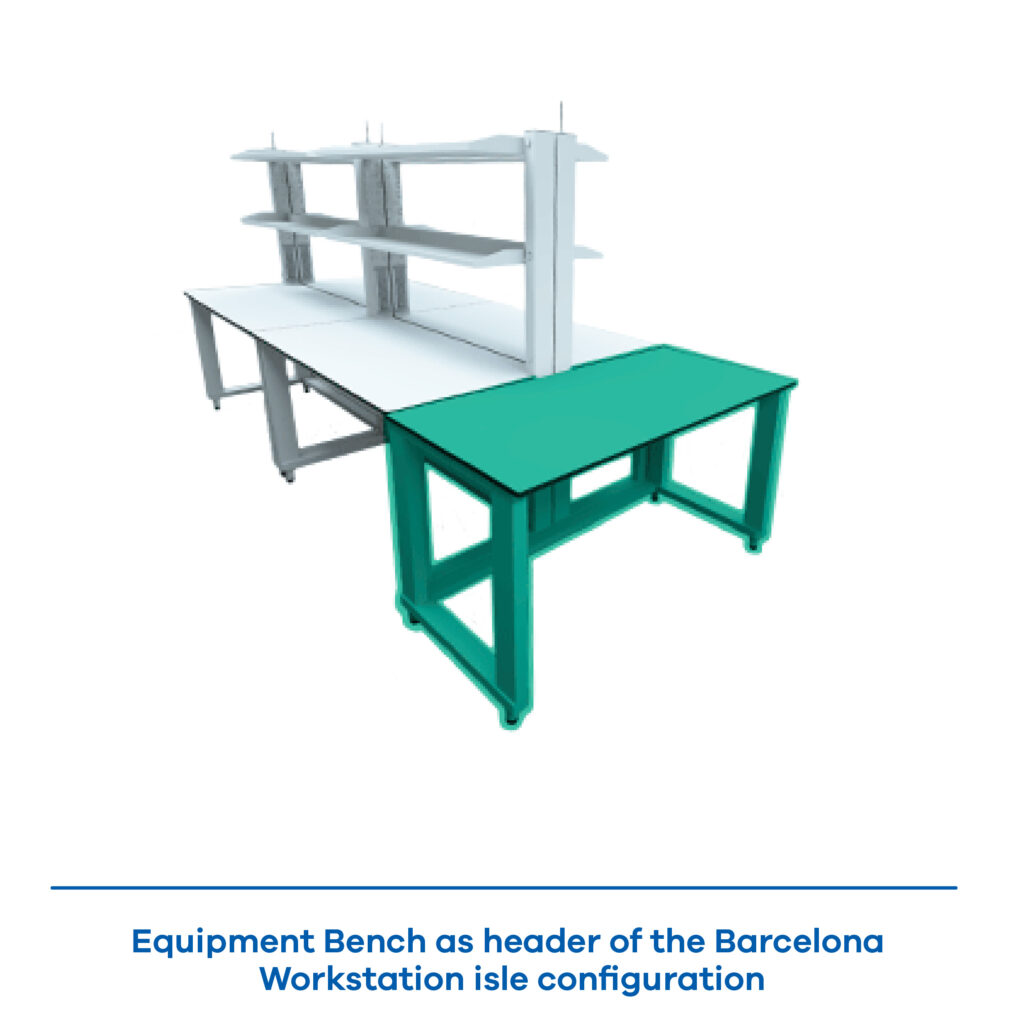

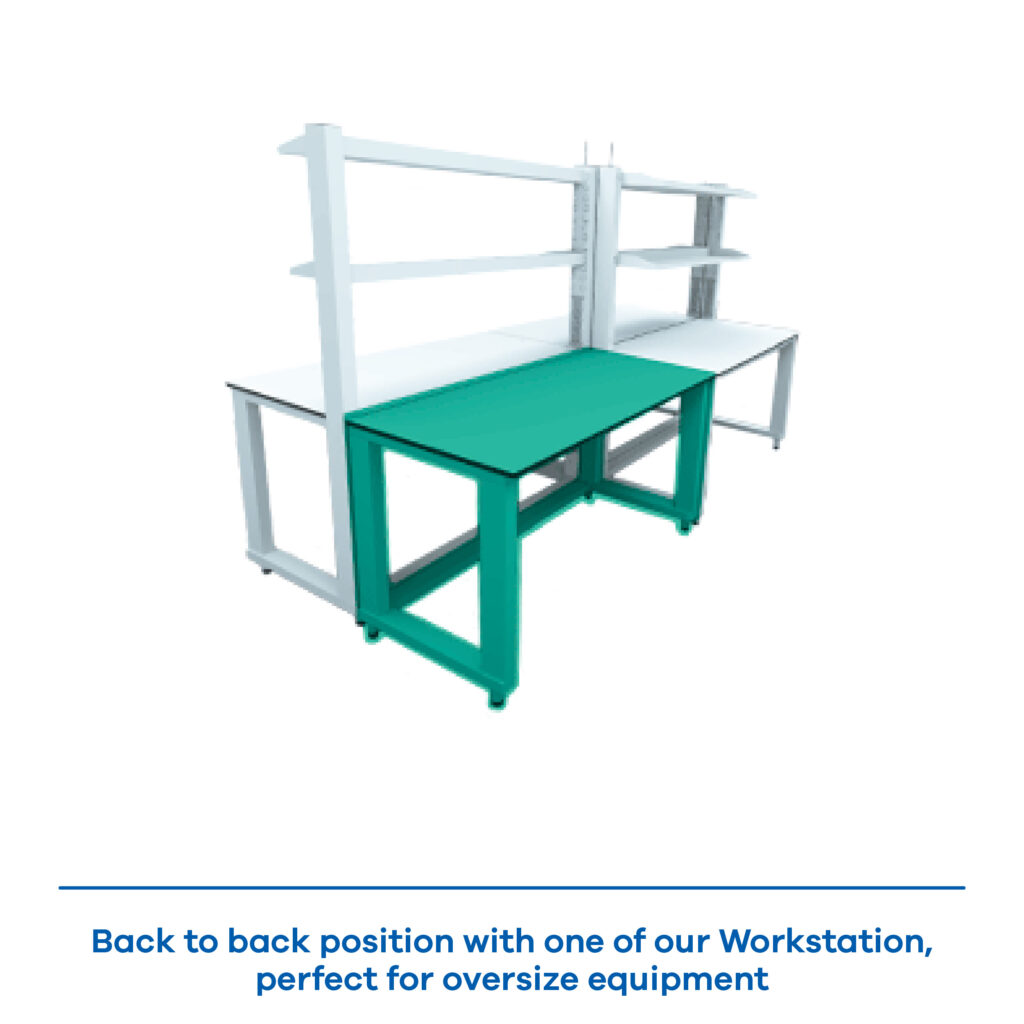

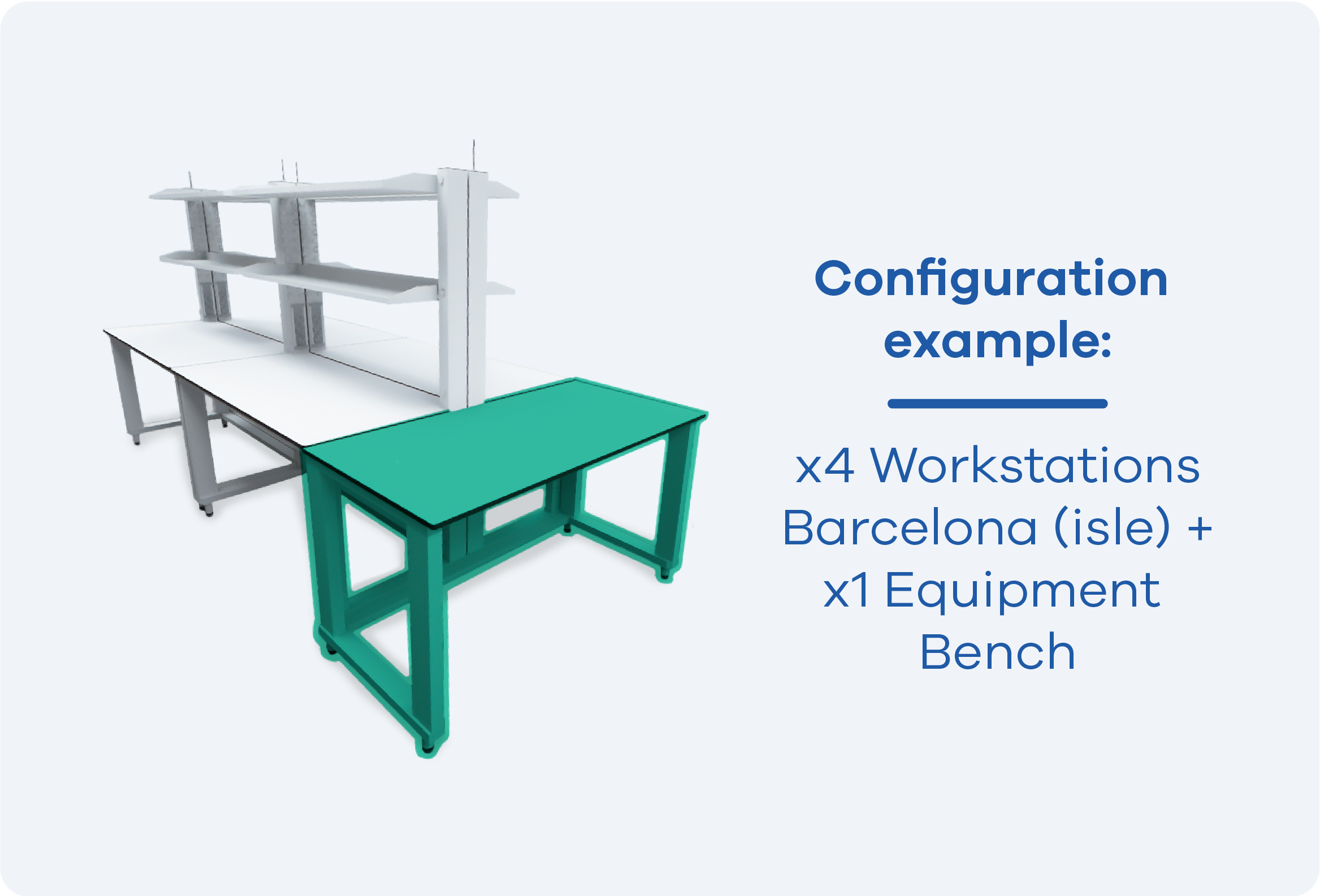

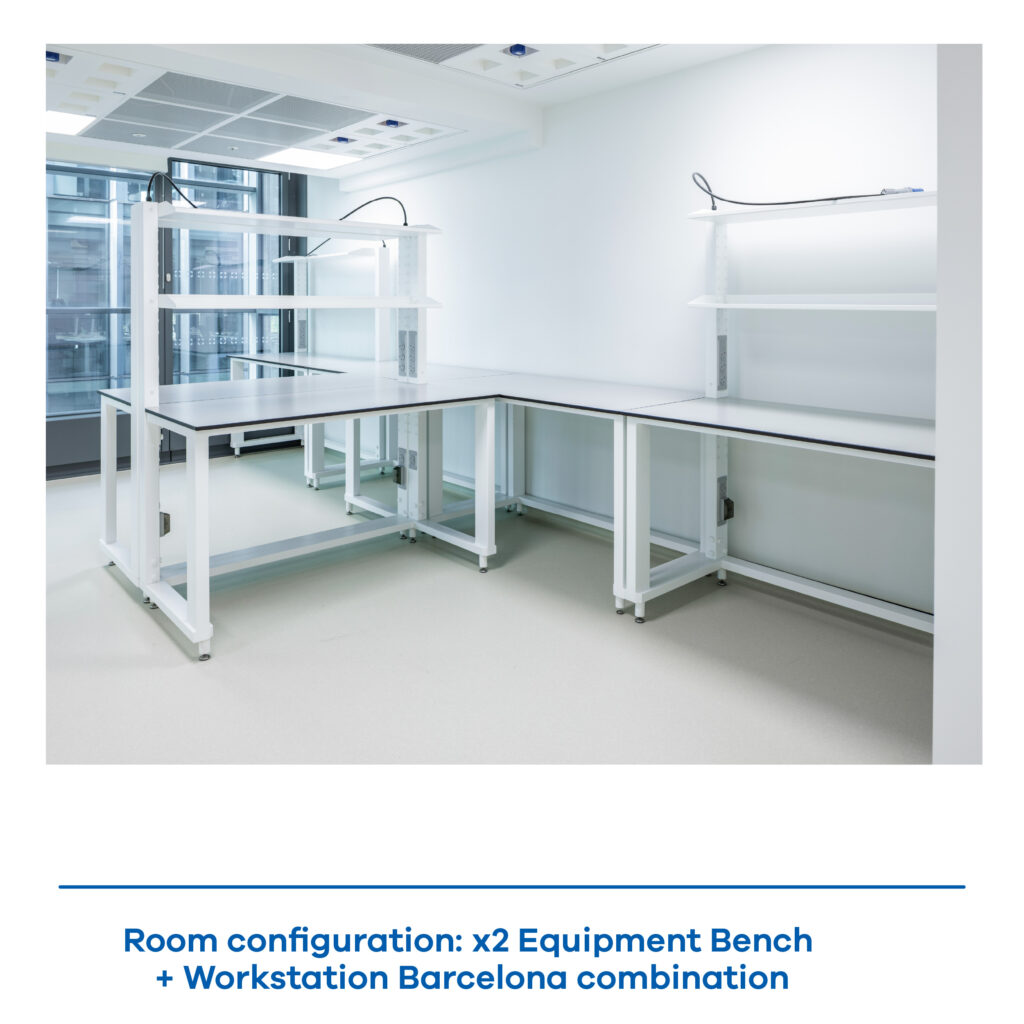

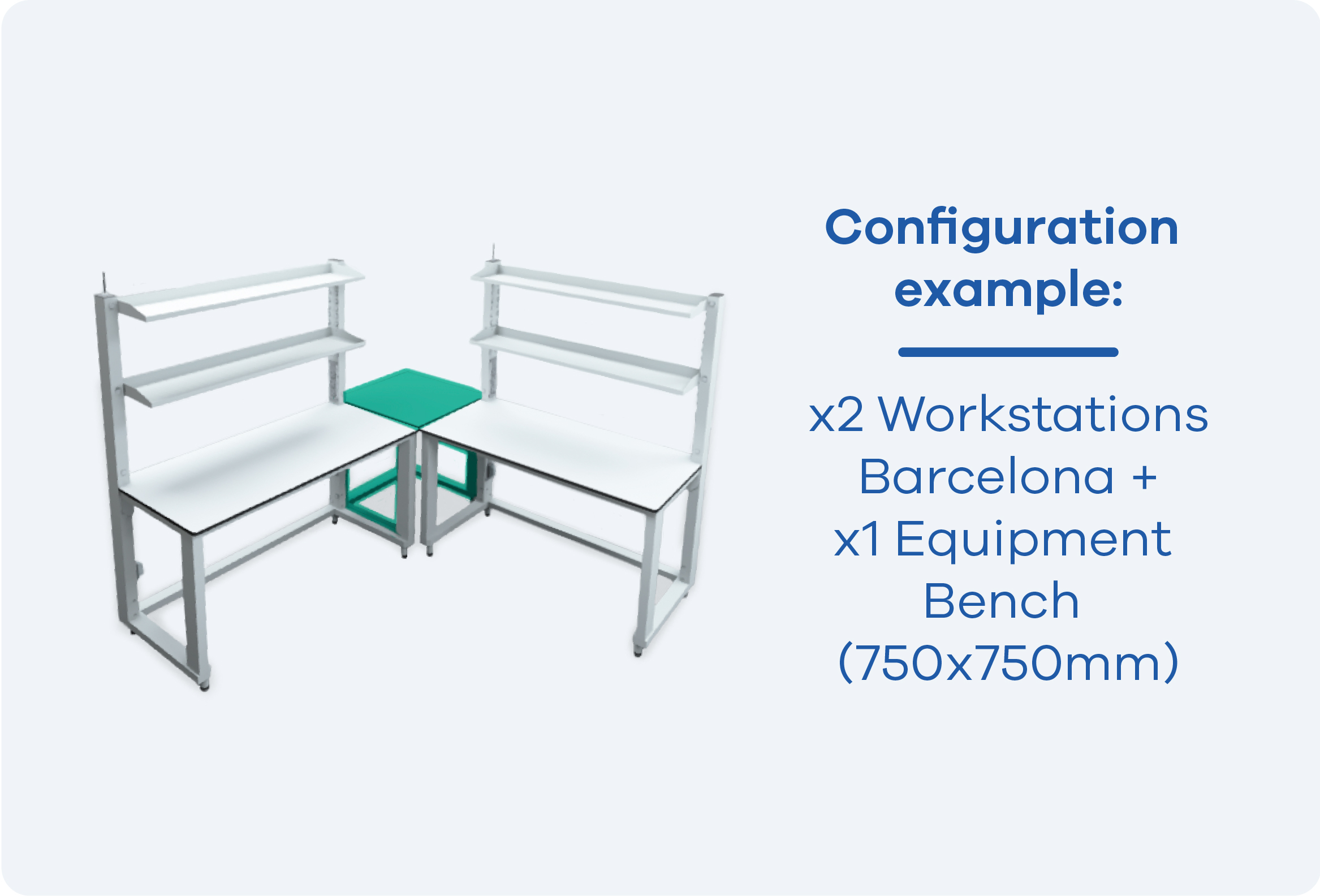

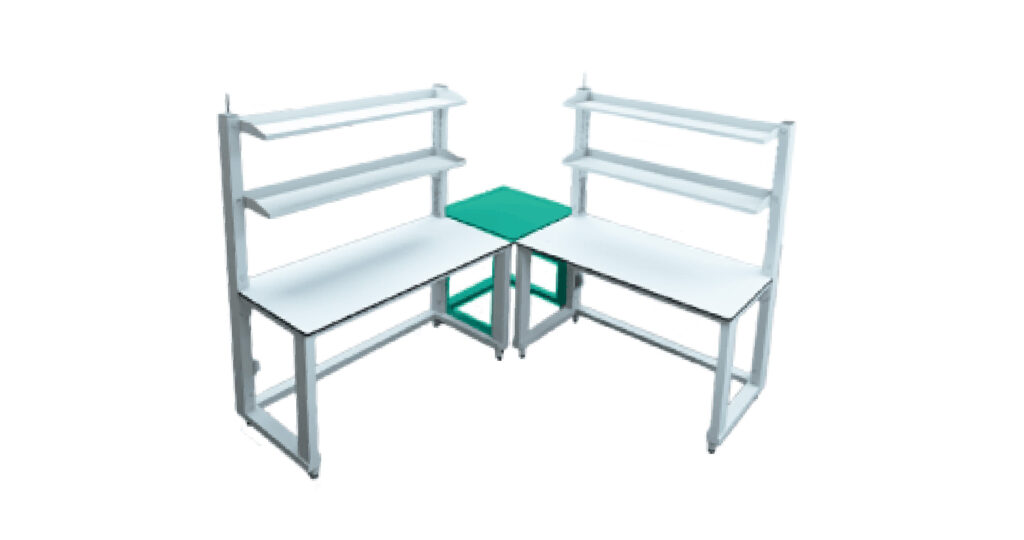

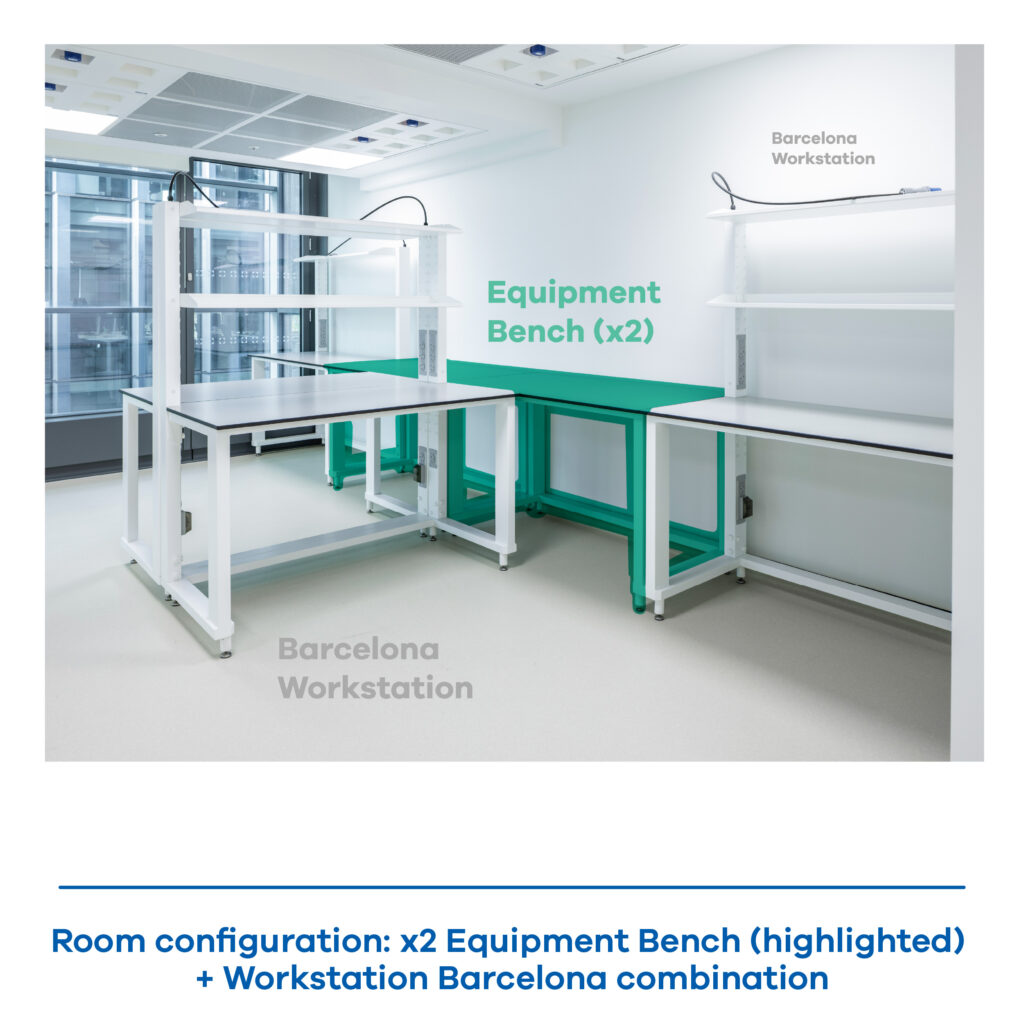

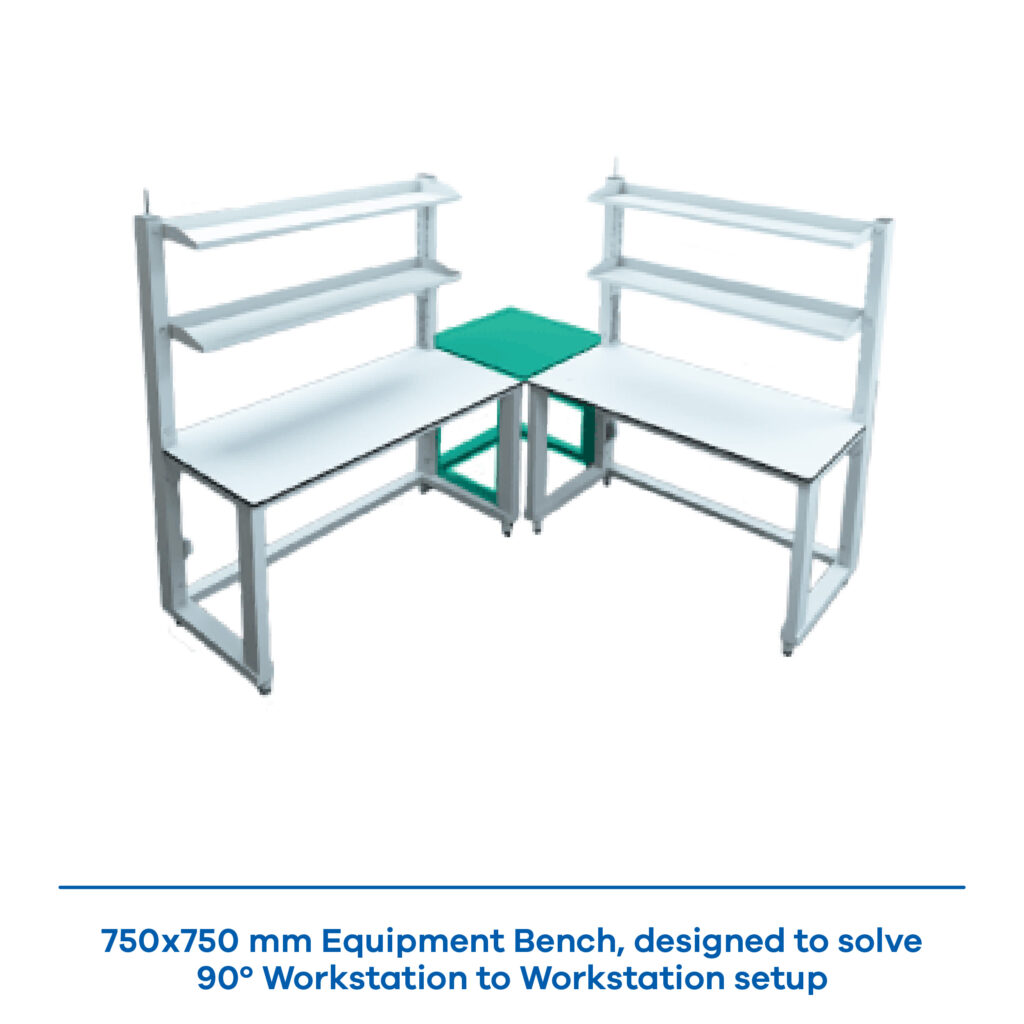

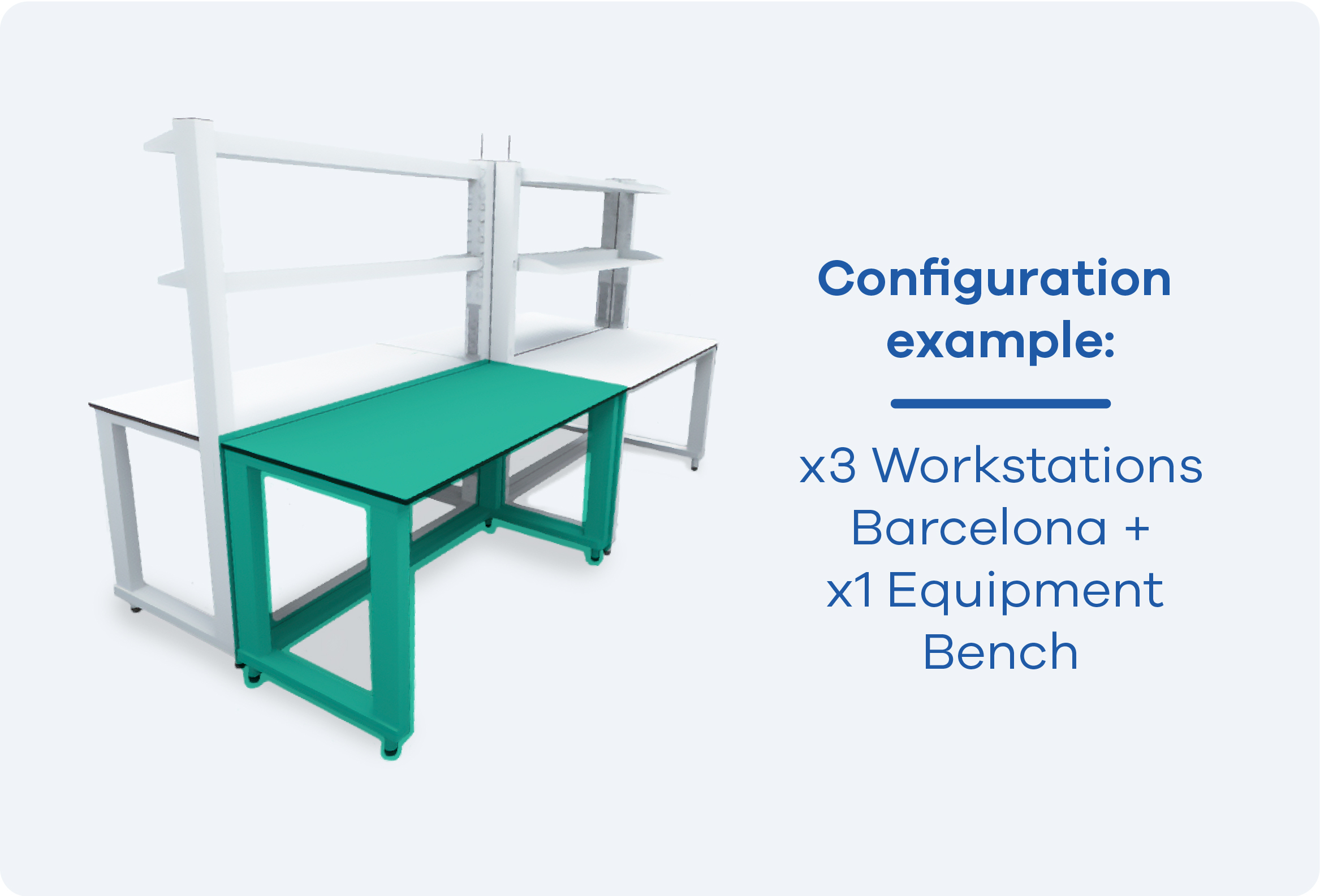

Main frame designed as our workstations, to match style and combine both products. Check suggestions below.

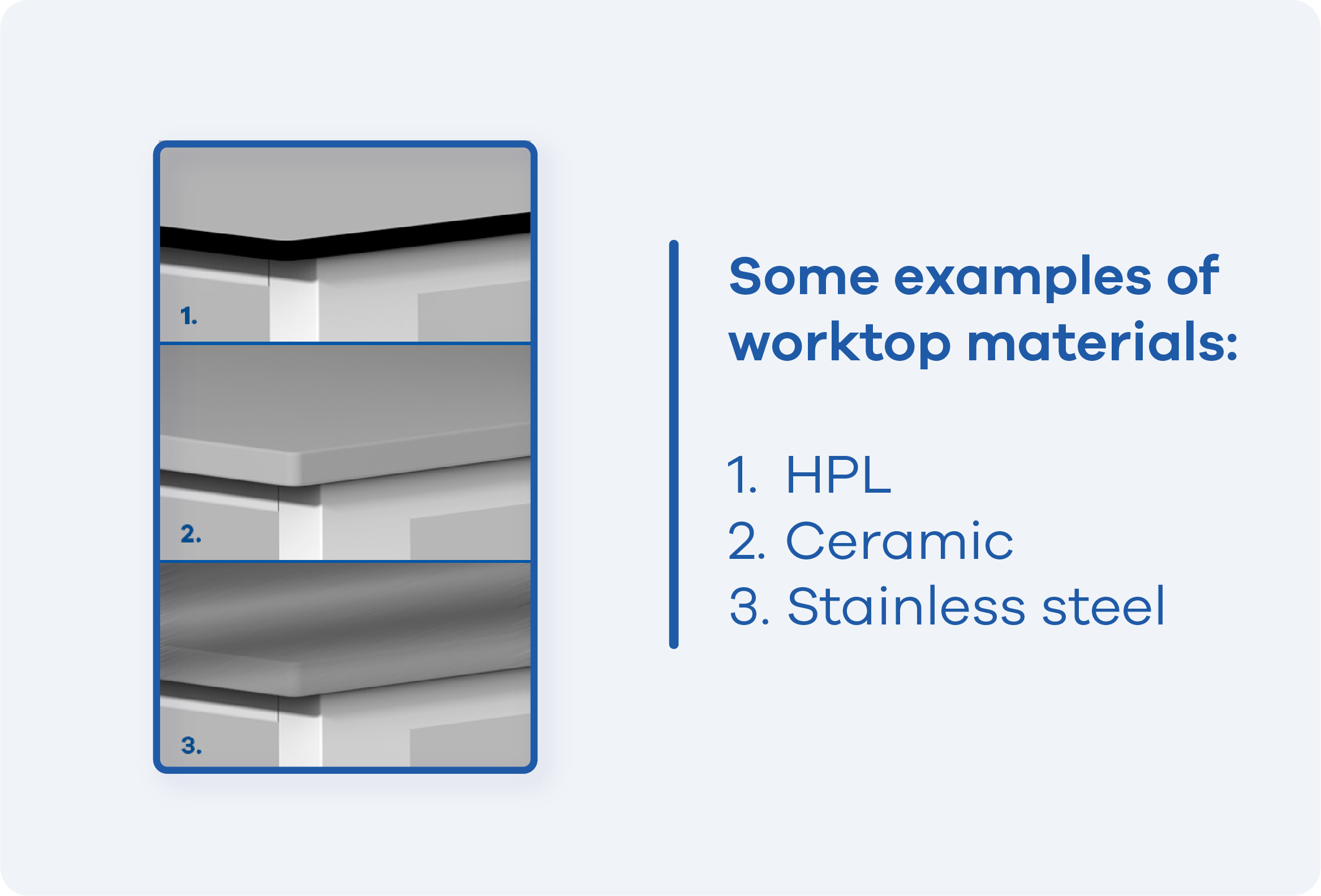

Some examples of worktop materials:

1. HPL
2. Ceramic
3. Stainless steel

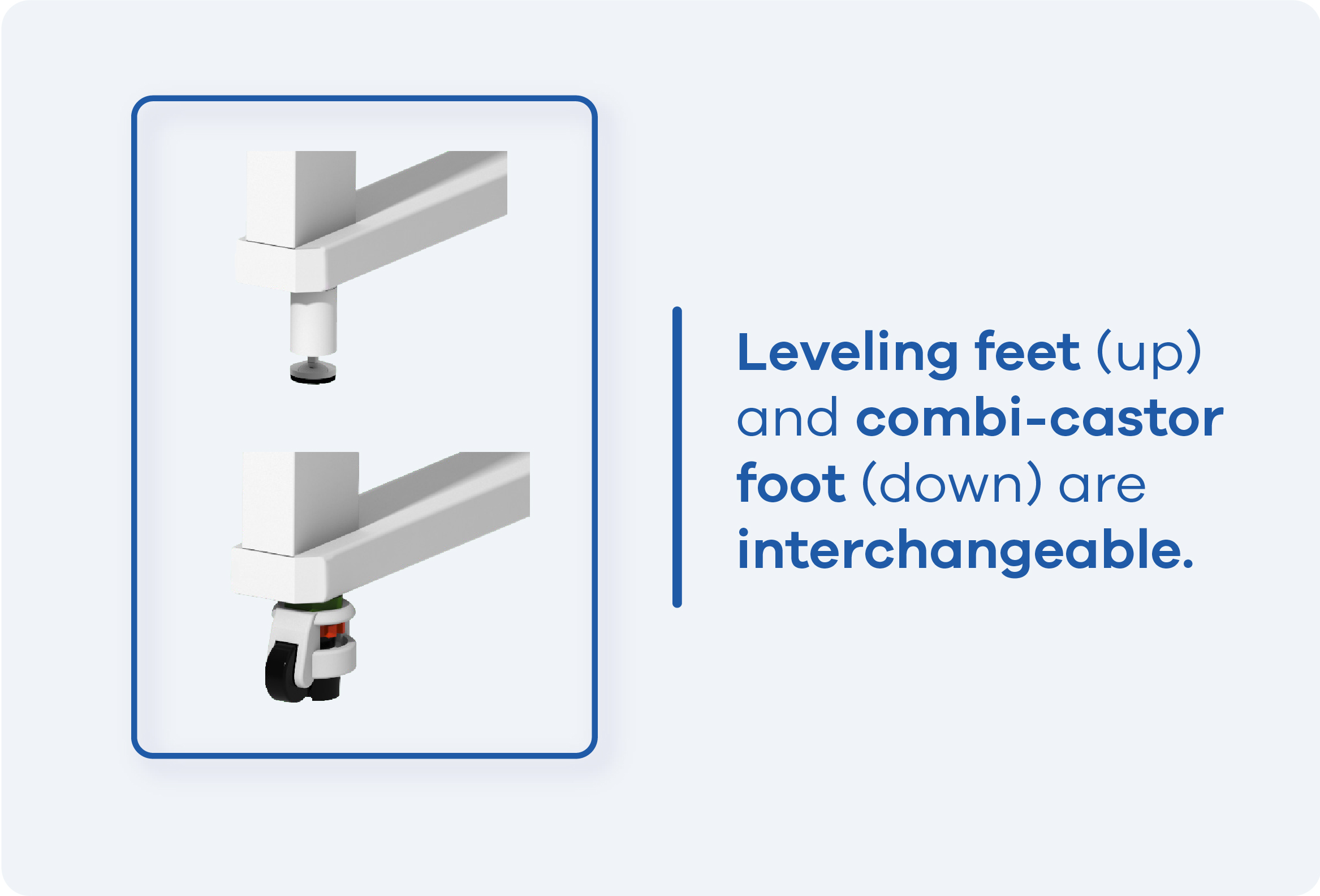

Leveling feet (up) and combi-castor foot (down) are interchangeable

(x12) M5 nuts provided below worktop, in pairs distanced 95 mm between axis (distance between pairs depends on bench size).

Contact us at:

hello@ibr-innovasystem.com

for any special configuration or in case you need a specific type of accesory.
