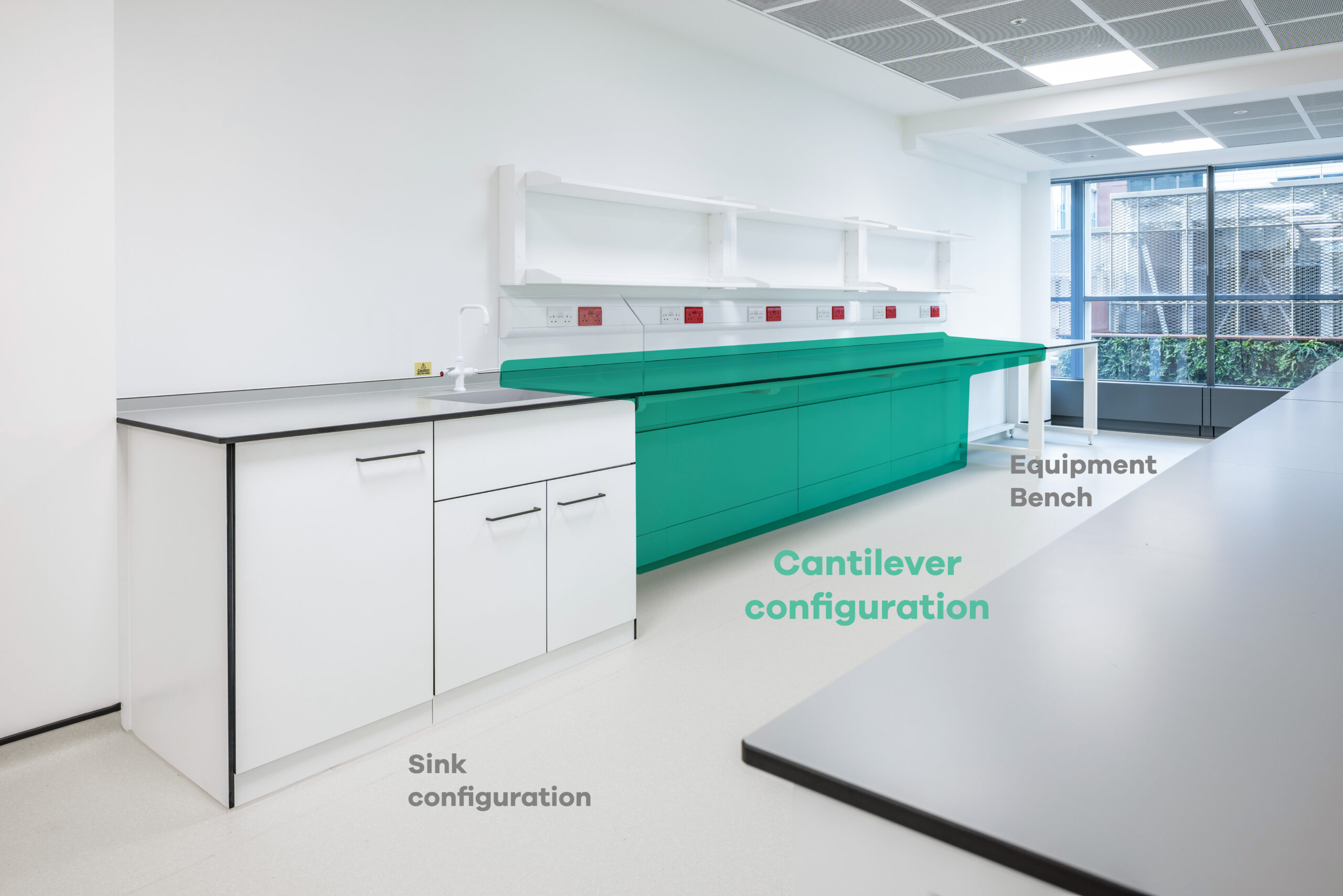

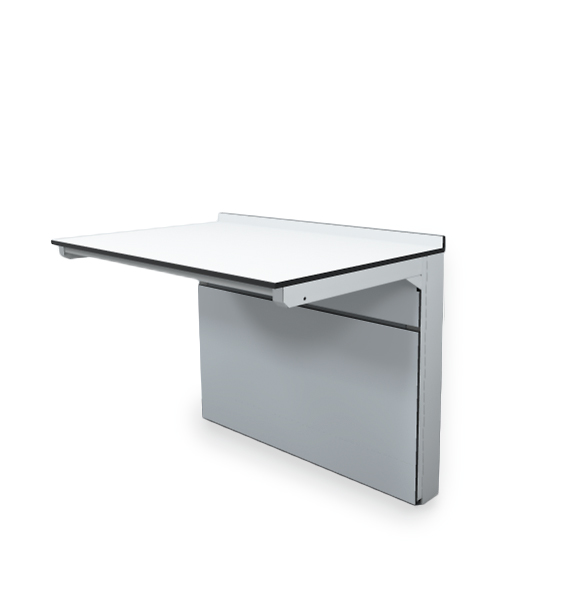

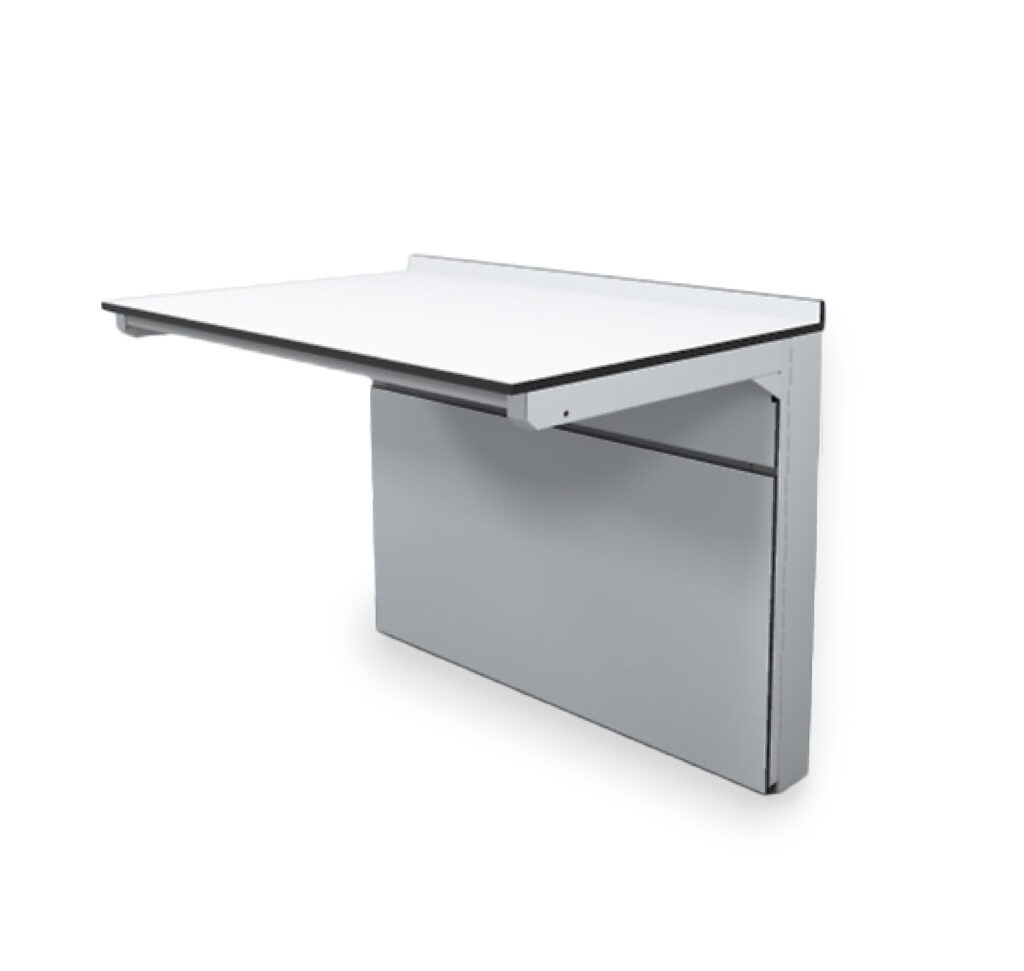

BENCH

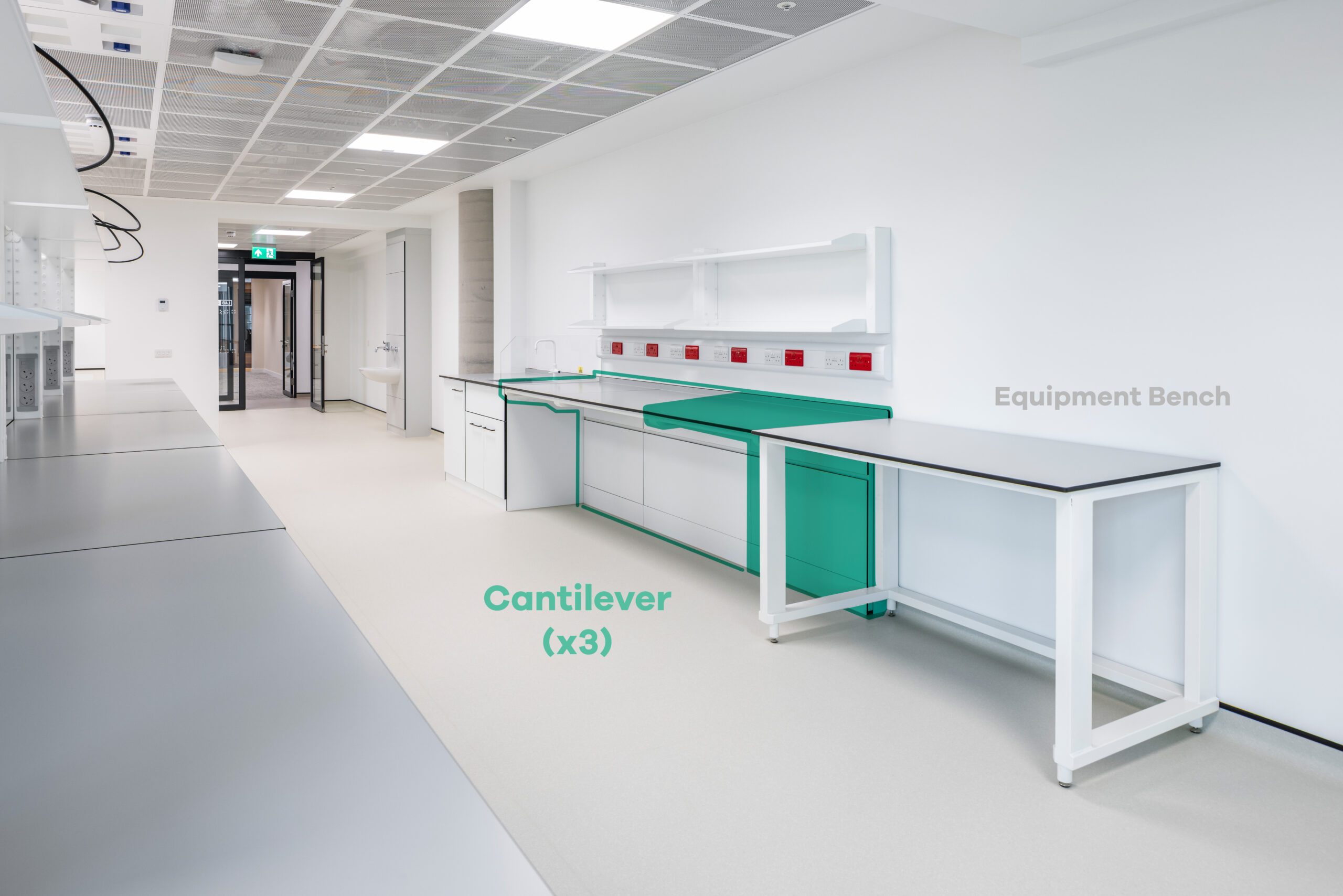

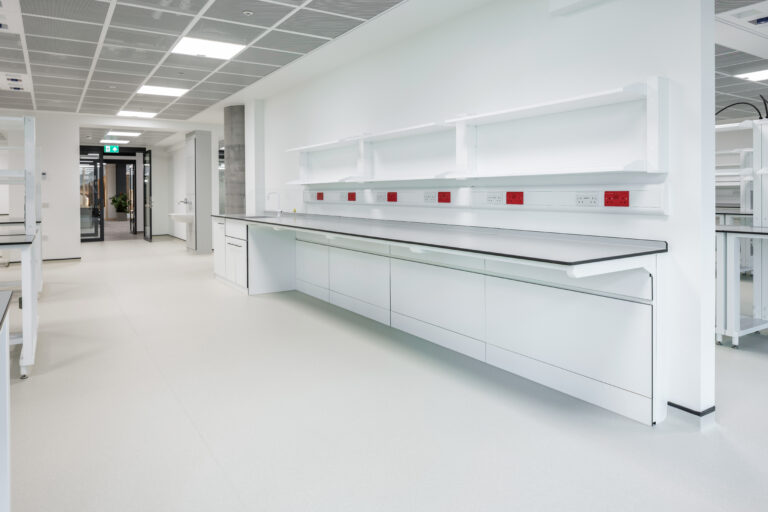

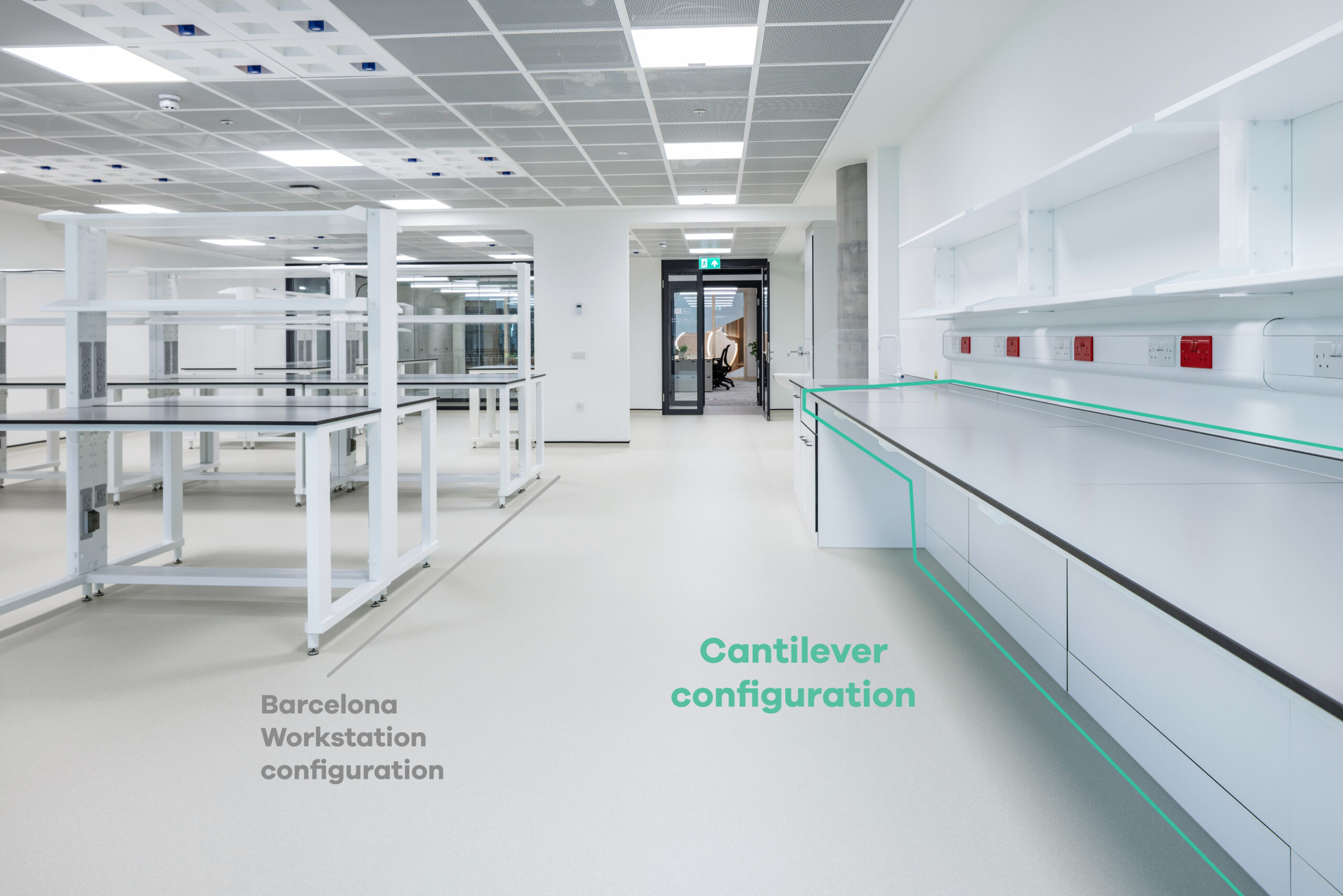

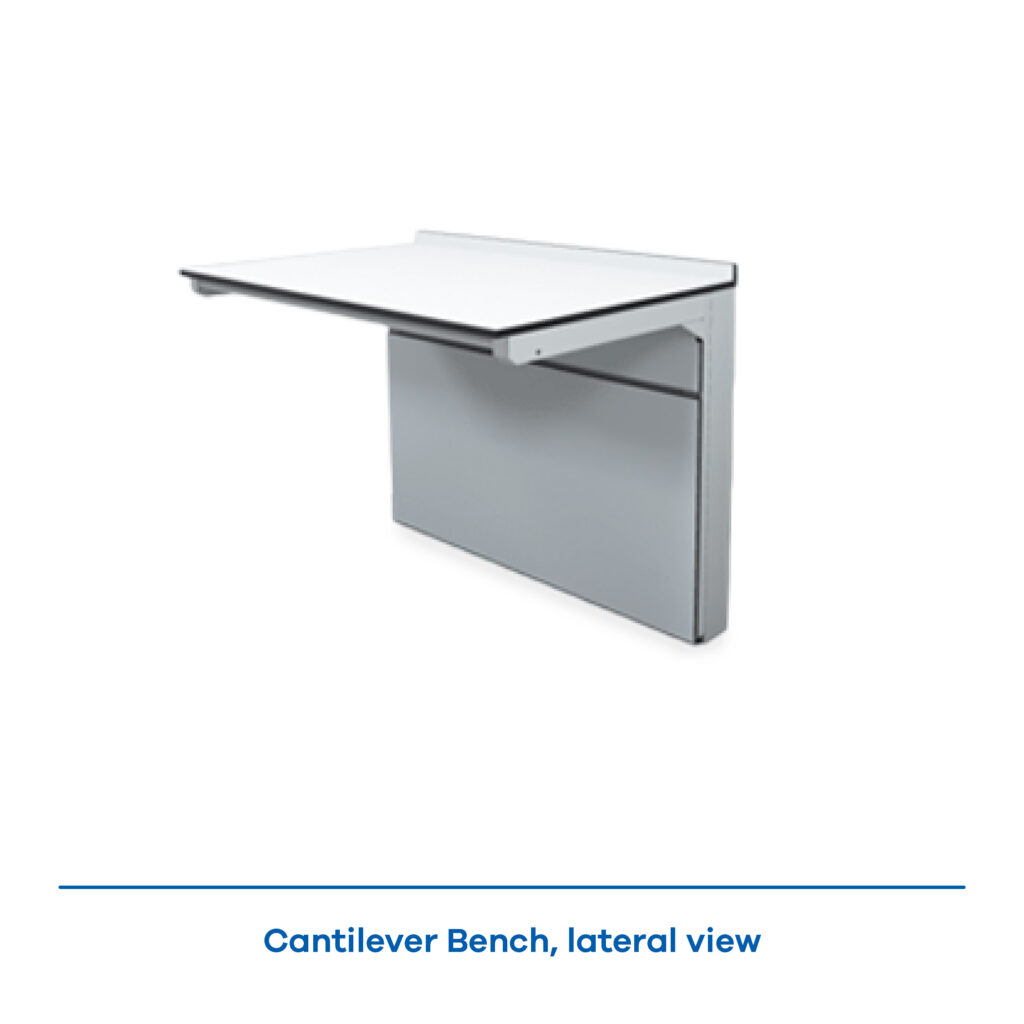

CANTILEVER

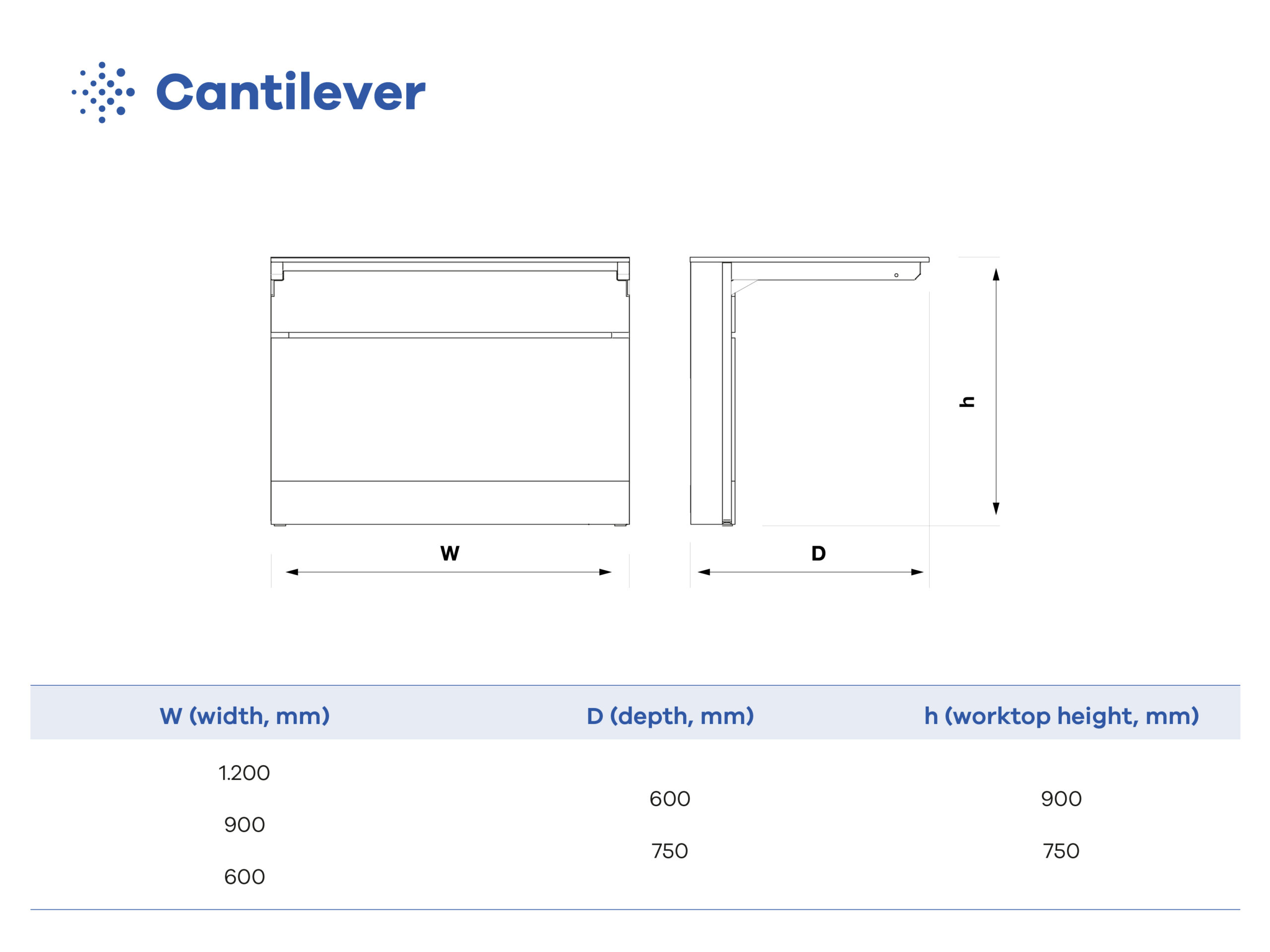

Product specifications
Choose from a range of configurations, starting with a customized bench tailored to your space.

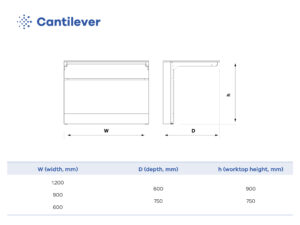

W (Width, mm)
1.200
900
600
D (Depth, mm)
600
750
–
h (Worktop height, mm)
900
750
–
⚠️ Max. load – 200 kg
- Check accesories pages to see underbench attachments options available.
- In addition, special accesory attachments can be designed and manufactured on demand.
- Panelling can be manufactured on HPL, melamine or metal.
- Main frame fully welded steel, epoxy coated 9010 (check other options) with M5 nuts below worktop for accesories and attachments.
- Worktop material on demand. Advised HPL 16 mm high chemical resistance.
- Feet, articulated with rubber base.

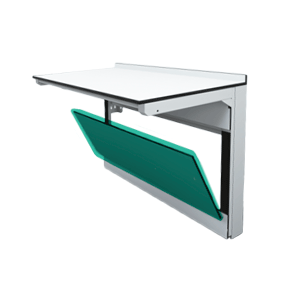

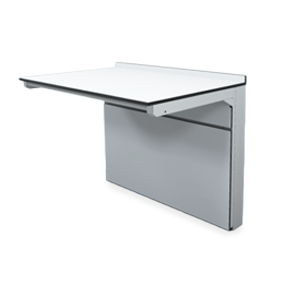

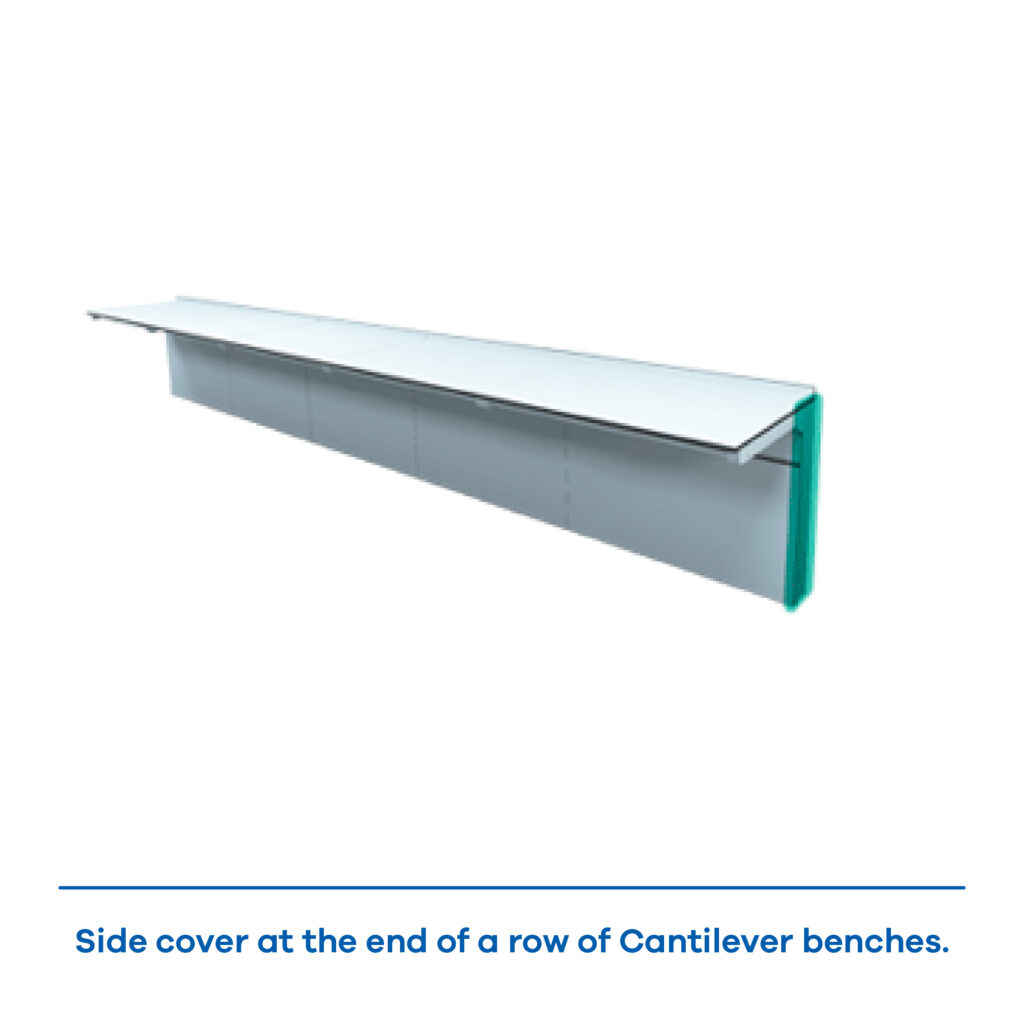

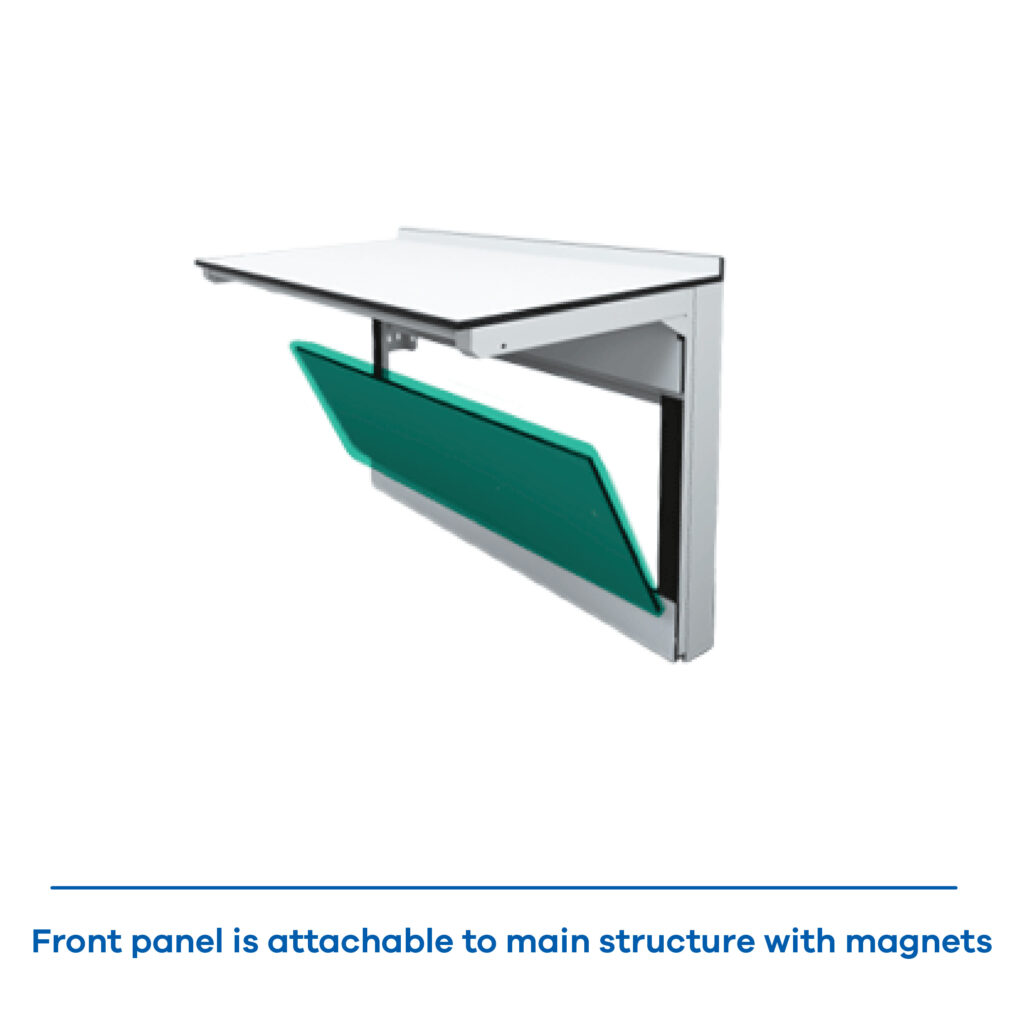

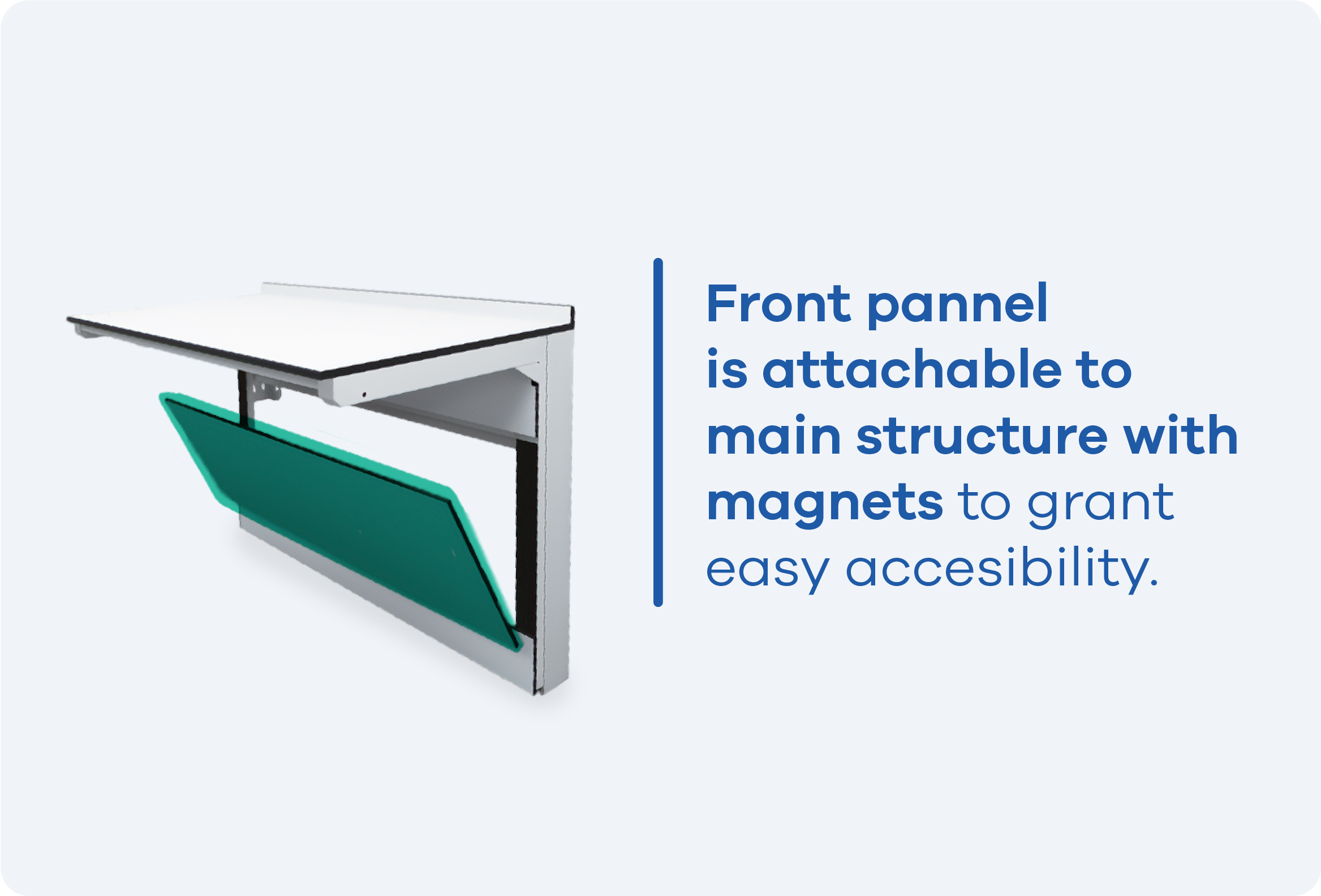

- Panelling on demand (HPL, melamine, metal sheet). Fixed panelling bolted to main structure. Accesible panelling magnet attached to main structure.
- Wall bracket should be attached to wall with x3 plugs min. 200 kg pulling force each, or similar means depending on wall material.
Main frame built with thin and stylish tubing, keeping aesthetics compatibility with IBR workstations.

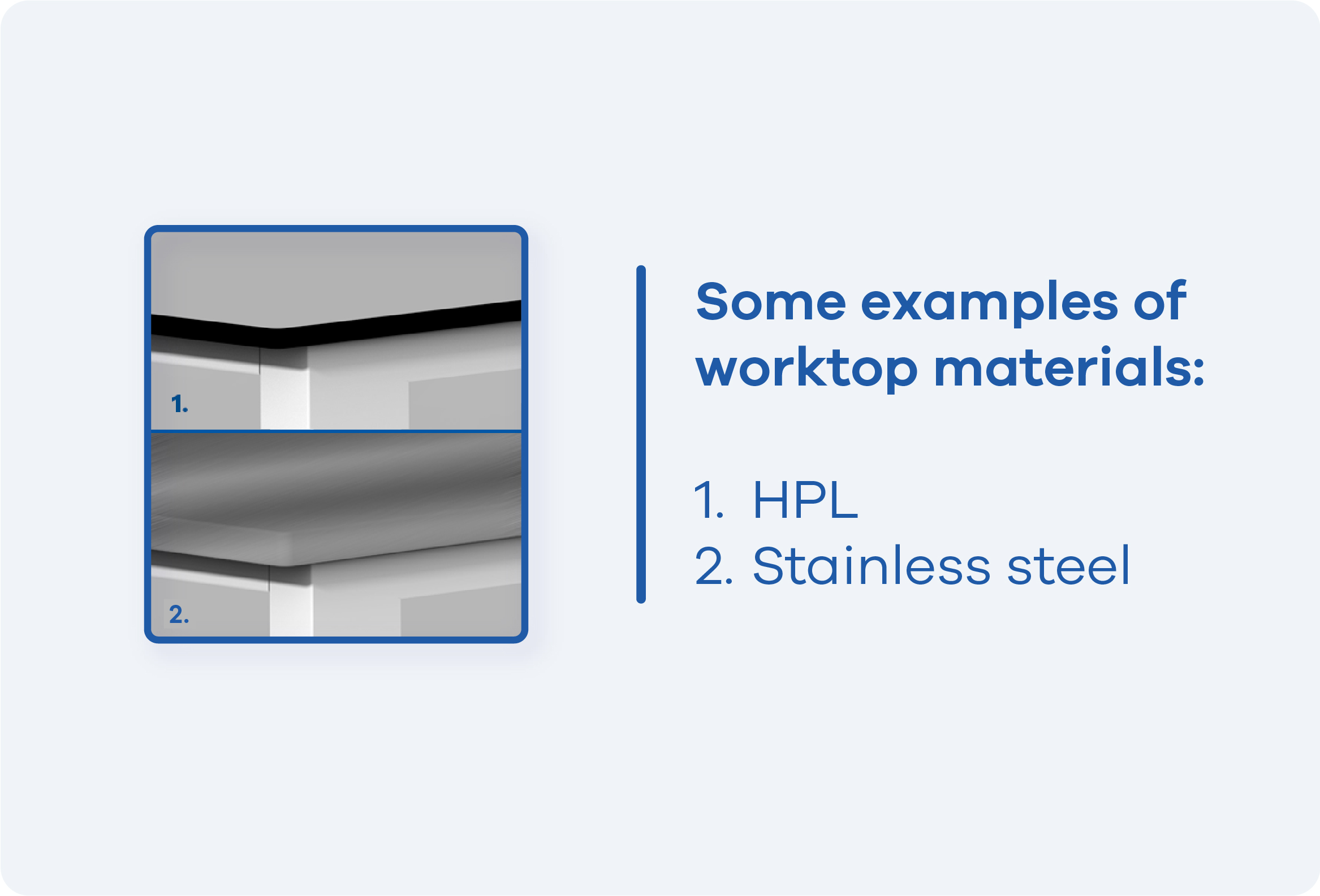

Some examples of worktop materials:
1. HPL
2. Stainless steel

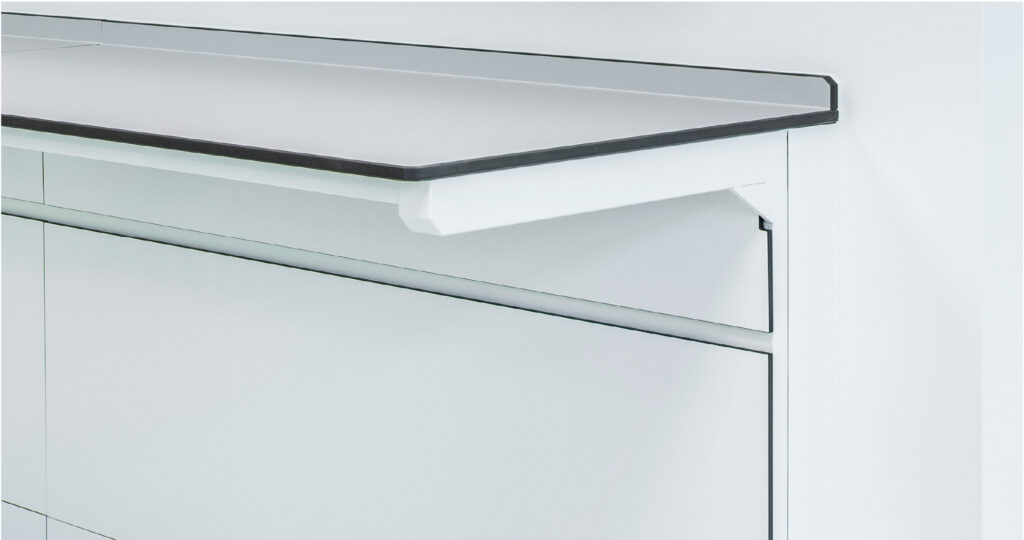

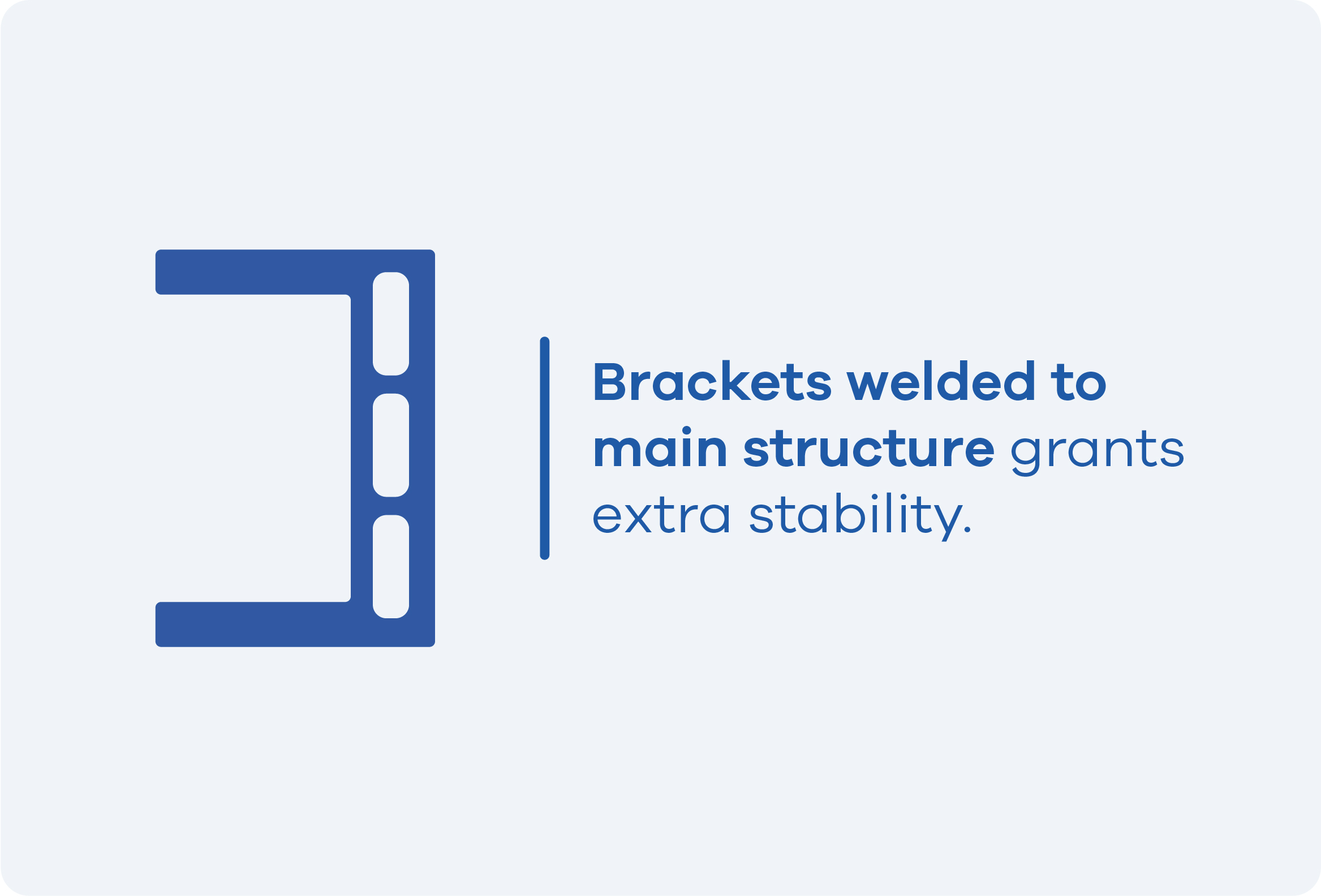

Brackets welded to main structure grants extra stability.
(x12) M5 nuts provided below worktop, in pairs distanced 95 mm between axis (distance between pairs depends on bench size).
Room for piping.
Contact us at:
hello@ibr-innovasystem.com
for any special configuration or in case you need a specific type of accesory.
