BENCH

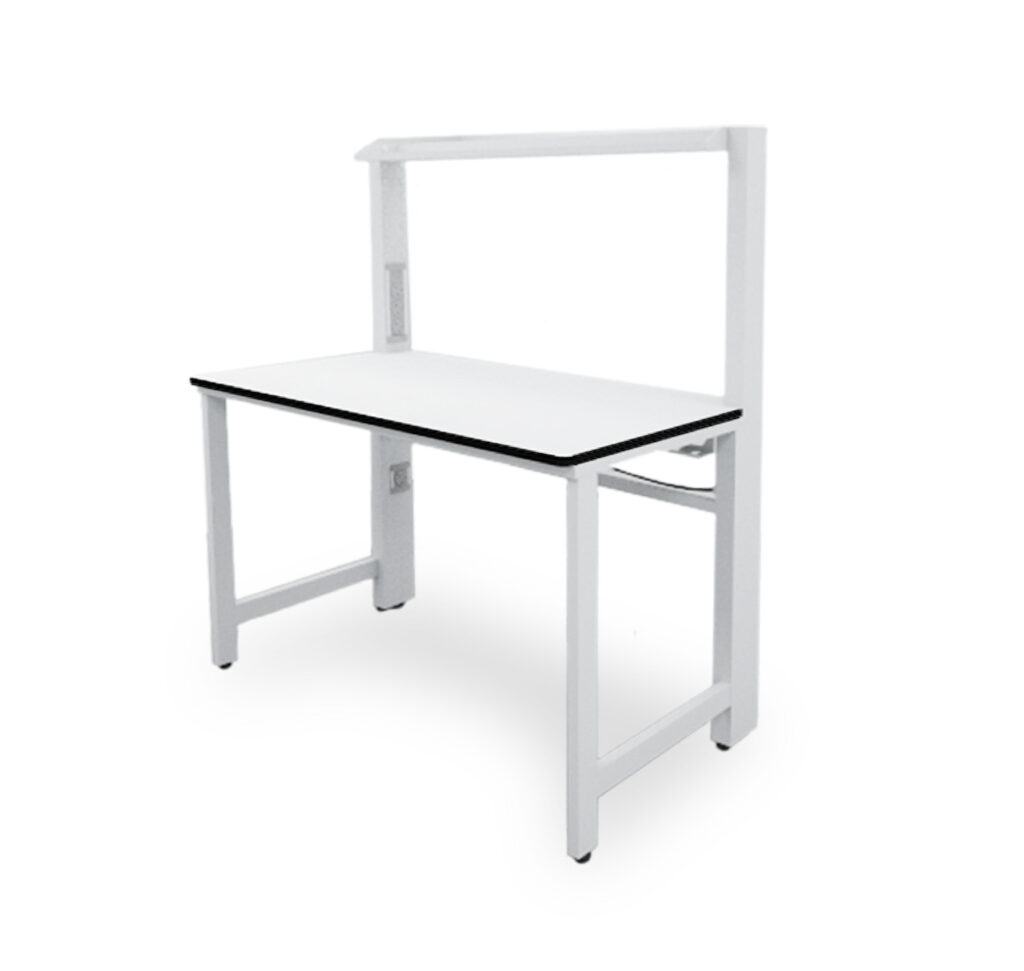

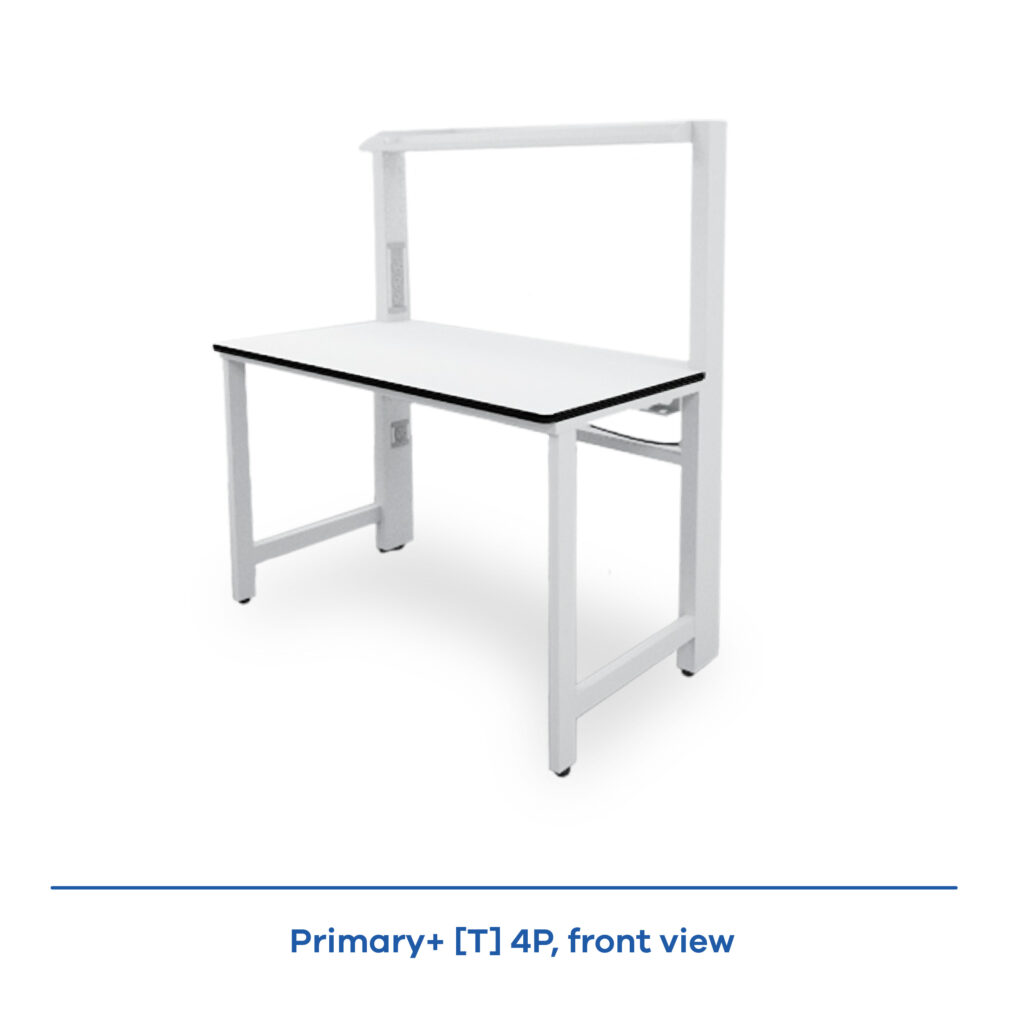

PRIMARY+ [T] 4P

Primary+[T]4P_img1
Primary+[T]4P_img2
Primary+[T]4P_img2.1
Primary+[T]4P_img3
Primary+[T]4P_img3.1
Primary+[T]4P_img4
Primary+[T]4P_img4.1
Primary+[T]4P_img5
Primary+[T]4P_img5.1

Product specifications

Choose from a range of configurations, starting with a customized bench tailored to your space.

• 1.800 mm
• 2.100 mm
• 2.400 mm

• 600 mm
• 750 mm
• 900 mm

• 900 mm
• 750 mm

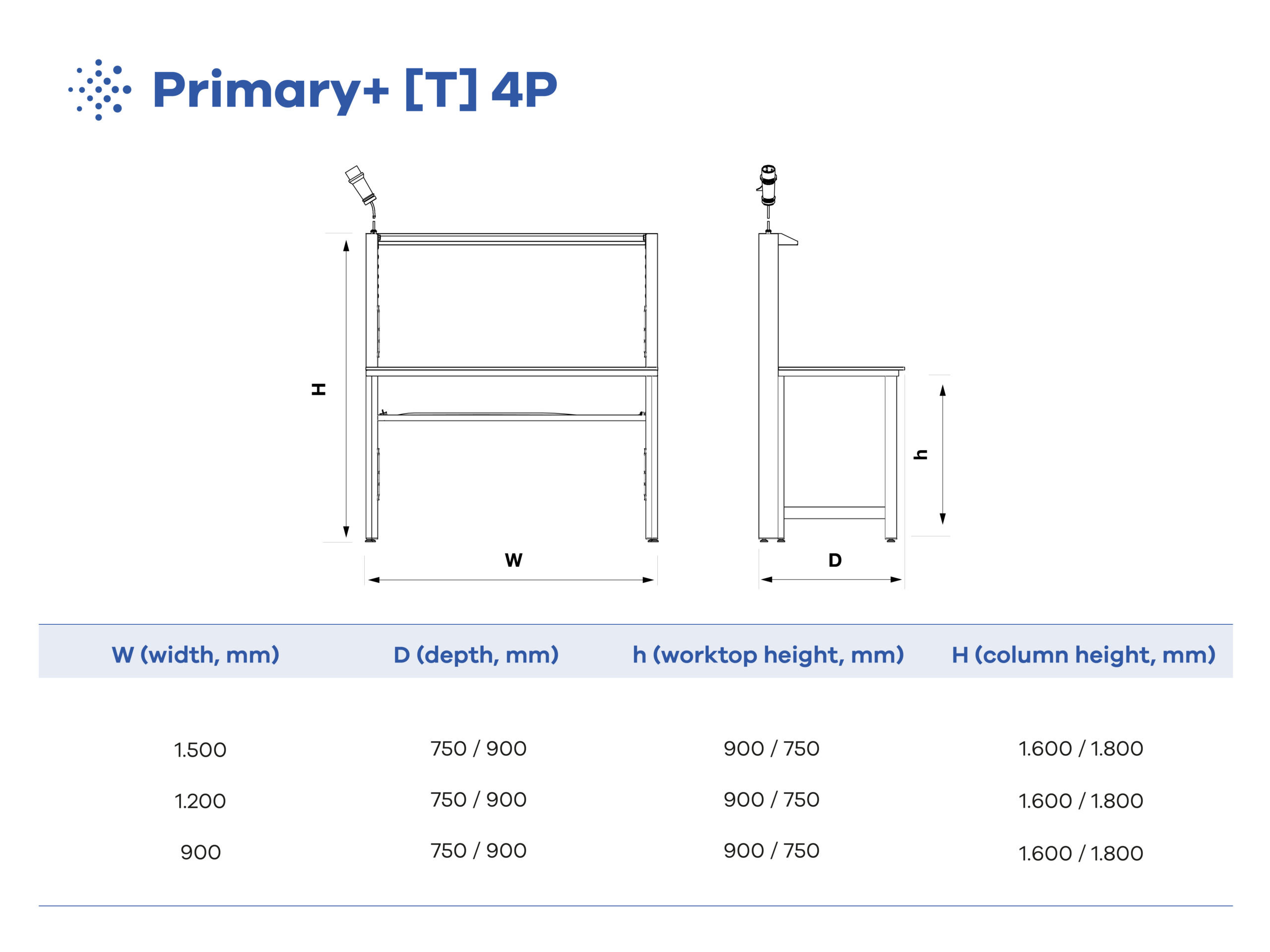

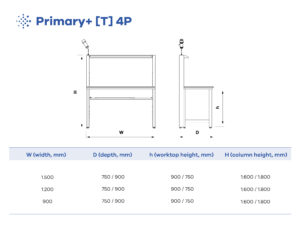

Click to view technical sheet detail

Max. recommended load - 350 kg

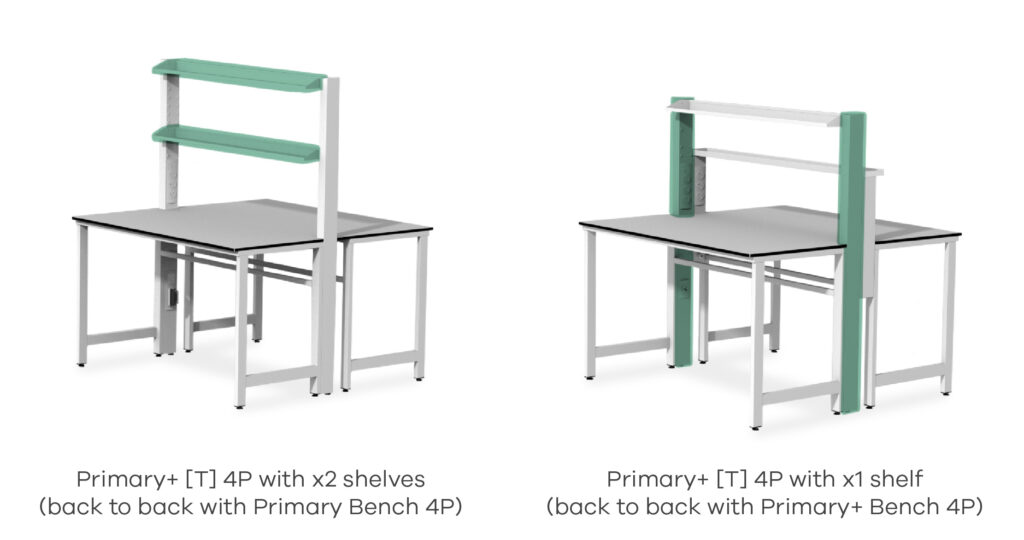

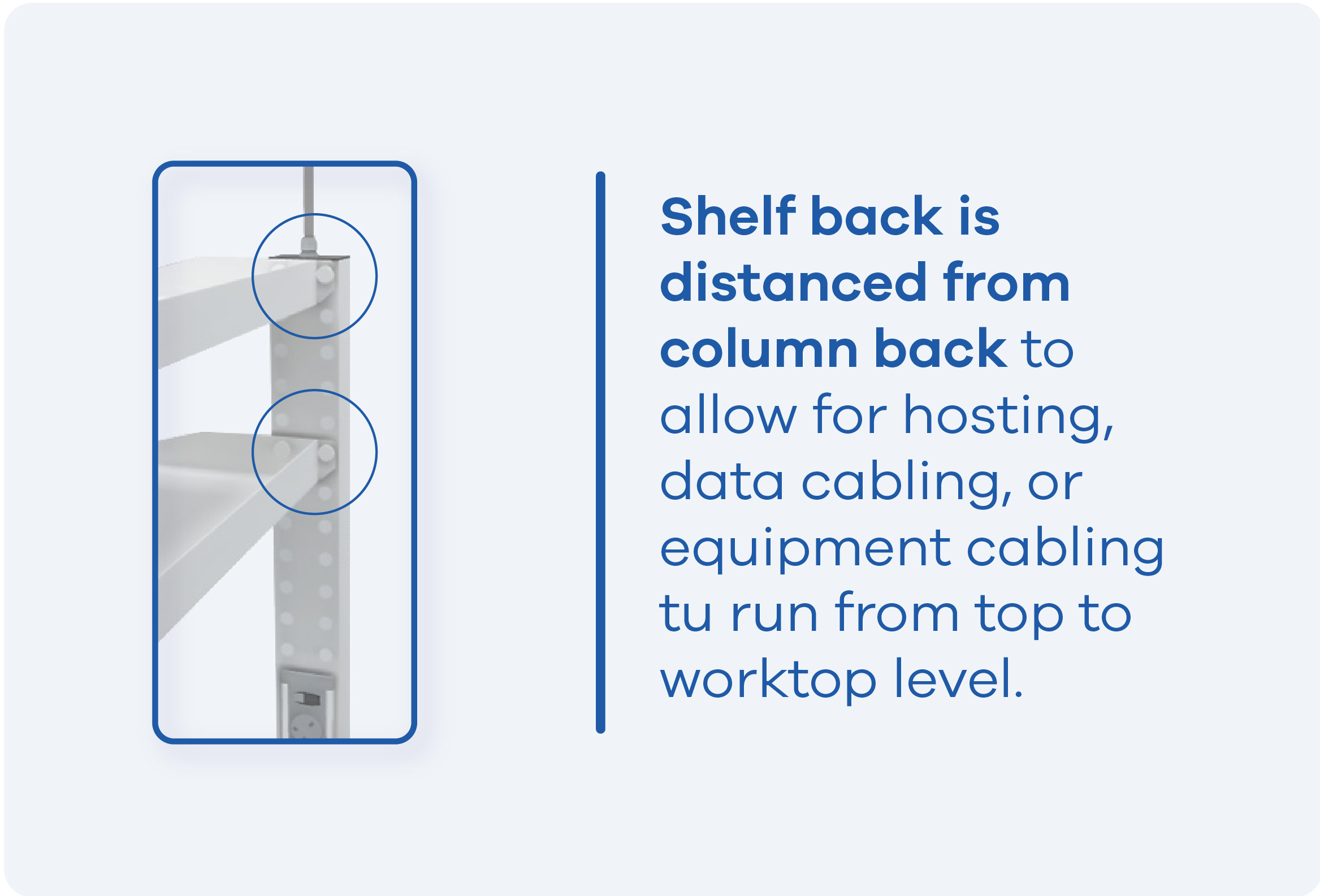

  • Power supply side can be switched left to right and viceversa. Check accesories pages to see how shelves can be added, removed and changed position.

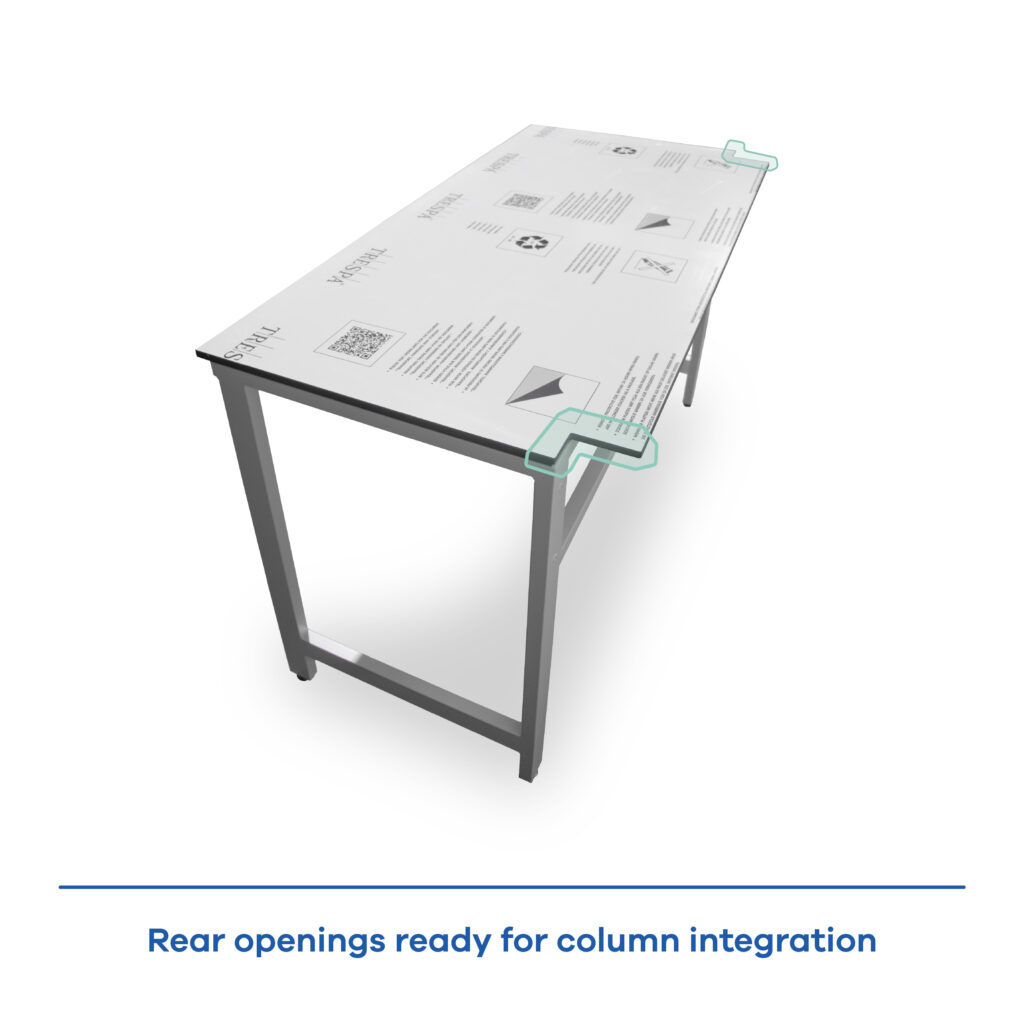

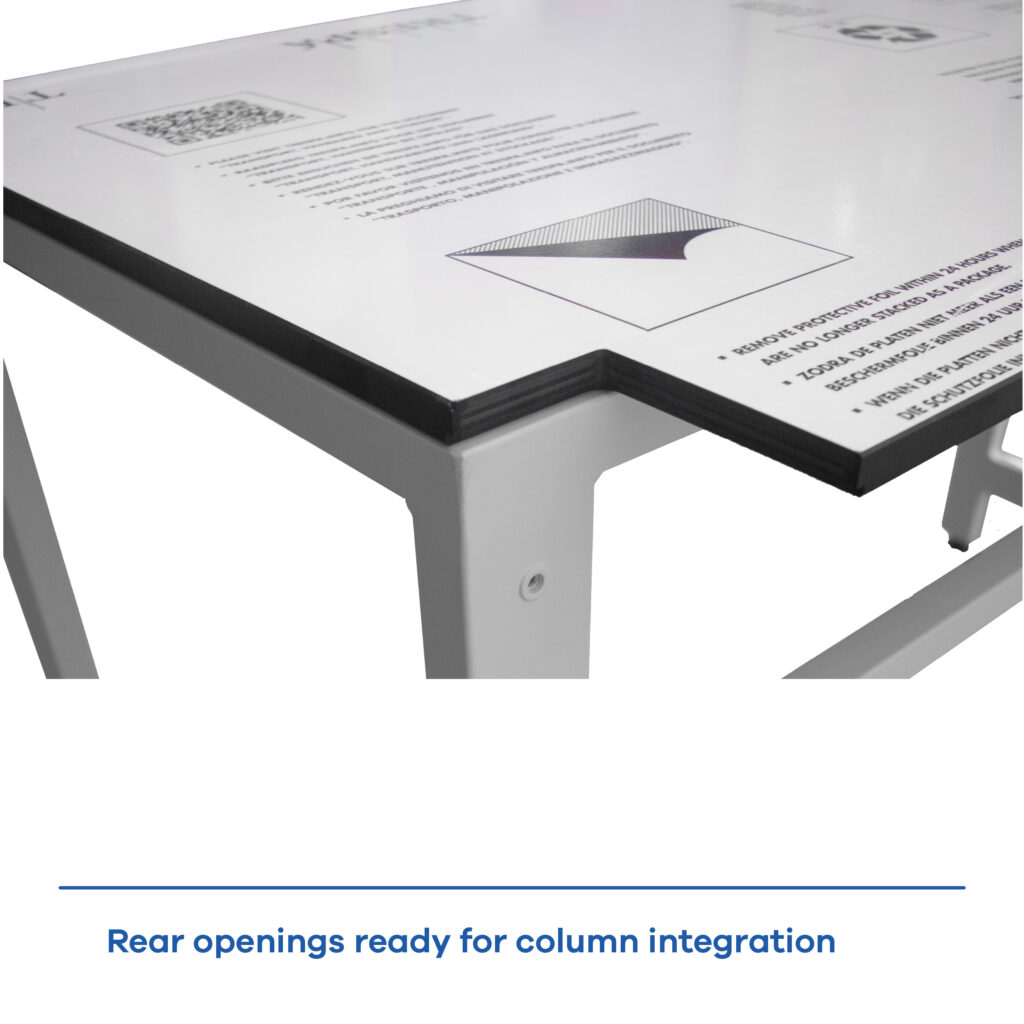

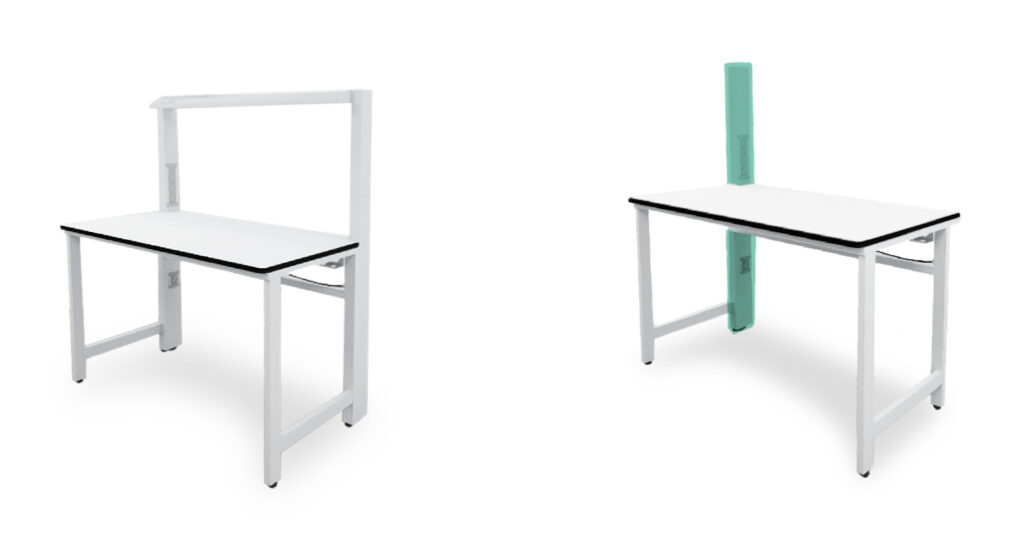

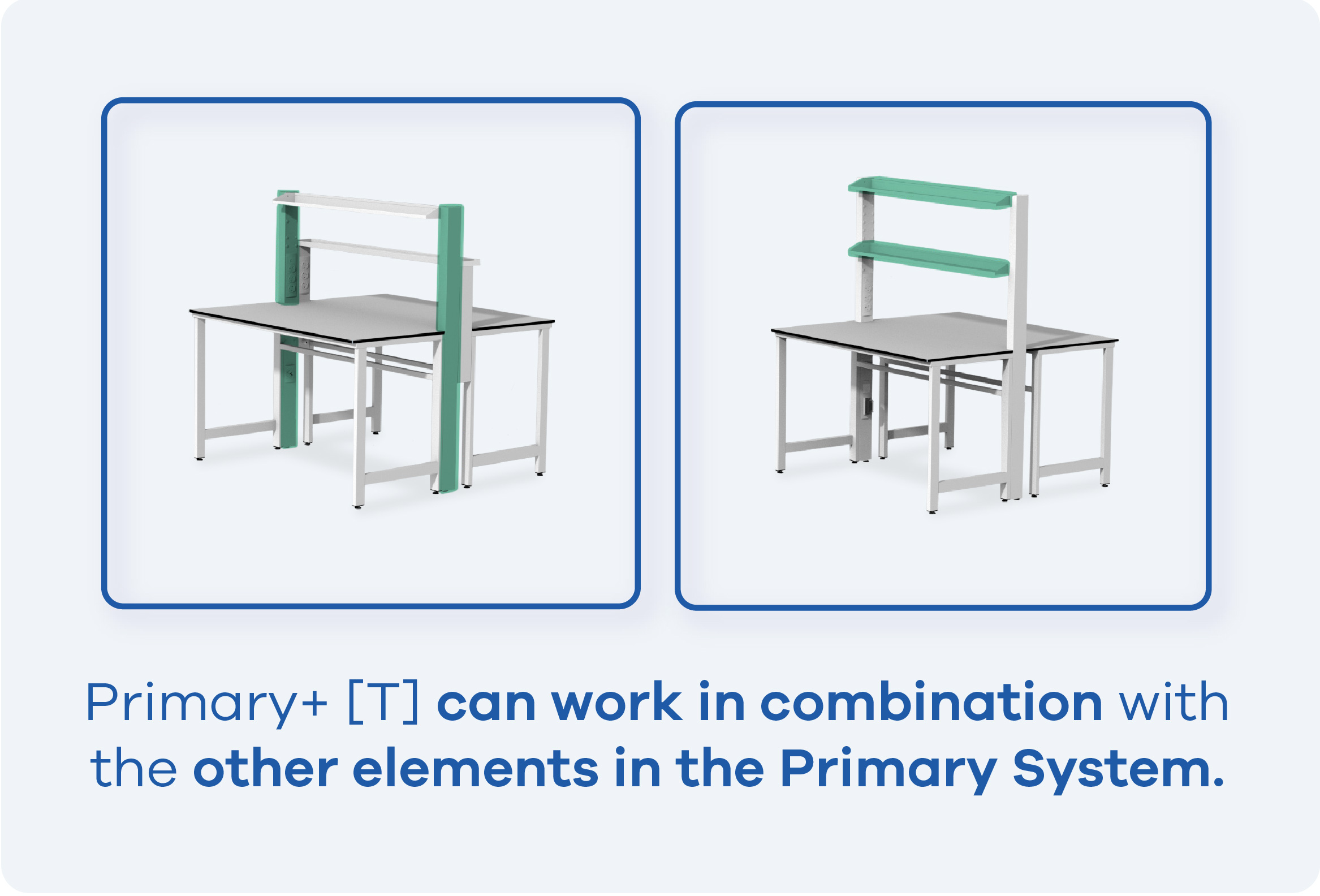

  • Primary Bench+ [T] 4P can always be built from a Primary Bench by adding the columns attachment and changing the worktop.

  • Gas taps can be attached to column.

  • Some other options available.
  • In addition, special accesory attachments can be design
    and manufatured on demand.

  • Main frame fully welded steel, epoxy coated 9010 (check other options) with M5 nuts below worktop (back beam) and M6 at back legs for accesories
    and attachments.

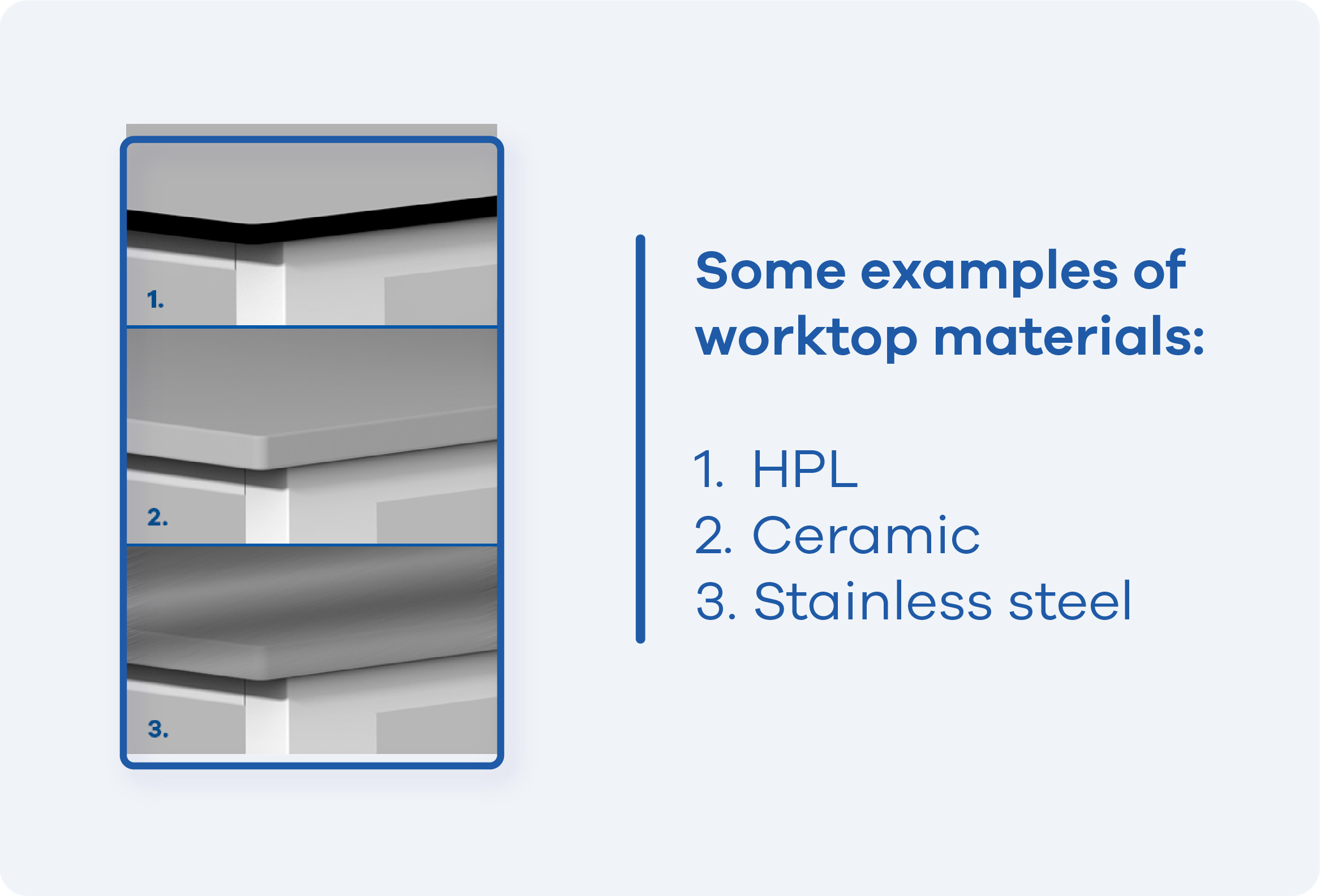

  • Worktop material on demand. Advised
    HPL 16 mm high chemical resistance.

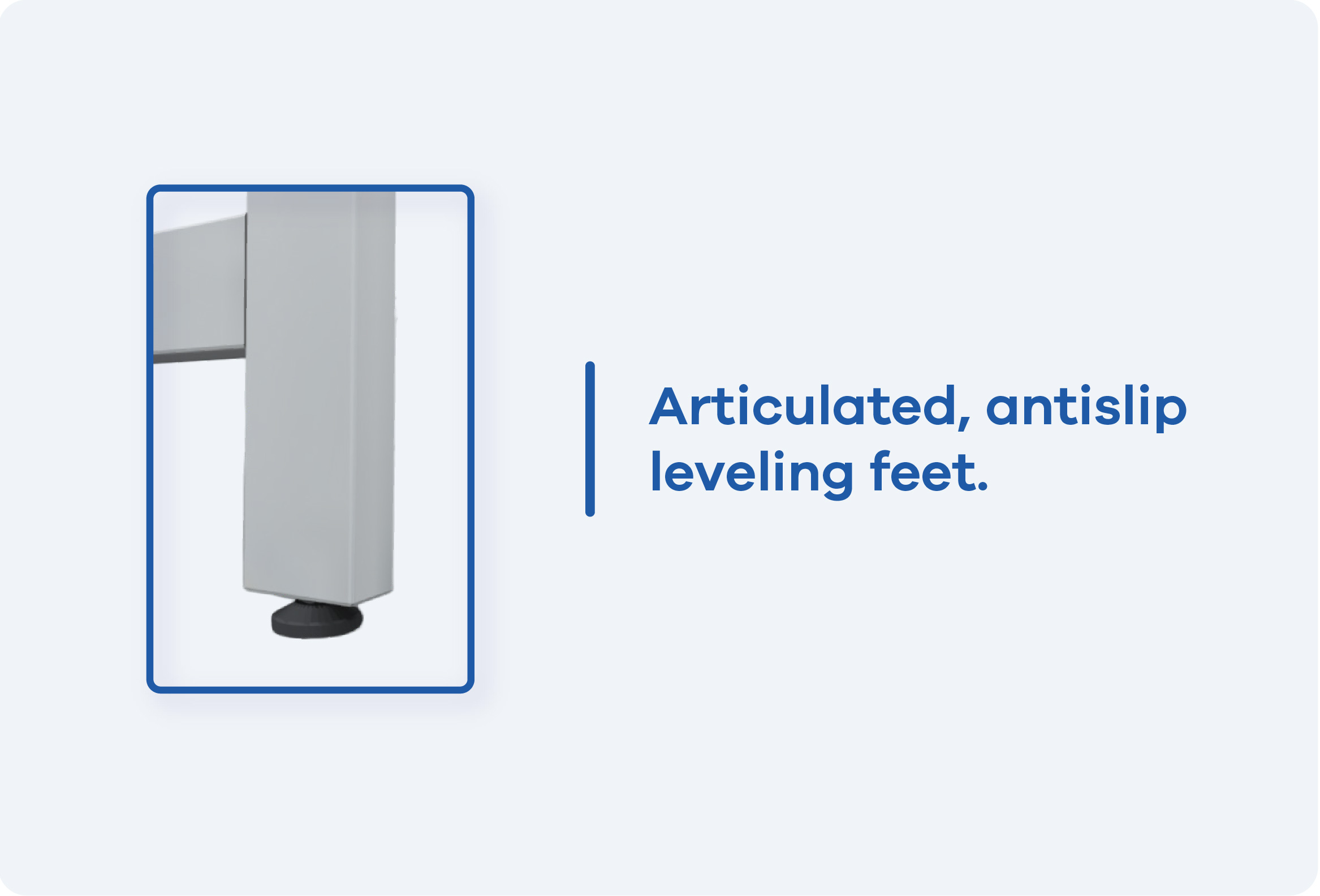

  • Feet, articulated with rubber base.

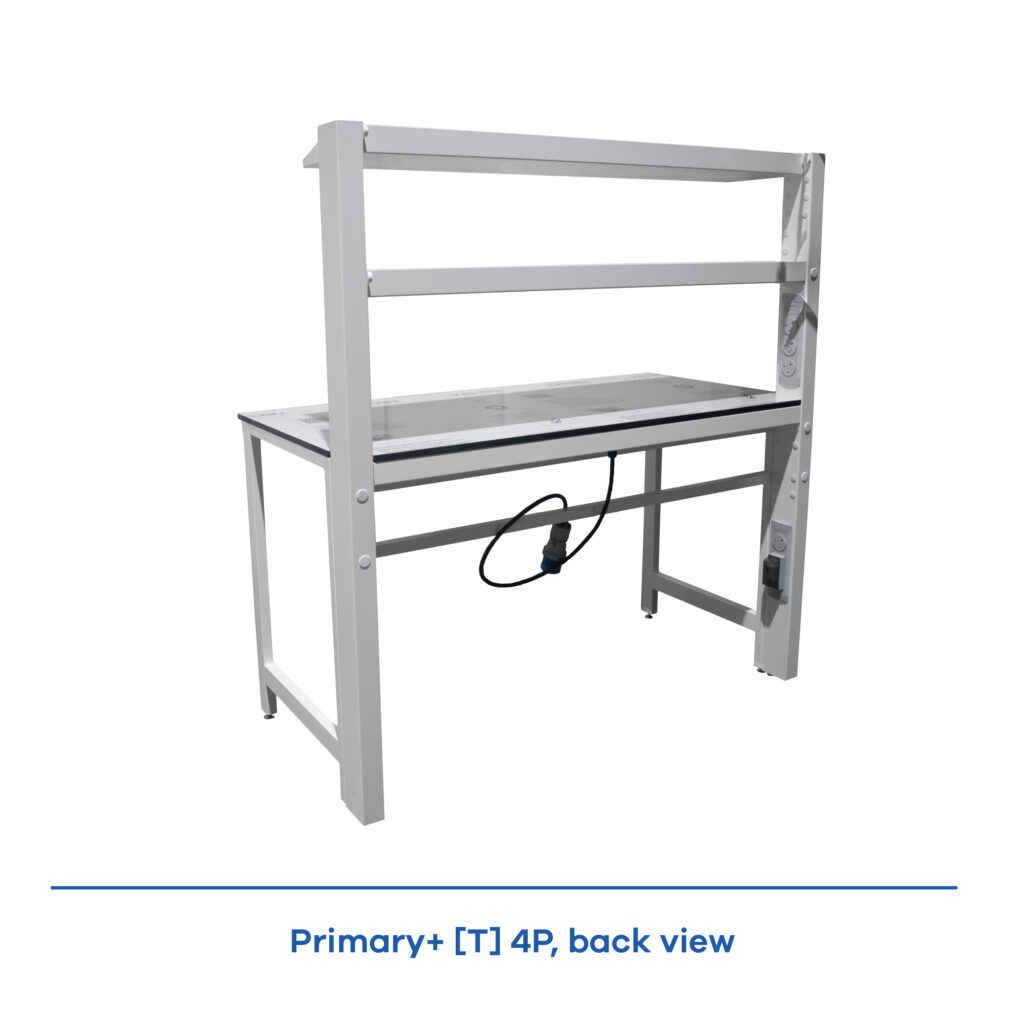

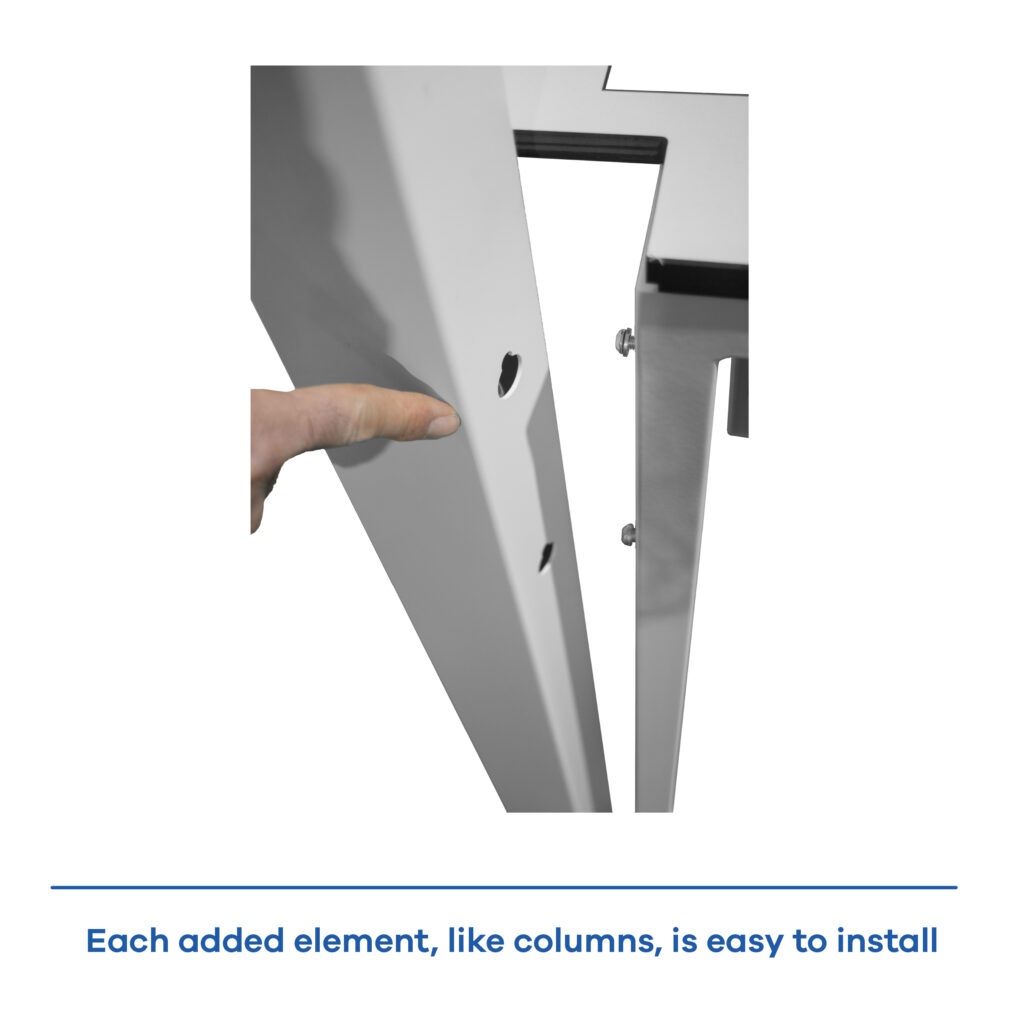

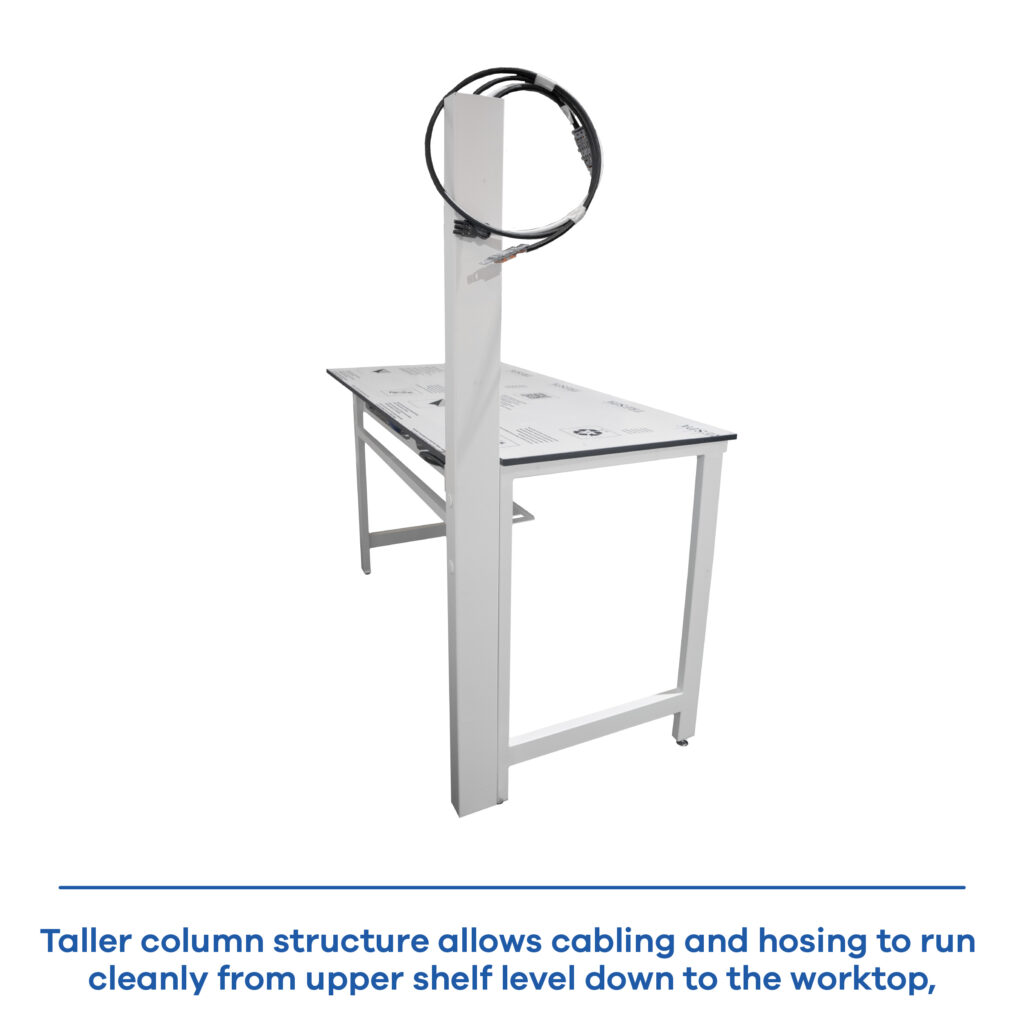

  • Bolted (detachable) set of electrical columns
    main body welded steel, epoxy coated 9010
    (check other options).

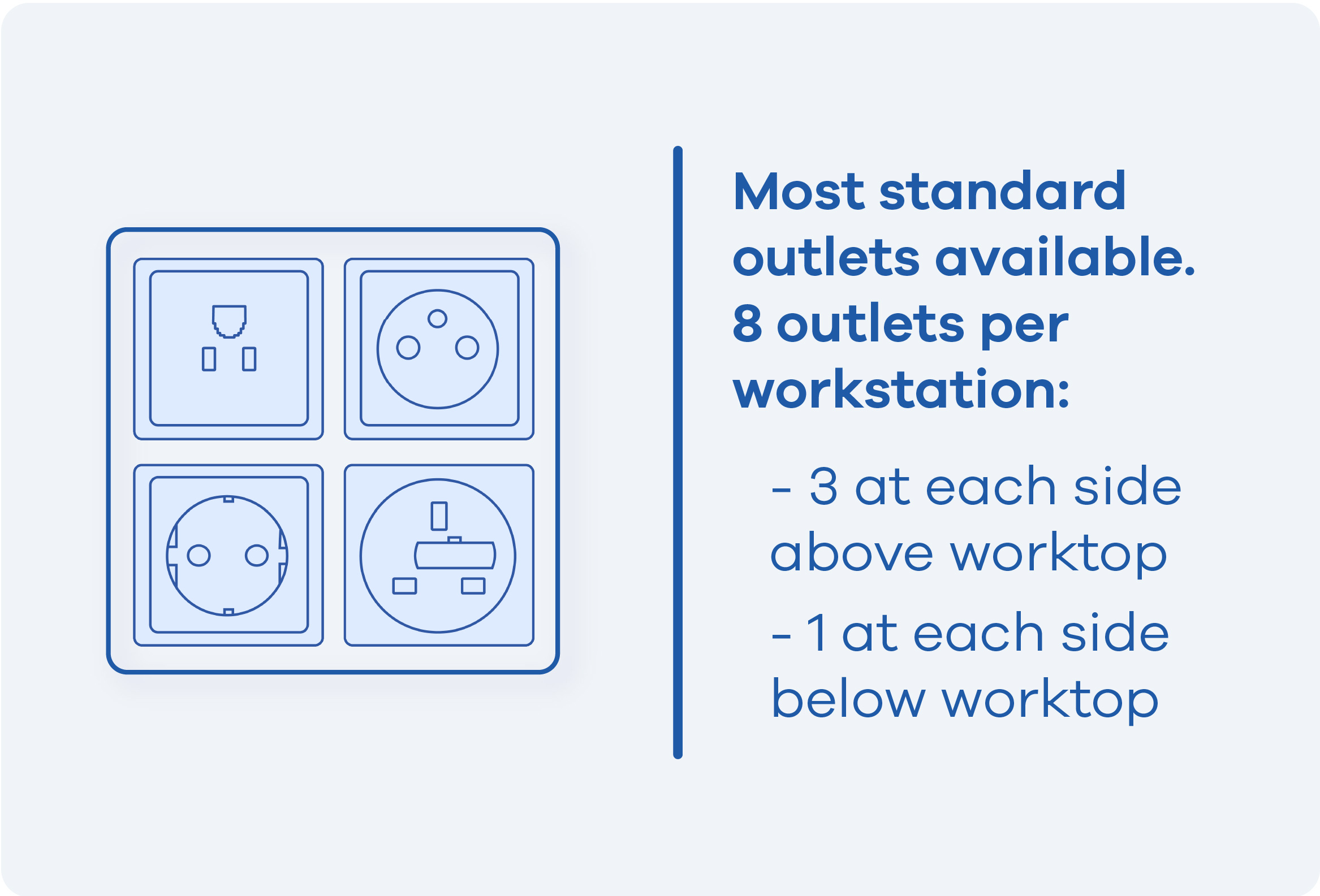

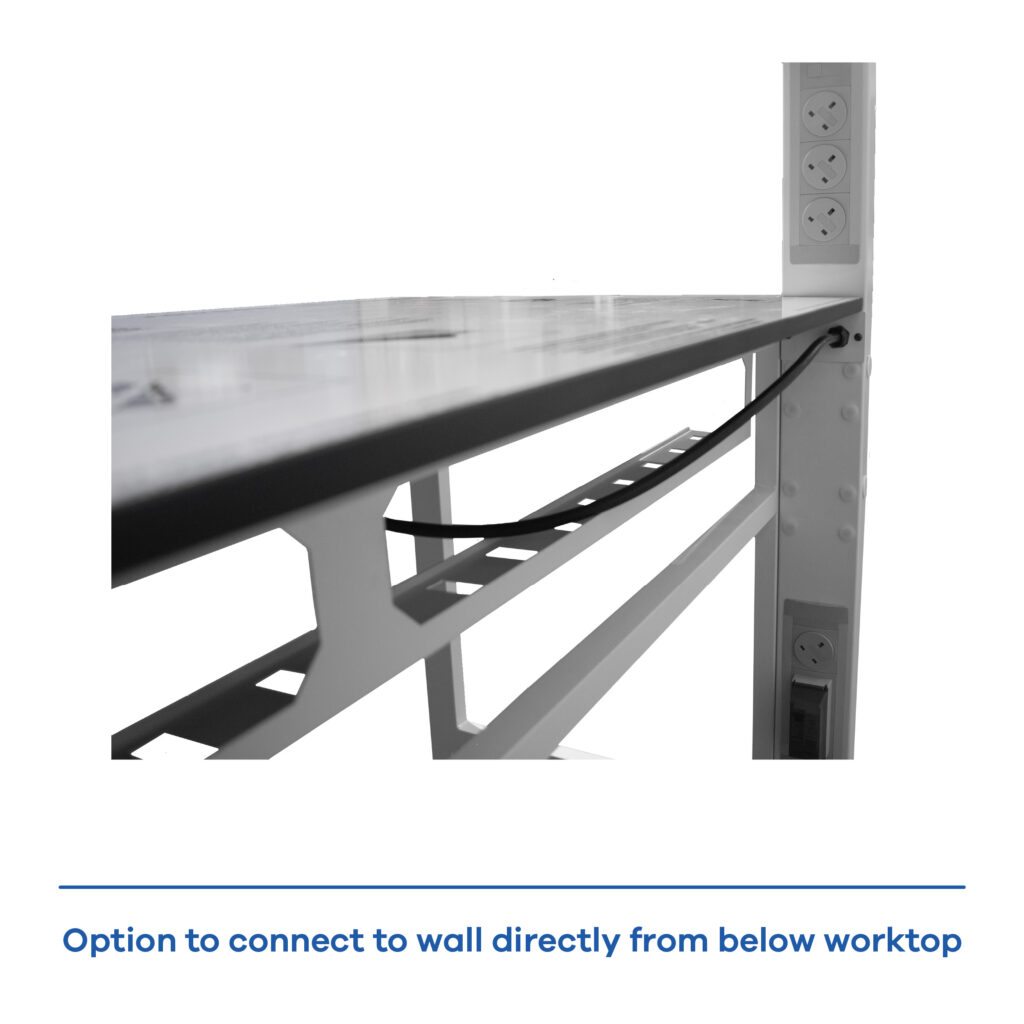

  • Electrical setup: 8 power sockets installed (3 each
    side above worktop, 1 each side below worktop).

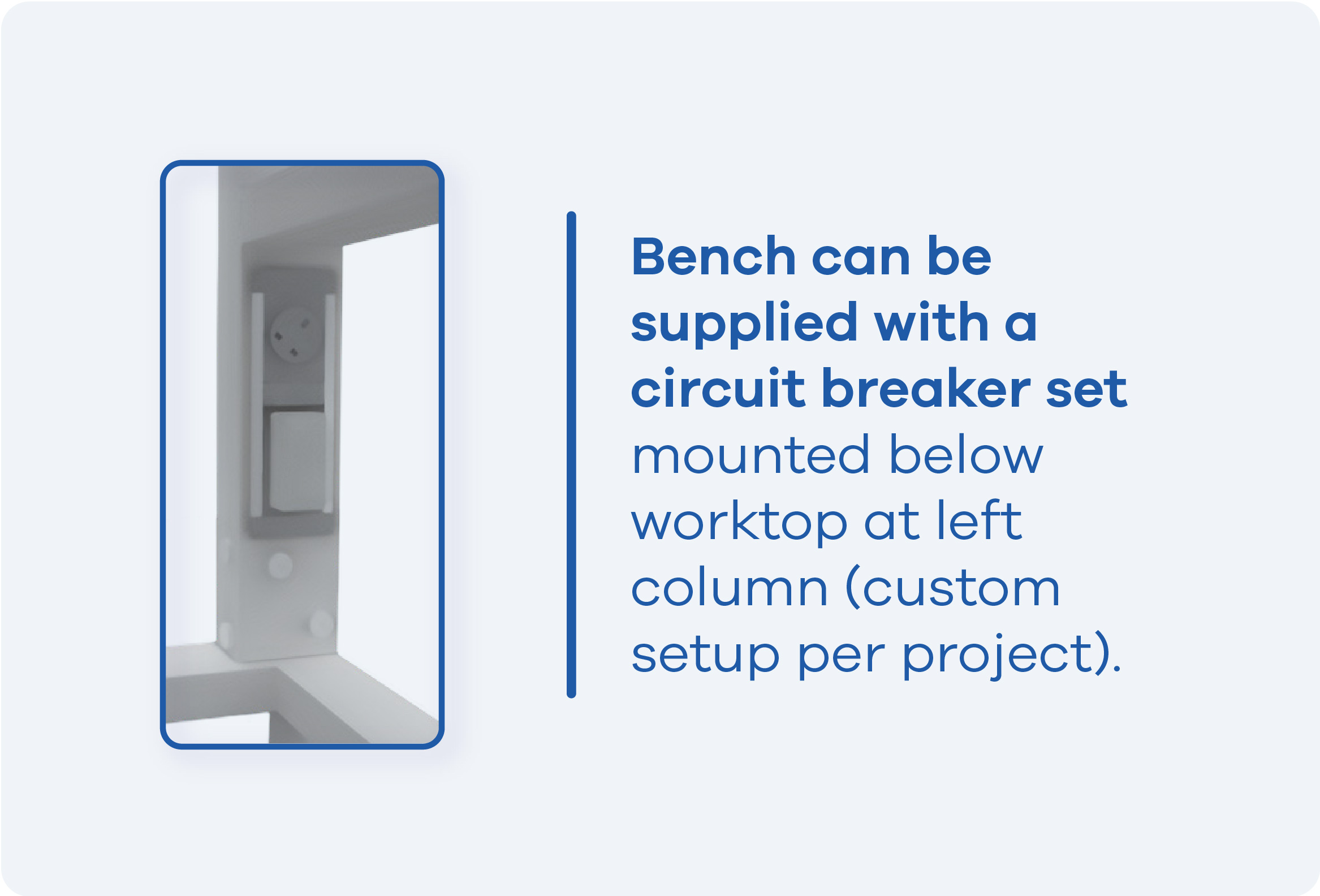

  • Circuit breaker setup on demand.

  • Data setup on demand, advised to be
    magnet clip-routed.

Contact us at:

hello@ibr-innovasystem.com

for any special configuration or in case you need a specific type of accesory.
